Wall Mount, Swing Down Eye-Face Wash Station
S0660 Series - Wall Mount, Swing Down Eye Wash
Wall Mount, Swing Down Eye Wash Station

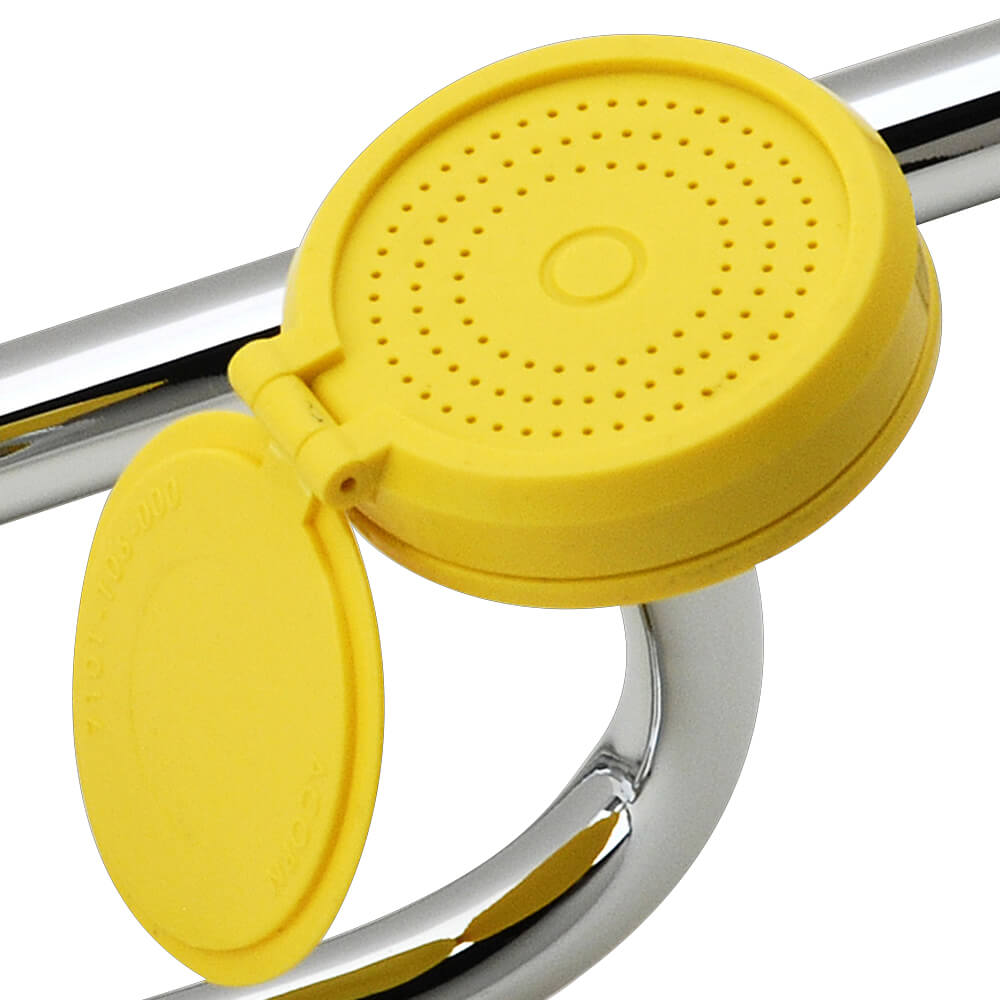

Wall Mount, Swing Down Eye Wash Spray Head Close-up
S0660 Series - Wall Mount, Swing Down Eye Wash
Wall Mount, Swing Down Eye Wash Station
Wall Mount, Swing Down Eye Wash Spray Head Close-up

Wall Mount, Swing Down Eye-Face Wash Station

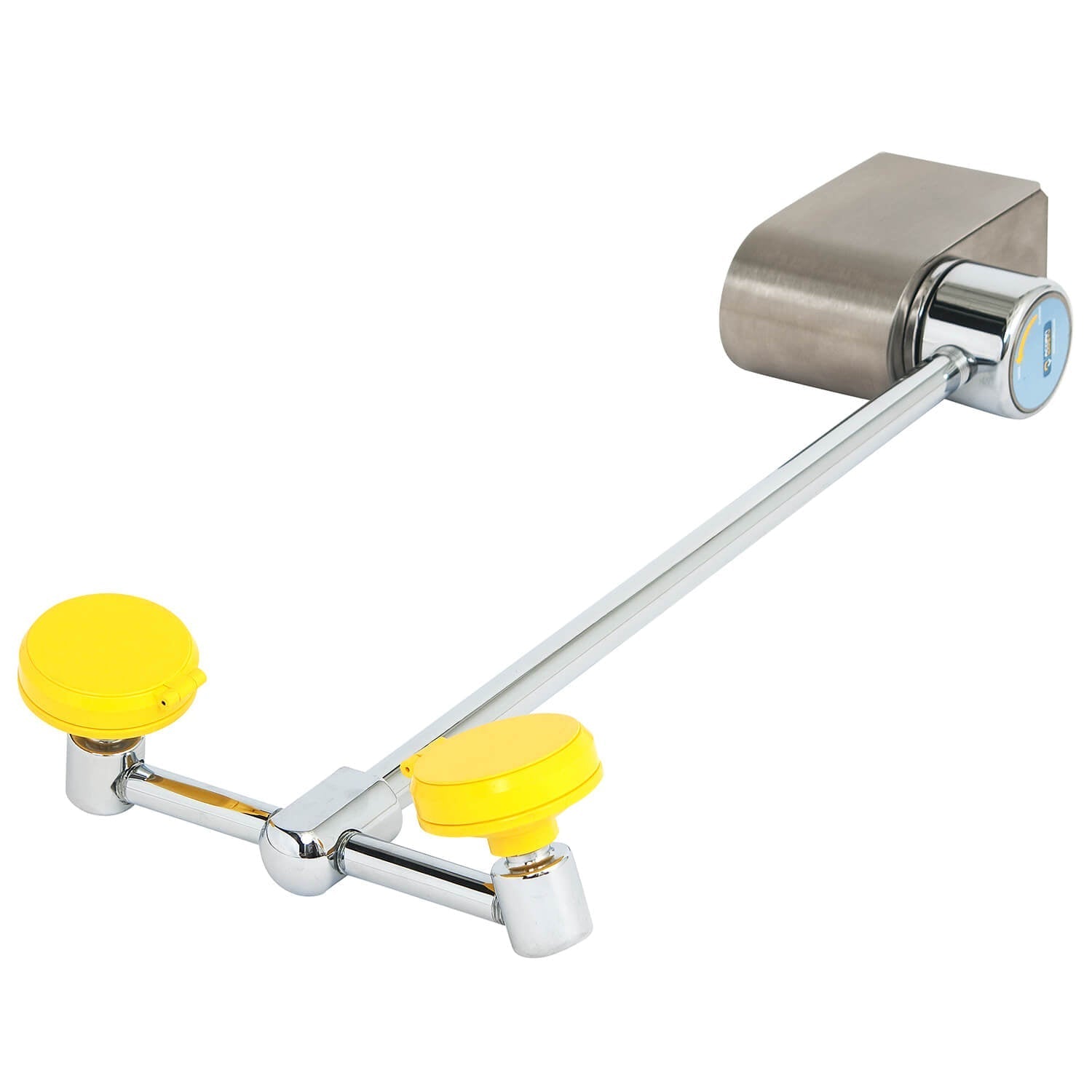

MODEL: S0660-RH
Orientation
/

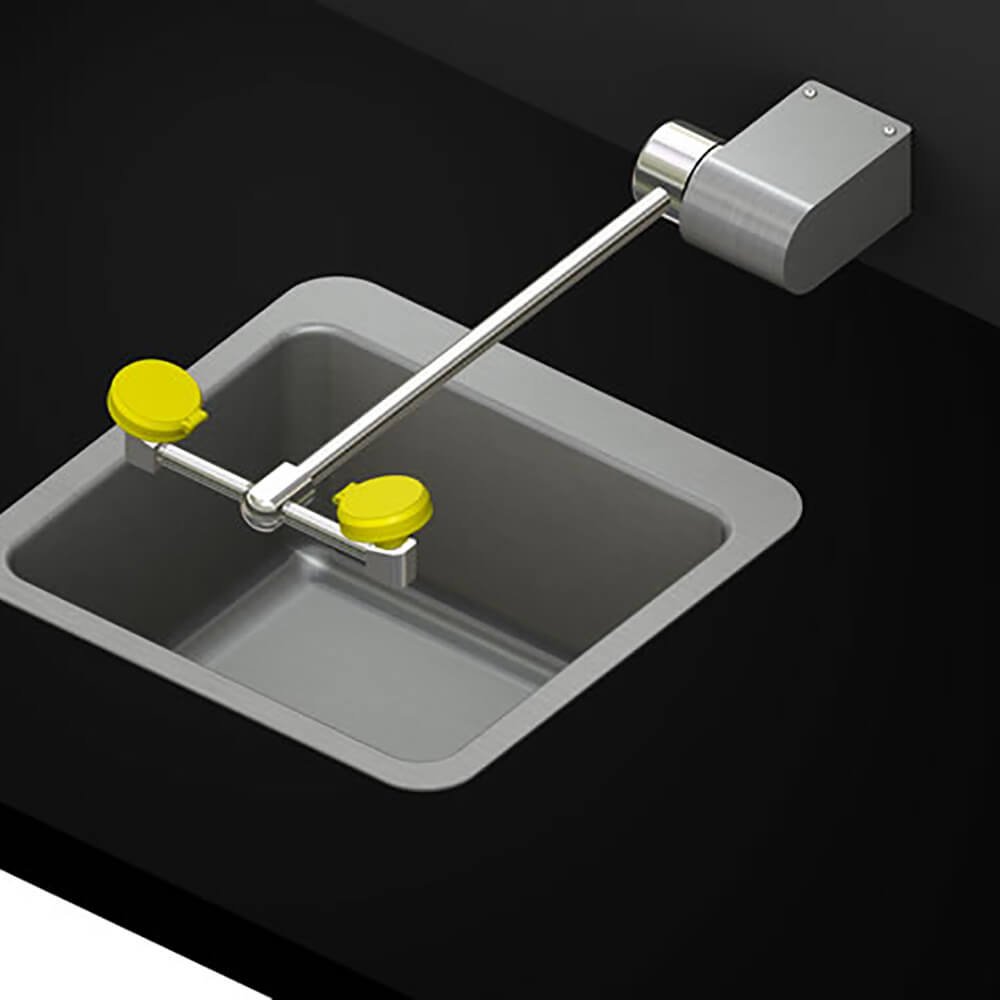

Model S0660 Series is a wall-mounted, swing-down face and eye wash installed behind the sink (sink not included). The eye-face wash swings down over the sink from the rear and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: Swing-down valve is mounted behind the sink on the wall and has a 50 mesh inline strainer.

Water Supply: 1/2" NPT female threaded brass inlet.

Mounting: Wall mounted, 304 stainless steel valve housing.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Sink and Counter: The sink and counter ARE NOT provided.

Shipping calculated at checkout.

Additional Info

TYPE OF MOUNT: Recessed Control Wall Cabinet
Submittal S0660 Eye-Face Wash (pdf) Submittal S0660 Eye-Face Wash
Manual S0660, S0860 Eye-Face Wash (pdf) Manual S0660, S0860 Eye-Face Wash
S0660-RH Eye-Face Wash CAD Drawing (zip) S0660-RH Eye-Face Wash CAD Drawing
S0660-RH Eye-Face Wash Revit Drawing (rfa) S0660-RH Eye-Face Wash Revit Drawing
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
Acorn Safety Kwik Ship® Visual Competitive Cross Reference (pdf) Acorn Safety vs Guardian, Haws, Bradley [S1320, S1340, S1340-BF, S1340-CS1, S2340, S2340-BF, S2340-AS, S2340-AS-BF, SO706, S0406, S1200, S2100, S0P50, S0320, S0340, S0420, S0440, S0A60, S0660, S0960]
