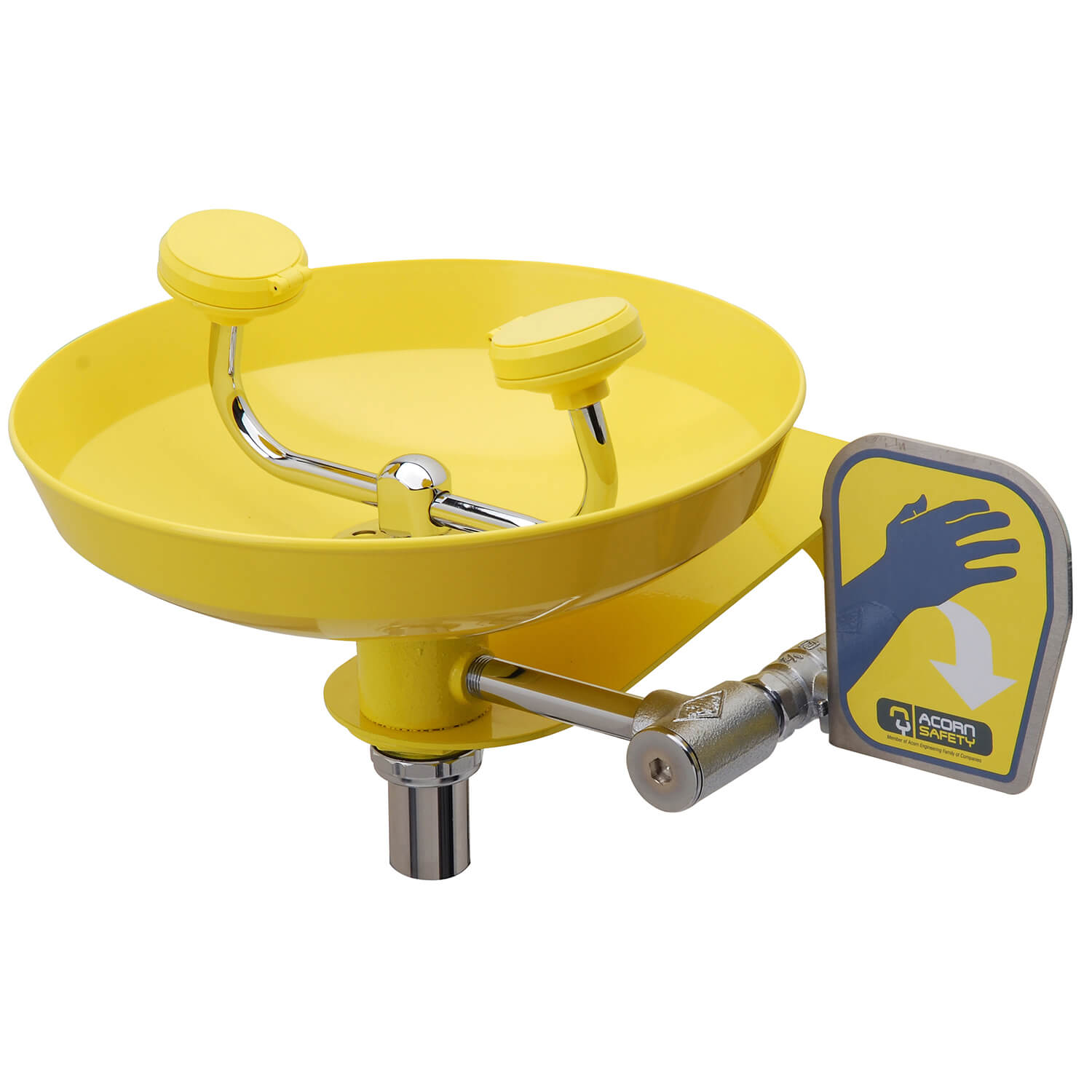

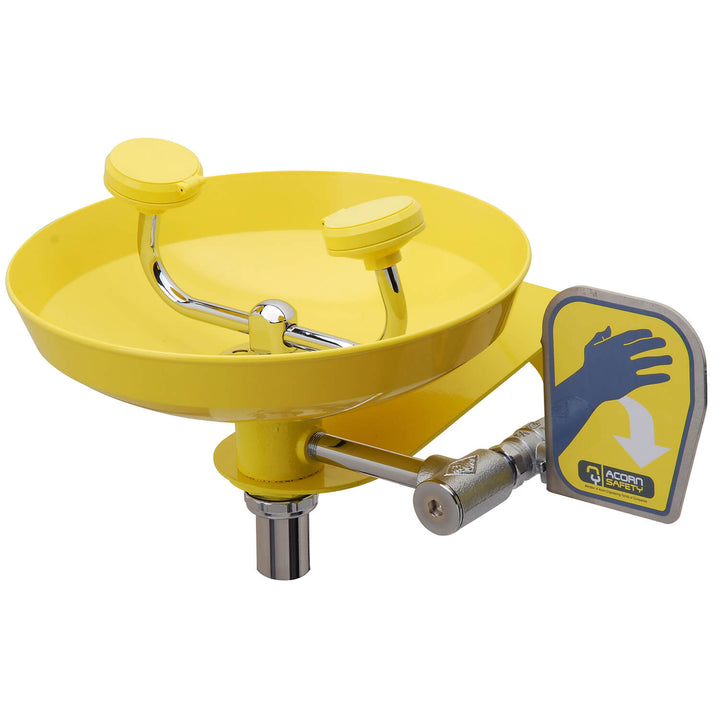

Acorn Safety S0420 - Plastic Bowl, Wall Mount Eye Wash Station

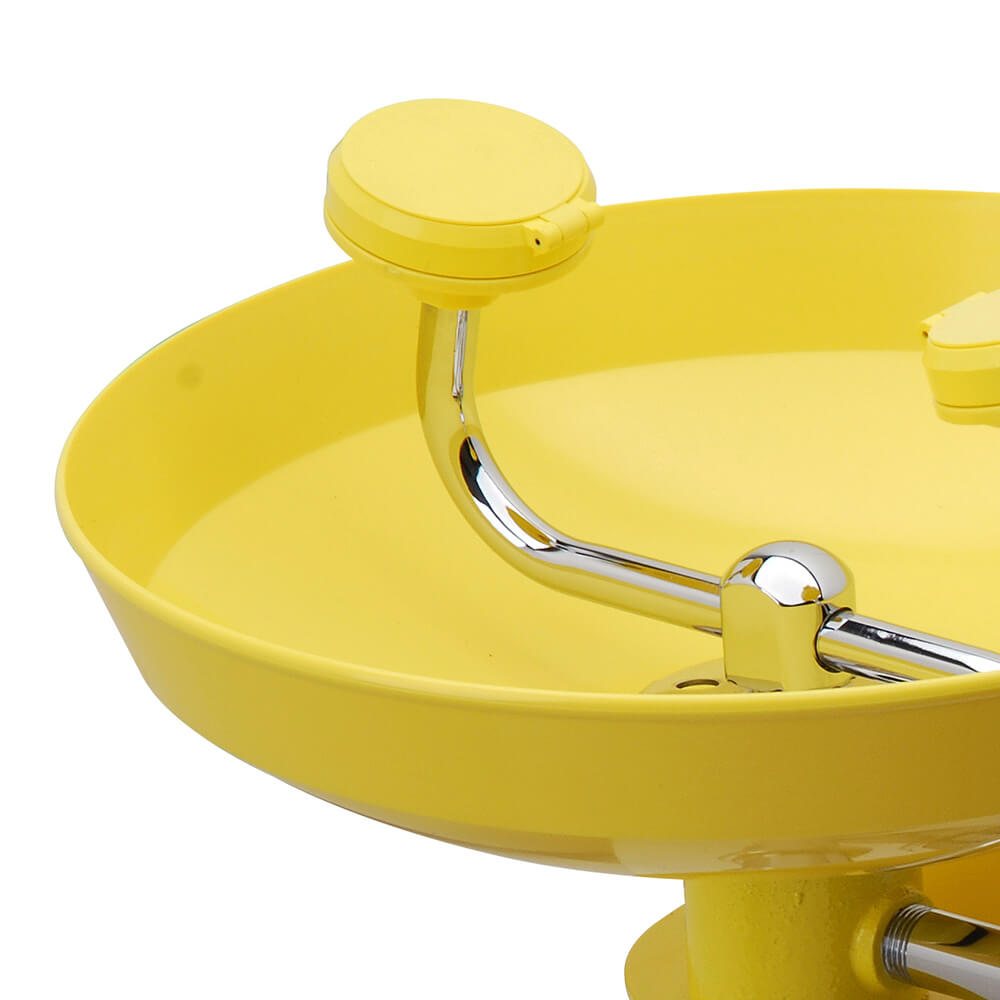

S0420 Plastic Bowl, Wall Mount Eye-Face Wash Bowl Close-up

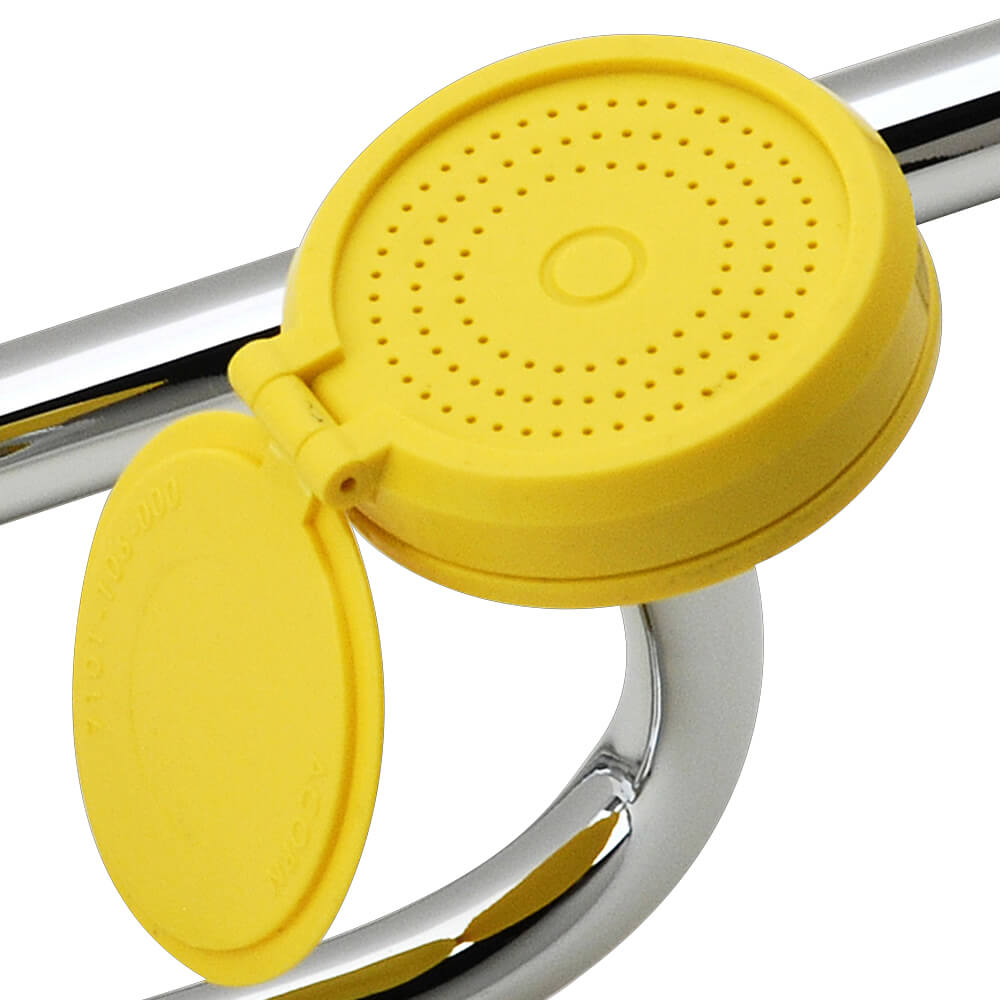

S0420 Plastic Bowl, Wall Mount Eye-Face Wash Spray Head Close-up
Acorn Safety S0420 - Plastic Bowl, Wall Mount Eye Wash Station
S0420 Plastic Bowl, Wall Mount Eye-Face Wash Bowl Close-up
S0420 Plastic Bowl, Wall Mount Eye-Face Wash Spray Head Close-up

Plastic Bowl, Wall Mount Eye-Face Wash Station

SKU: S0420
Price
Regular price $26180
Regular price Sale price $26180
Save $-261.80
/

S0420 is a wall-mounted face and eye wash with a plastic bowl, ABS plastic face/eye wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

  • Spray Head Assembly: ABS yellow plastic face and eye wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.
  • Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.
  • Water Supply: 1/2" NPT female threaded, chrome-plated brass inlet.
  • Waste: Chrome-plated brass, 1-1/4" OD tailpiece
  • Bowl: Yellow, ABS plastic 11-3/4" diameter bowl.
  • Mounting: 11 gauge galvanized steel wall bracket with a yellow powder coated finish
  • Universal Sign: ANSI-compliant, vertical identification sign
  • Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
Shipping calculated at checkout.

Additional Info

ACTIVATION: Push Handle
BRAND: Acorn Safety
COMPLIANCES: ANSI/ISEA Z358.1-2014
CSI DIVISIONS: 22 45 00 - Emergency Plumbing Fixtures
FLOW RATE: Exceeds minimum water flow of 3.0 GPM (11.4L) at 30 PSI (2.0 bar)
MATERIAL: ABS Plastic
TYPE OF MOUNT: Wall Mount
Submittal S0420 Wall Mount Eye-Face Wash (rfa) Submittal S0420 Wall Mount Eye-Face Wash
Manual S0420, S0440 Wall Mount Eye-Face Wash (pdf) Manual S0420, S0440 Wall Mount Eye-Face Wash
S0420 Wall Mount Eye-Face Wash RFA (zip) S0420 Wall Mount Eye-Face Wash
S0420 Wall Mount Eye-Face Wash CAD (zip) S0420 Wall Mount Eye-Face Wash
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
Acorn Safety Kwik Ship Spec Sheet (pdf) Acorn Safety Kwik Ship Spec Sheet
Kwik Ship General Brochure (pdf) Kwik Ship General Brochure
MasterSpec Section 224500 (doc) MasterSpec Section 224500
MasterSpec Section 224500 (pdf) MasterSpec Section 224500
Acorn Safety Kwik Ship® Visual Competitive Cross Reference (pdf) Acorn Safety vs Guardian, Haws, Bradley [S1320, S1340, S1340-BF, S1340-CS1, S2340, S2340-BF, S2340-AS, S2340-AS-BF, SO706, S0406, S1200, S2100, S0P50, S0320, S0340, S0420, S0440, S0A60, S0660, S0960]
