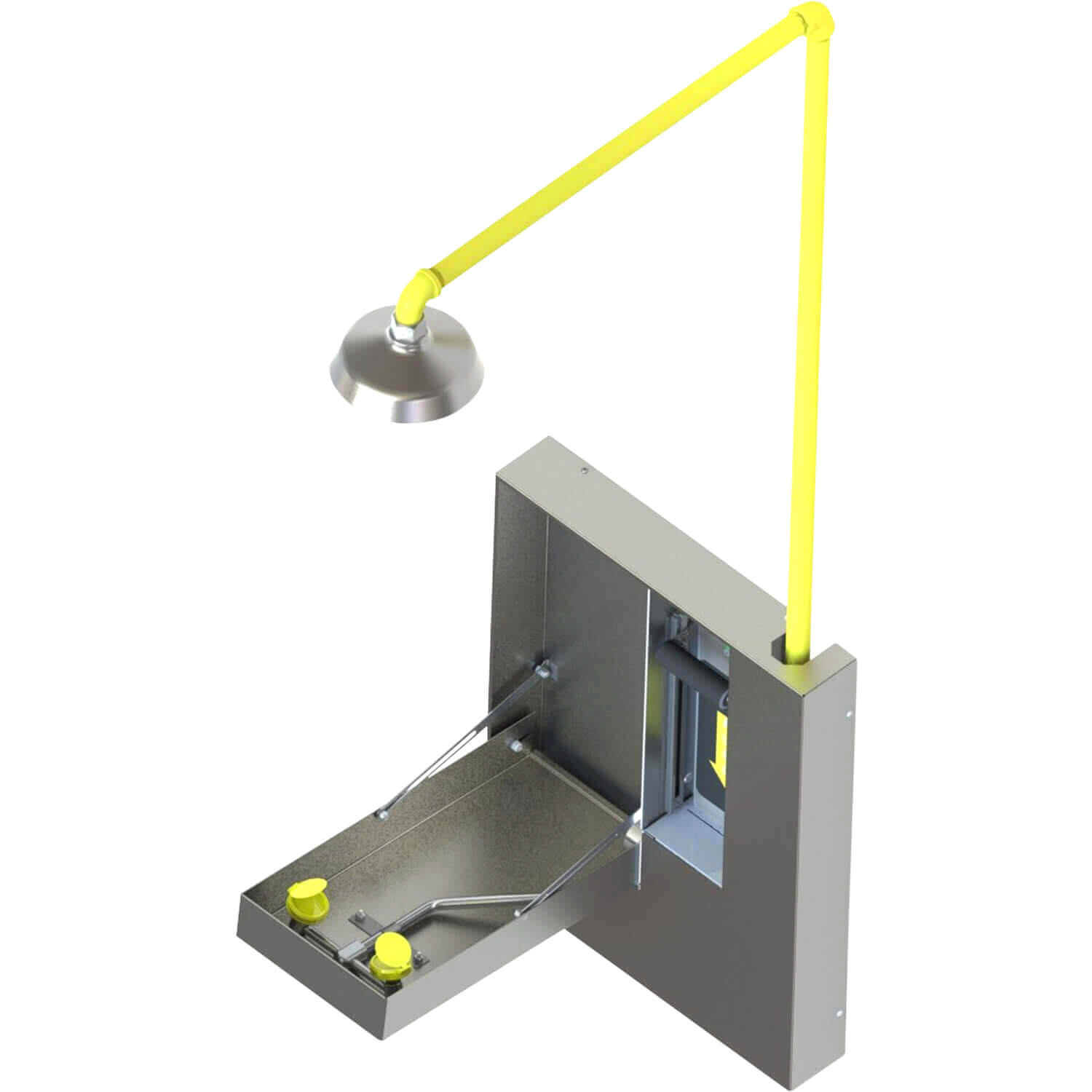

Stainless Steel Safety Shower with Surface-Mounted Eye Wash

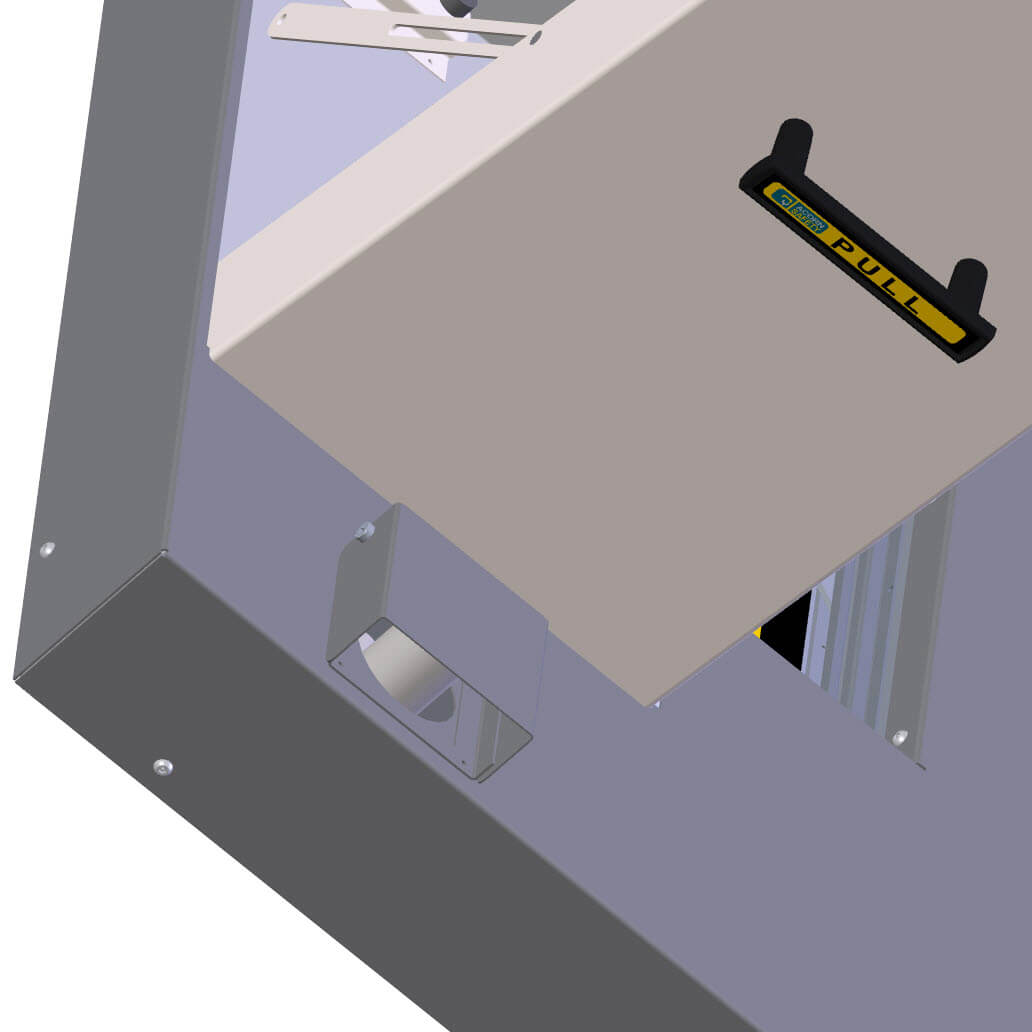

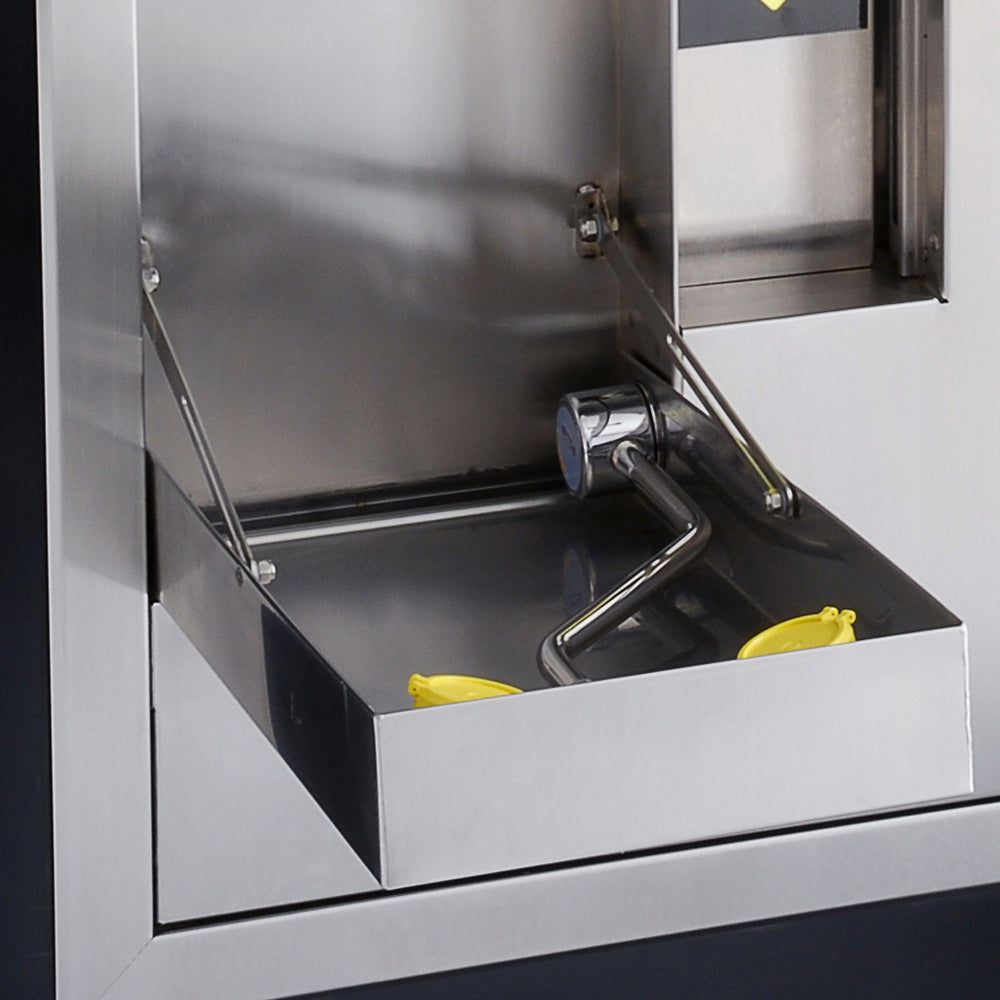

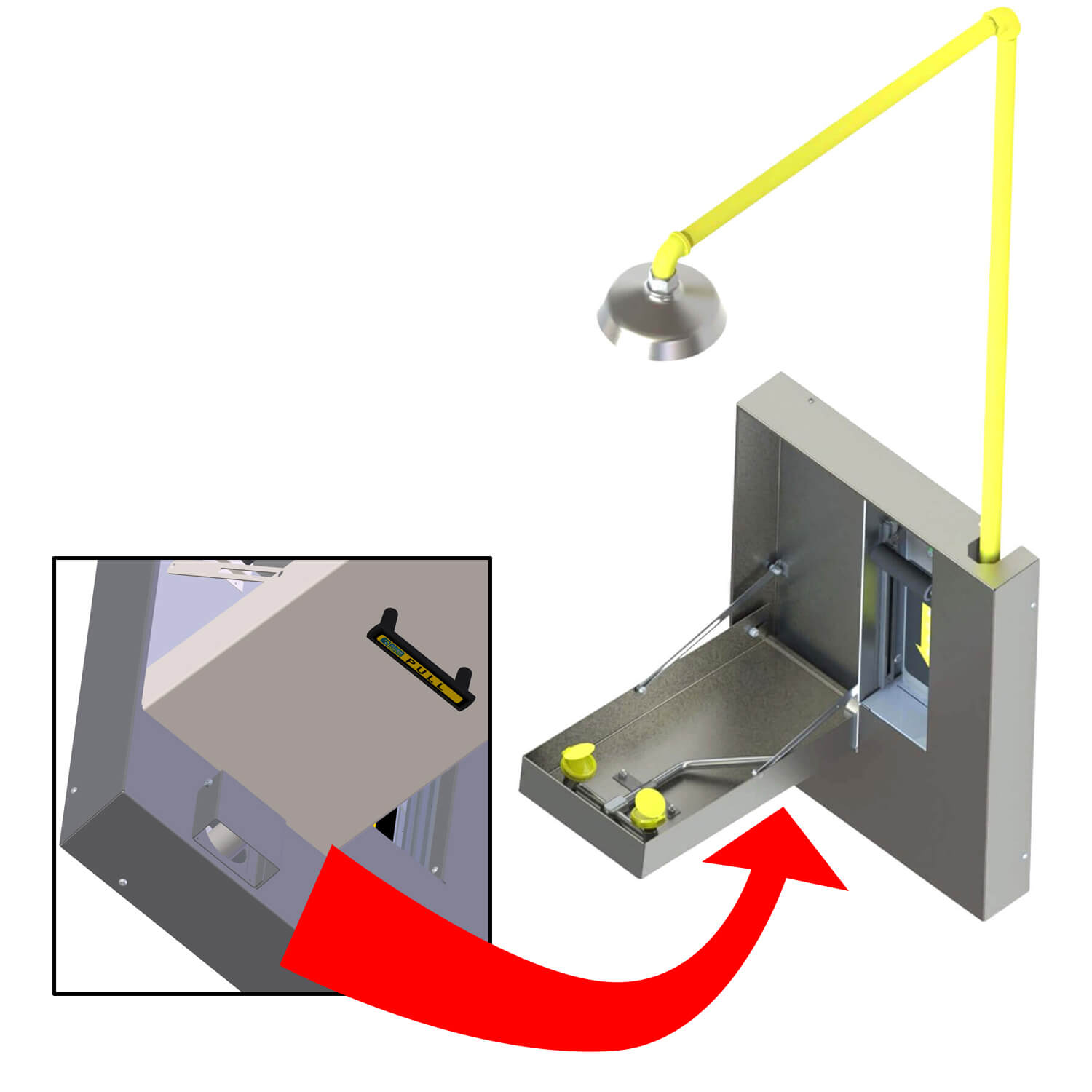

Model S2460-RA is a barrier-free, wall-mounted, eye-face wash with ABS plastic eye-face wash spray heads and a horizontally mounted emergency shower with a stainless steel showerhead. eye-face wash swings down over the floor from the wall-mounted cabinet and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

Showerhead: Stainless steel, 8" diameter showerhead with a 20 gpm flow regulator.

Shower Valve: 1" rough chrome plated brass stay-open ball valve installed inside a wall-mounted, stainless steel enclosure with a vandal-resistant access panel and an actuator that remains recessed, even when the unit is activated.

Shower Water Supply: 1" NPT female threaded brass inlet.

Spray Head Assembly: ABS yellow plastic eye-face Wash heads supplied by a combined integral 3.7 GPM (14 LPM) Flow Control, with integral flip Dust Covers, internal Flow Controls and Filters to remove debris from the water. An antimicrobial agent is molded into the ABS material, providing integrated protection.

Eye-Face Wash Valve: Swing down valve has a 316 stainless steel valve housing and is mounted inside the wall-mounted enclosure and has a 50 mesh inline strainer.

Eye-Face Wash Water Supply: 1/2" NPT female threaded brass inlet

Piping: Schedule 40, 1" galvanized steel pipe, yellow powder coated finish.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
