Barrier-Free, Stainless Steel Pedestal Safety Shower with Eye Wash

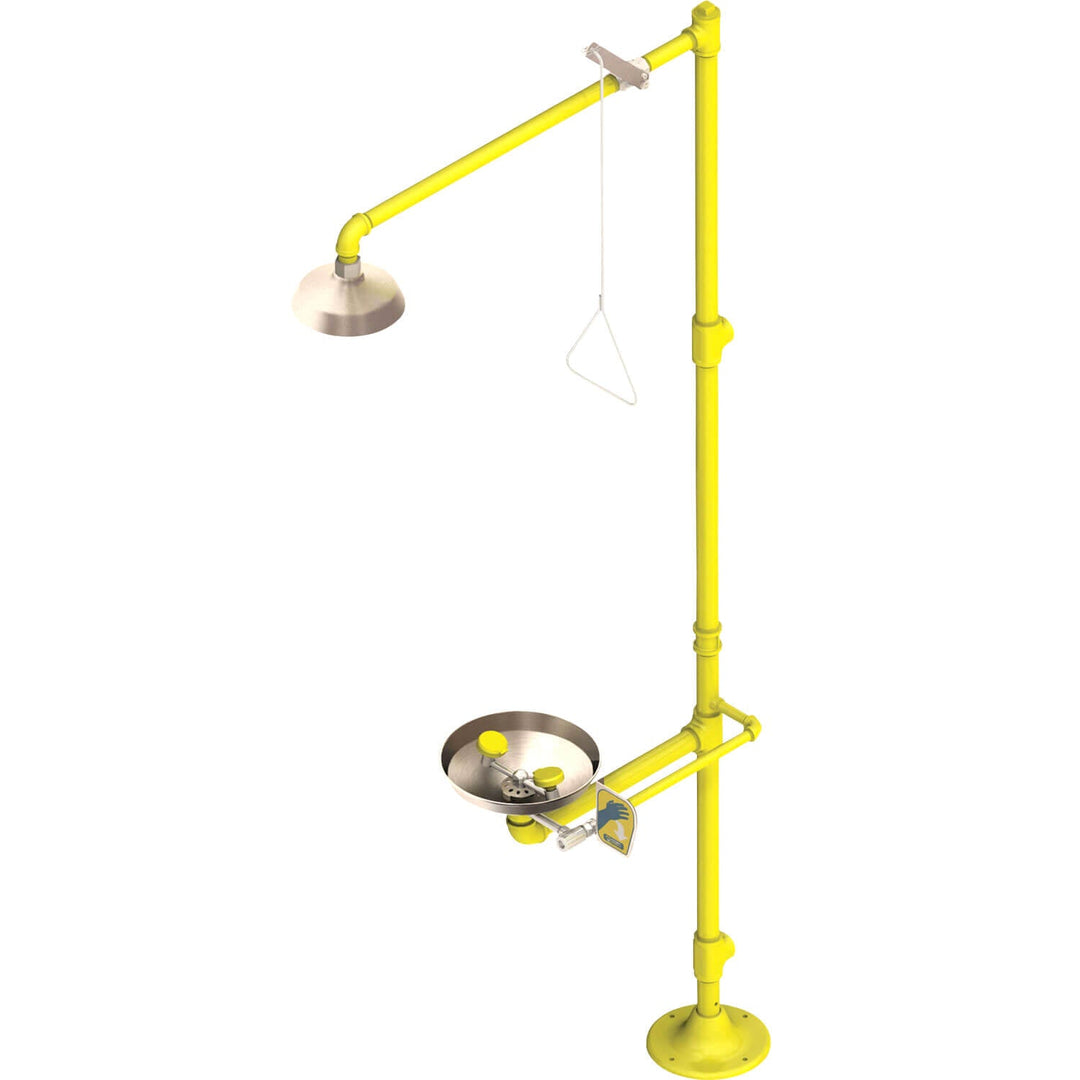

Model S2340-BF is a barrier free, pedestal mounted combination station with an eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer and a stay-open 1/2" ball valve with a push handle and a shower with a stainless steel showerhead and a 1" rough chrome plated brass stay-open ball valve with a 48" pull rod.

Showerhead: Stainless steel, 8" diameter showerhead with a 20 gpm flow regulator.

Shower Valve: 1" NPT rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 48" stainless steel pull rod.

Eye-Face Wash Bowl: Stainless steel, 11- 3/4" diameter bowl.

Spray Head Assembly: ABS yellow plastic eye-face Wash heads supplied by a combined integral 3.7 GPM (14 LPM) Flow Control, with integral flip Dust Covers, internal Flow Controls and Filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Eye-Face Wash Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1-1/4" NPT female threaded side or top inlet.

Waste: 1-1/4" NPT female outlet.

Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder coated finish.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
