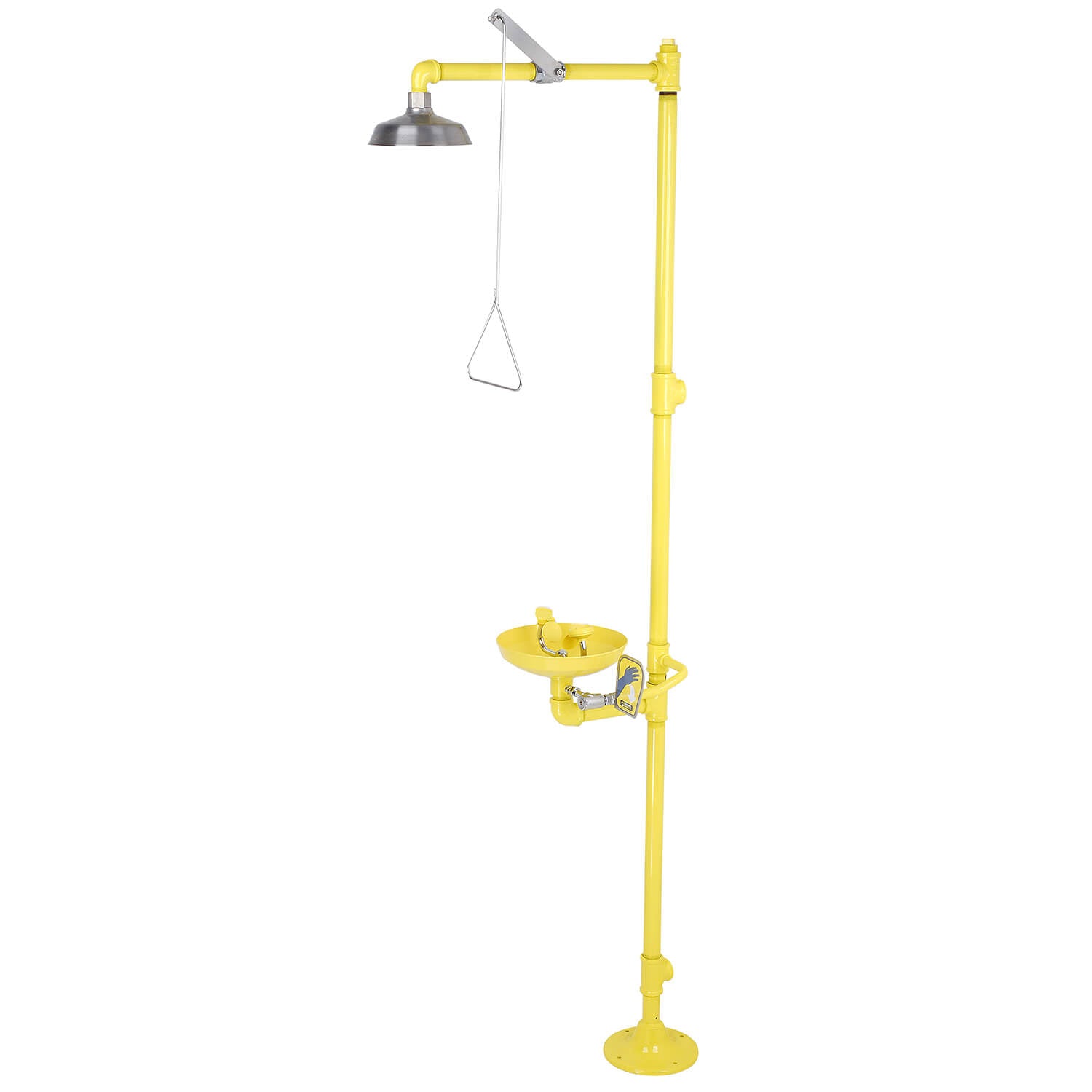

Pedestal Emergency Combination Station with Stainless Steel Showerhead and Plastic Bowl Eye Wash

S2320 is a pedestal mounted combination station with an eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a pull rod.

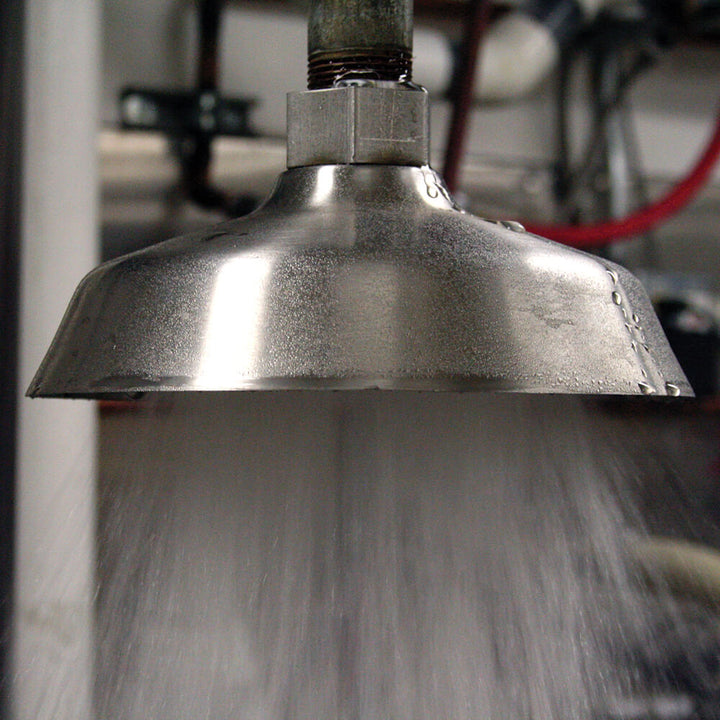

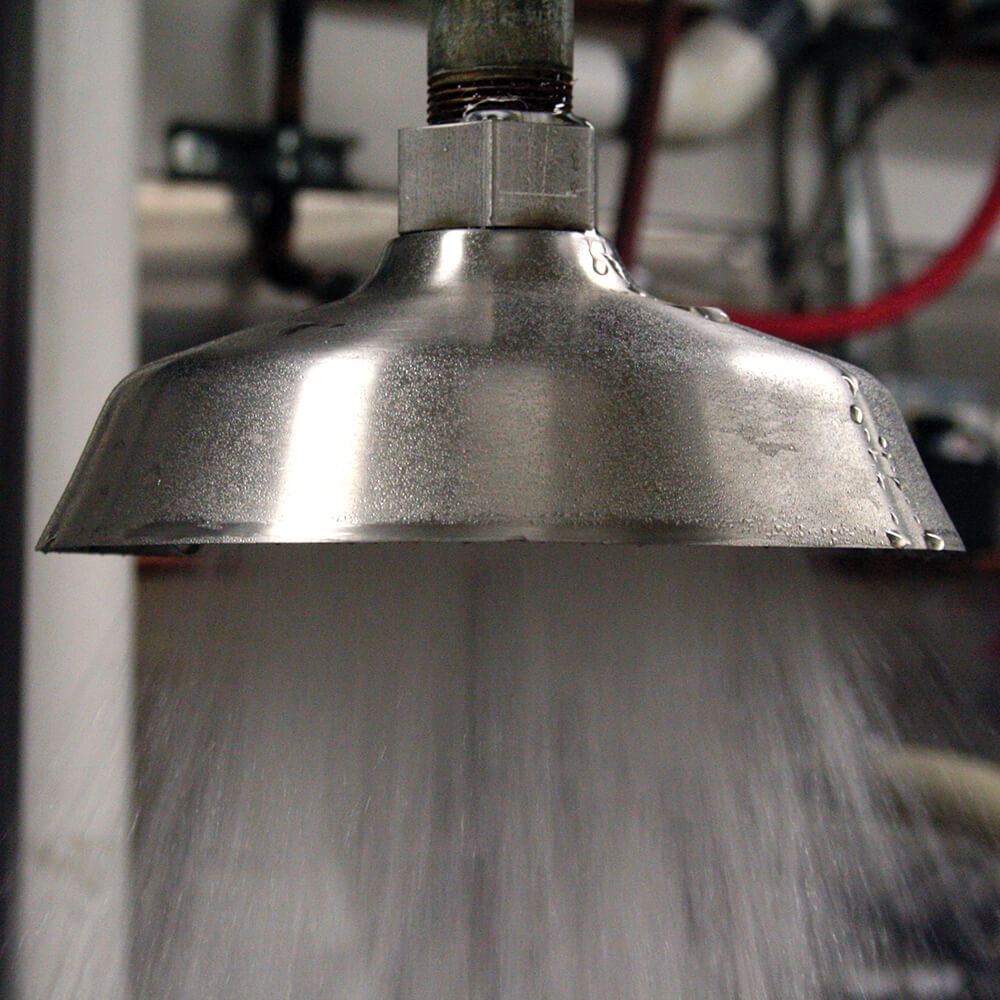

Showerhead: Stainless steel, 8" diameter showerhead with a 20 GPM flow regulator

Shower Valve: 1" NPT rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 29" stainless steel pull rod.

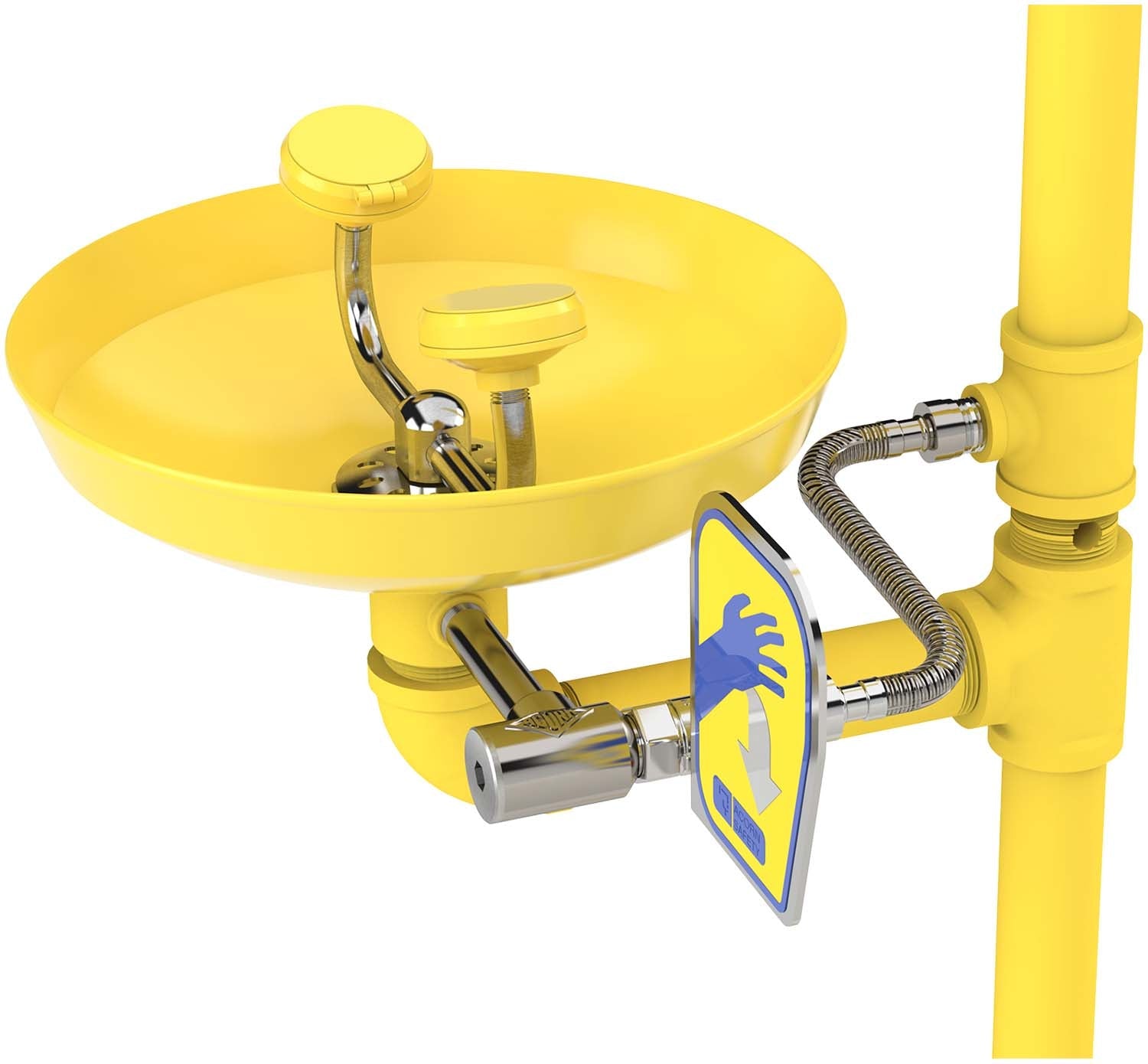

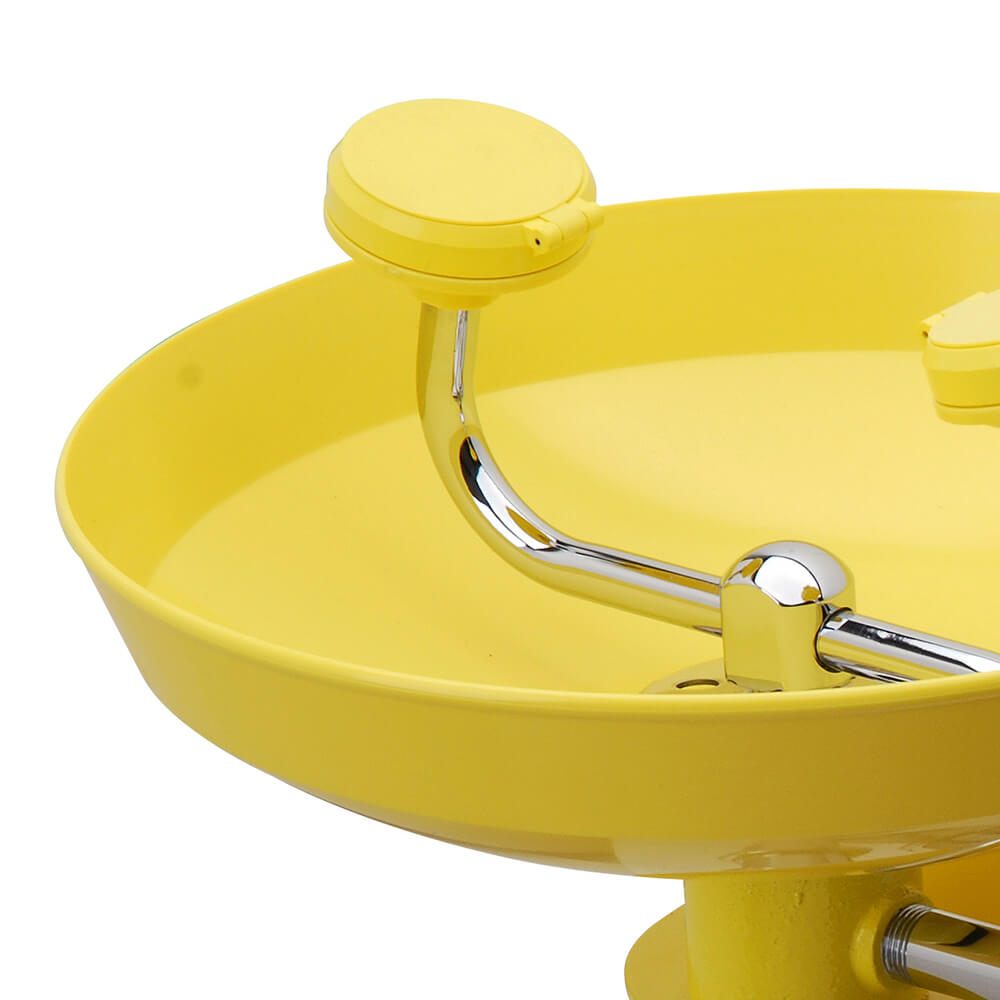

Eye-Face Wash Bowl: Yellow, ABS plastic 11-3/4" diameter bowl.

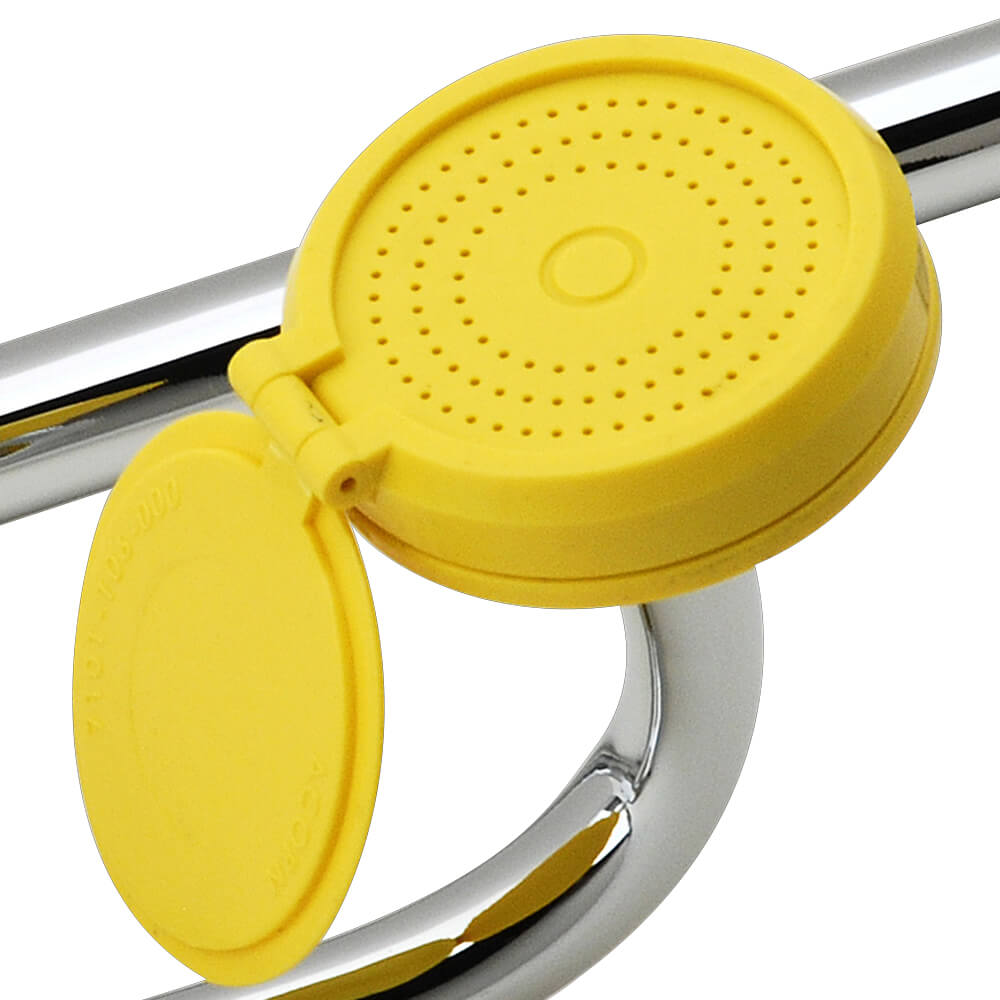

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An antimicrobial agent is molded into the ABS material, providing integrated protection

Eye-Face Wash Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1-1/4" NPT female threaded side or top inlet.

Waste: 1-1/4" NPT female outlet.

Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder-coated finish.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the unit's date and inspector's name for weekly functional testing.
