Stay-Open Deck Mount Drench Hose

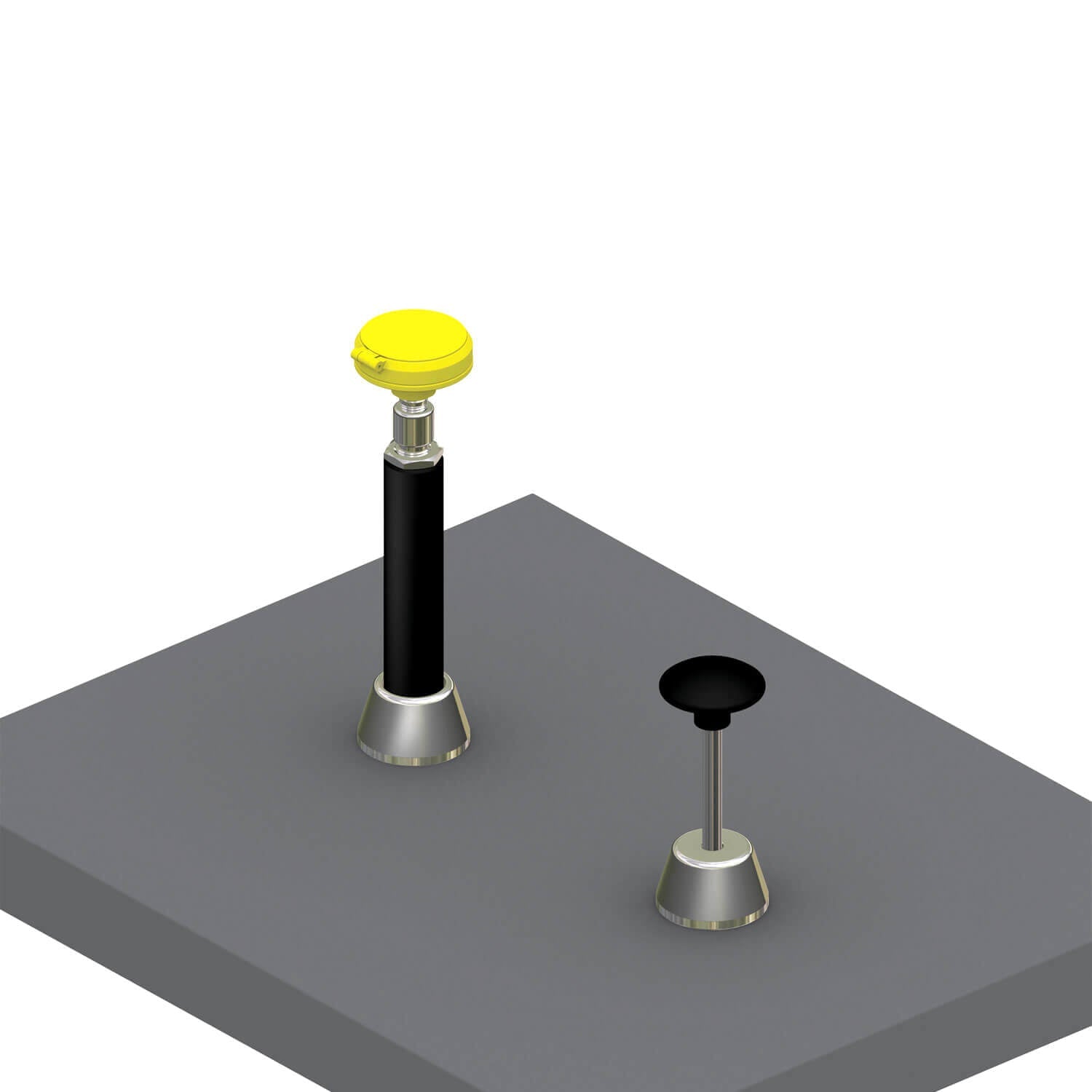

Model S0704 is a deck-mounted eye-face and body drench hose with an ABS plastic eye-face wash spray head, a stay-open 1/2" ball valve with a push handle and an eight-foot reinforced PVC hose.

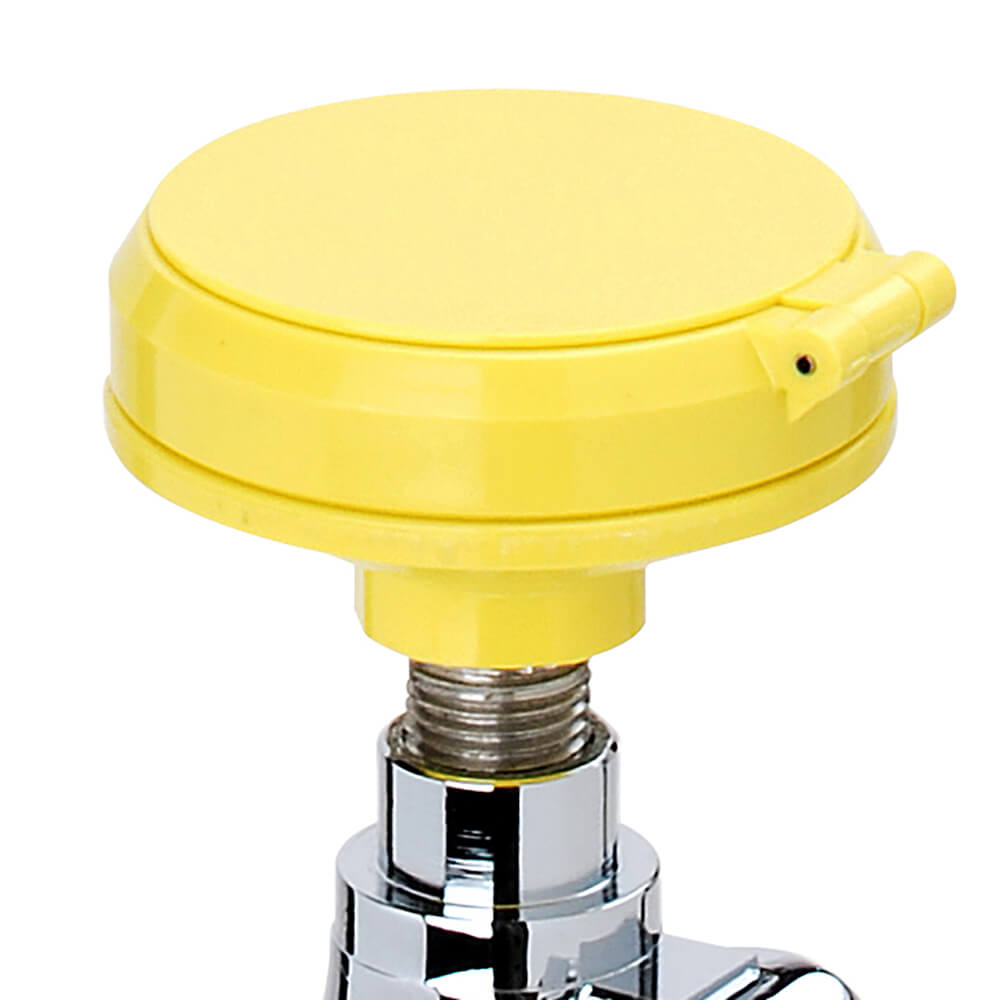

Spray Head Assembly: ABS yellow plastic eye-face Wash heads supplied by a combined integral 1.85 GPM (7 LPM) Flow Control, with integral flip Dust Covers, internal Flow Controls, and Filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle.

Hose: An 8-foot yellow PVC hose with a working maximum pressure of 300 psi.

Mounting Countertop mounting with a deck flange that has a locator guide to position the handle forward.

Water Supply: 1/2" NPT female threaded, chrome-plated brass inlet.

Waste: Chrome-plated brass, 1-1/4" OD tailpiece.

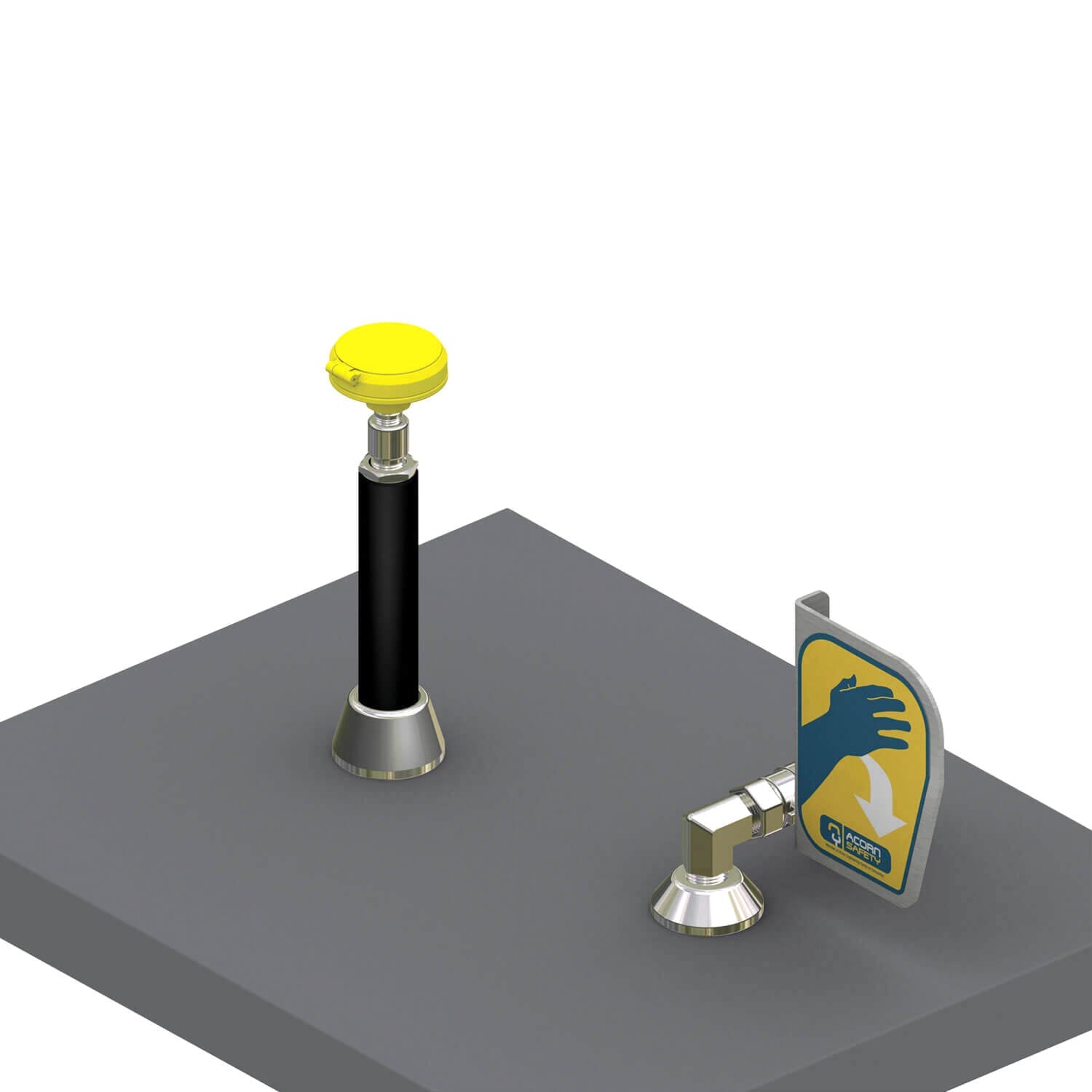

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
