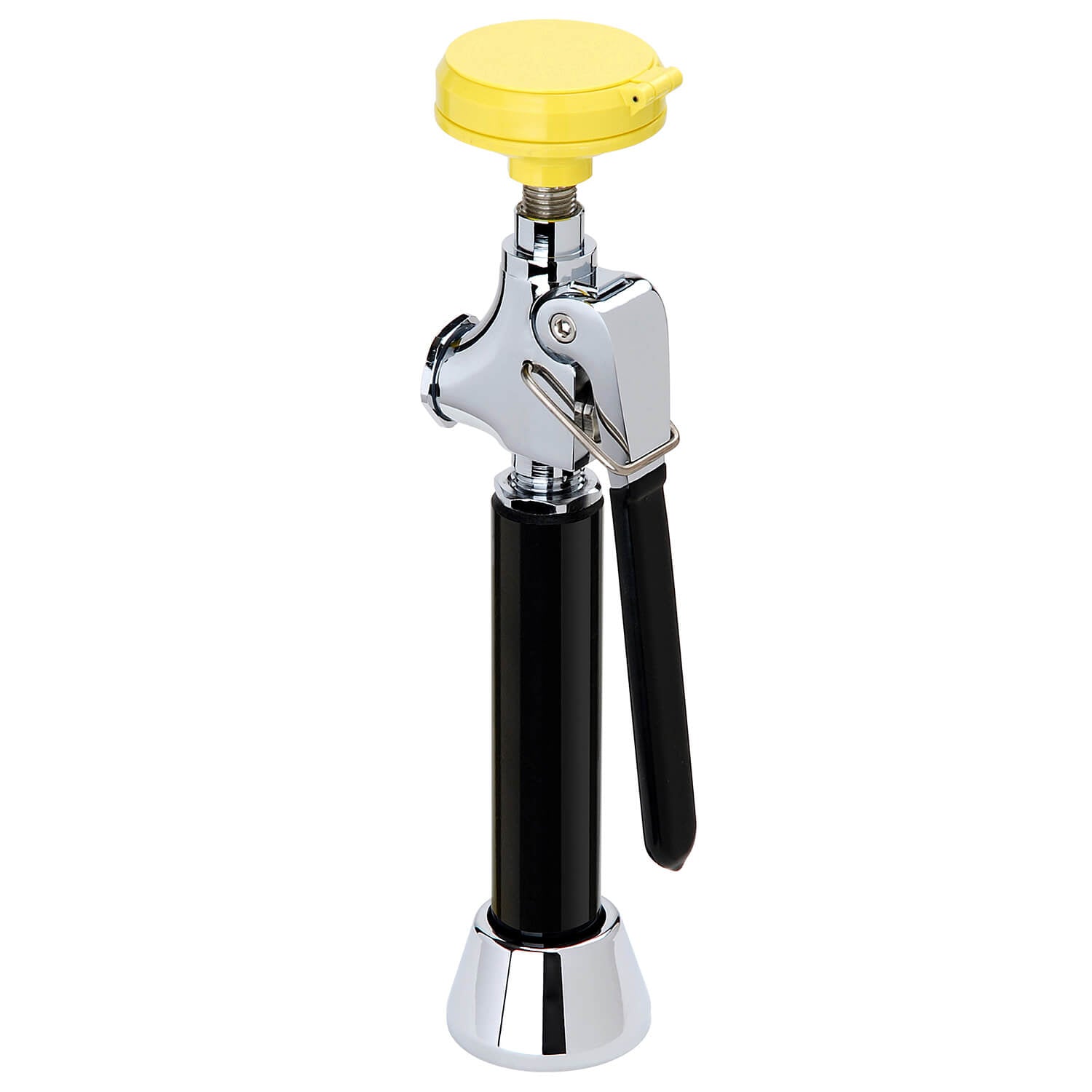

Model S0702 is a deck-mounted eye-face and body drench hose with an ABS plastic eye-face wash spray head, stay-open squeeze lever valve, and an eight-foot(2.44 meter) reinforced PVC hose.

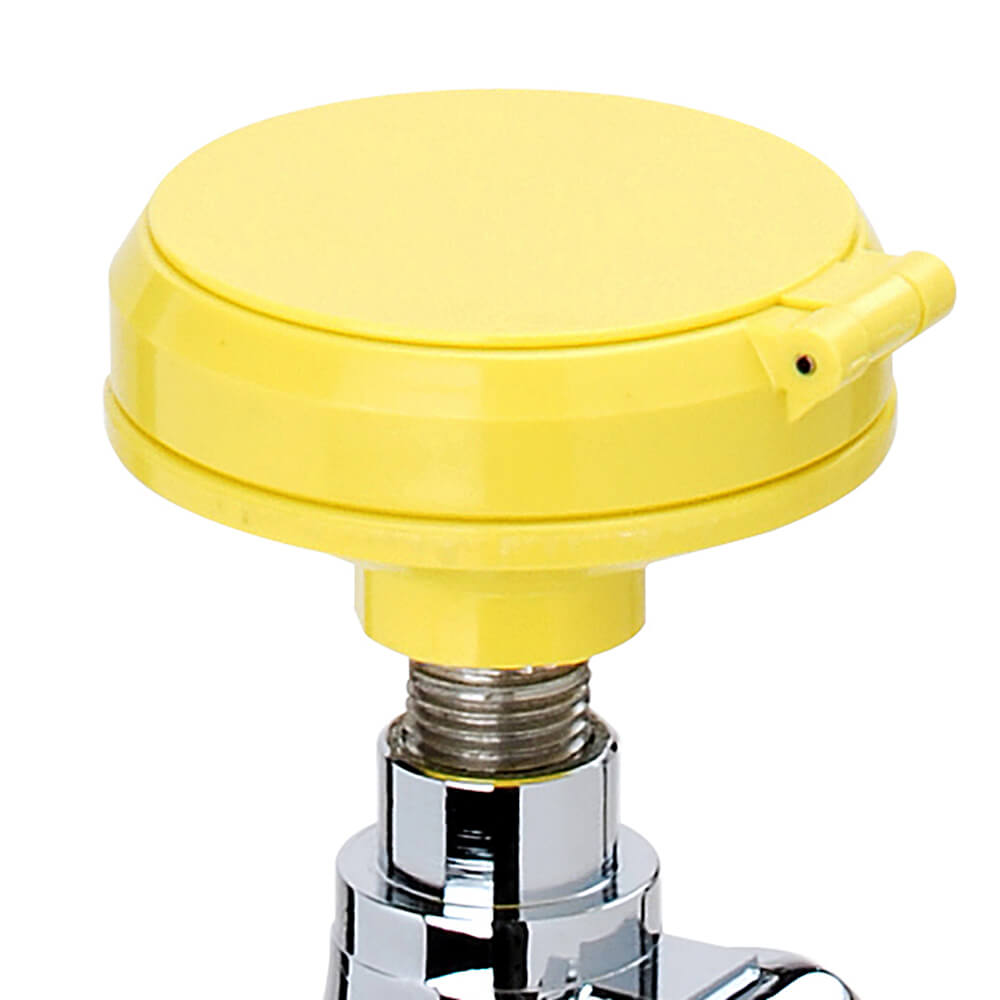

Spray Head Assembly: ABS yellow plastic eye-face wash head with an integral flip dust cover and internal flow control. An anti-microbial agent is molded into the ABS material, providing integrated protection.

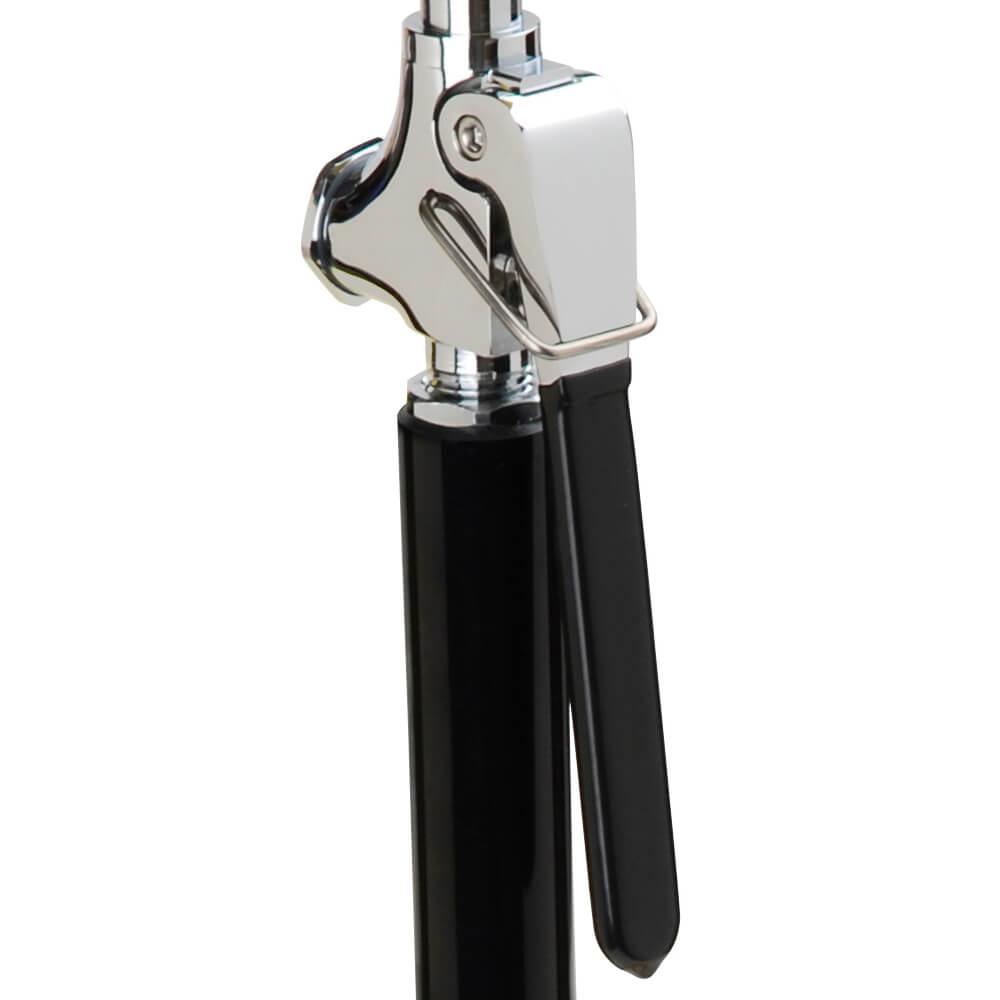

Valve: Chrome-plated brass stay-open valve with a locking clip and a stainless steel squeeze lever.
Hose: An eight-foot (2.44 meter) yellow PVC hose with a working maximum pressure of 300 psi.
Mounting: Countertop mounting with a deck flange that has a locator guide to position the handle forward.
Water Supply: 3/8" NPT male threaded, chrome-plated brass swivel inlet.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
