Wall Mount Self-Closing Drench Hose

MODEL: S0401
With Options
/

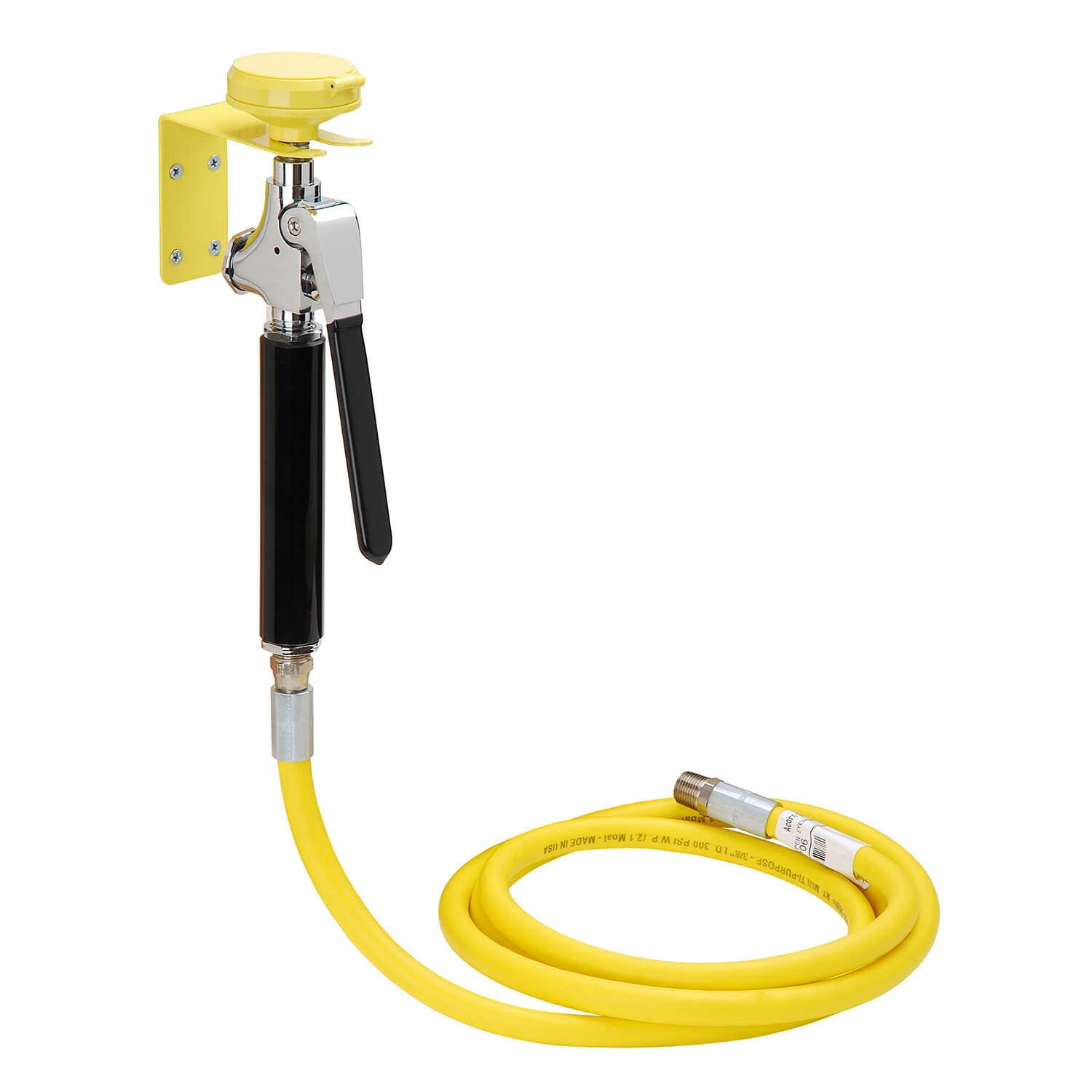

S0401 is a wall-mounted eye-face and body drench hose with an ABS plastic eye-face wash spray head, self-closing squeeze lever valve, and an eight-foot (2.44 meter)reinforced PVC hose.

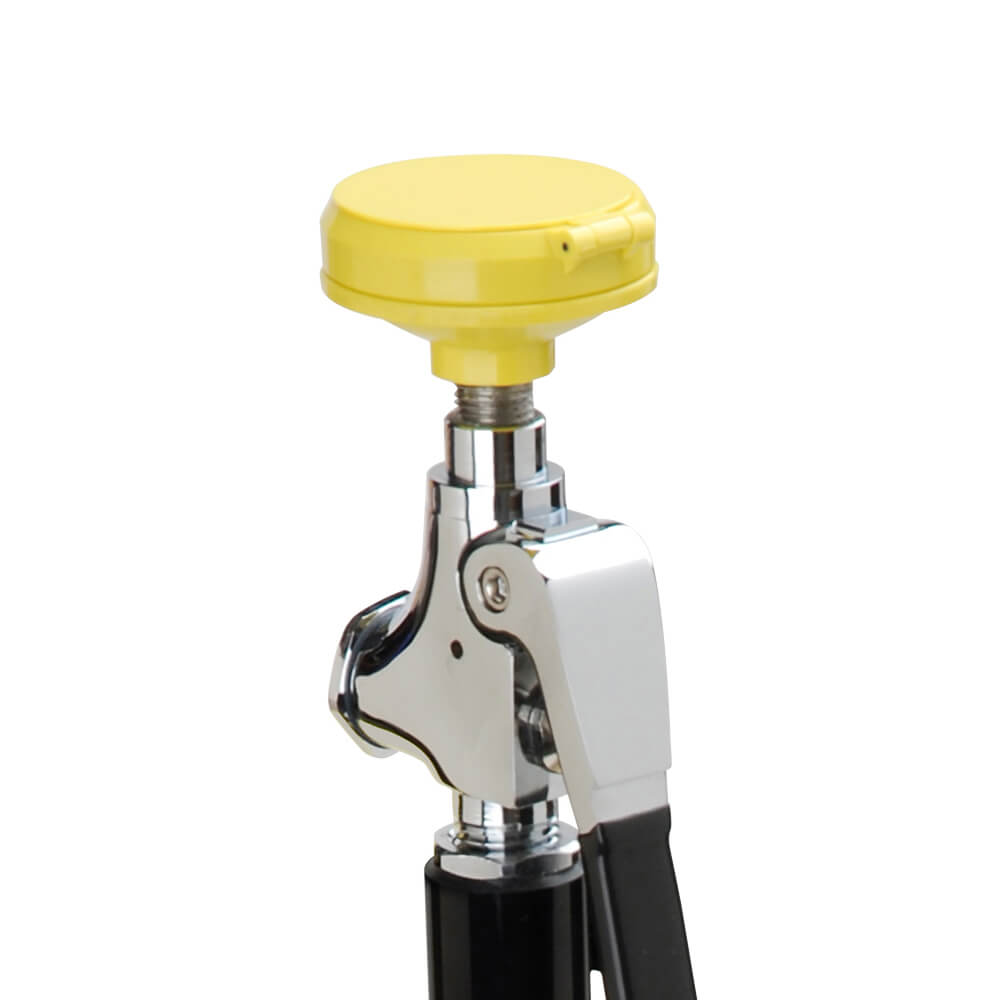

Spray Head Assembly: ABS yellow plastic eye-face wash head with and an integral flip dust cover. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: Chrome-plated brass self-closing valve with a stainless steel squeeze lever.

Hose: An eight-foot (2.44 meter) yellow PVC hose with a working maximum pressure of 300 psi.

Mounting: Wall mounted, yellow powder-coated galvanized steel.

Water Supply: 3/8" NPT male threaded, chrome-plated brass swivel inlet.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Shipping calculated at checkout.

Additional Info

BRAND: Acorn Safety
CSI DIVISIONS: 22 45 00 - Emergency Plumbing Fixtures
MATERIAL: Stainless Steel
MATERIAL DETAILS: Stainless Steel, ABS Plastic, PVC, Galvanized Steel, Chrome-Plated Brass, Brass
TYPE OF MOUNT: Wall Mount
Manual S0001, S0002, S0401, S0402 Drench Hose (pdf) Manual S0001, S0002, S0401, S0402 Drench Hose
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
MasterSpec Section 224500 (doc) MasterSpec Section 224500
MasterSpec Section 224500 (pdf) MasterSpec Section 224500
