Stainless Steel Head, Pedestal Mount Safety Shower
S2300 Stainless Steel Head, Pedestal Mount Safety Shower
S2300 Stainless Steel Head Safety Shower
S2300 Stainless Steel Head, Pedestal Mount Safety Shower
S2300 Stainless Steel Head Safety Shower

Stainless Steel Head, Pedestal Mount Safety Shower

MODEL: S2300
/

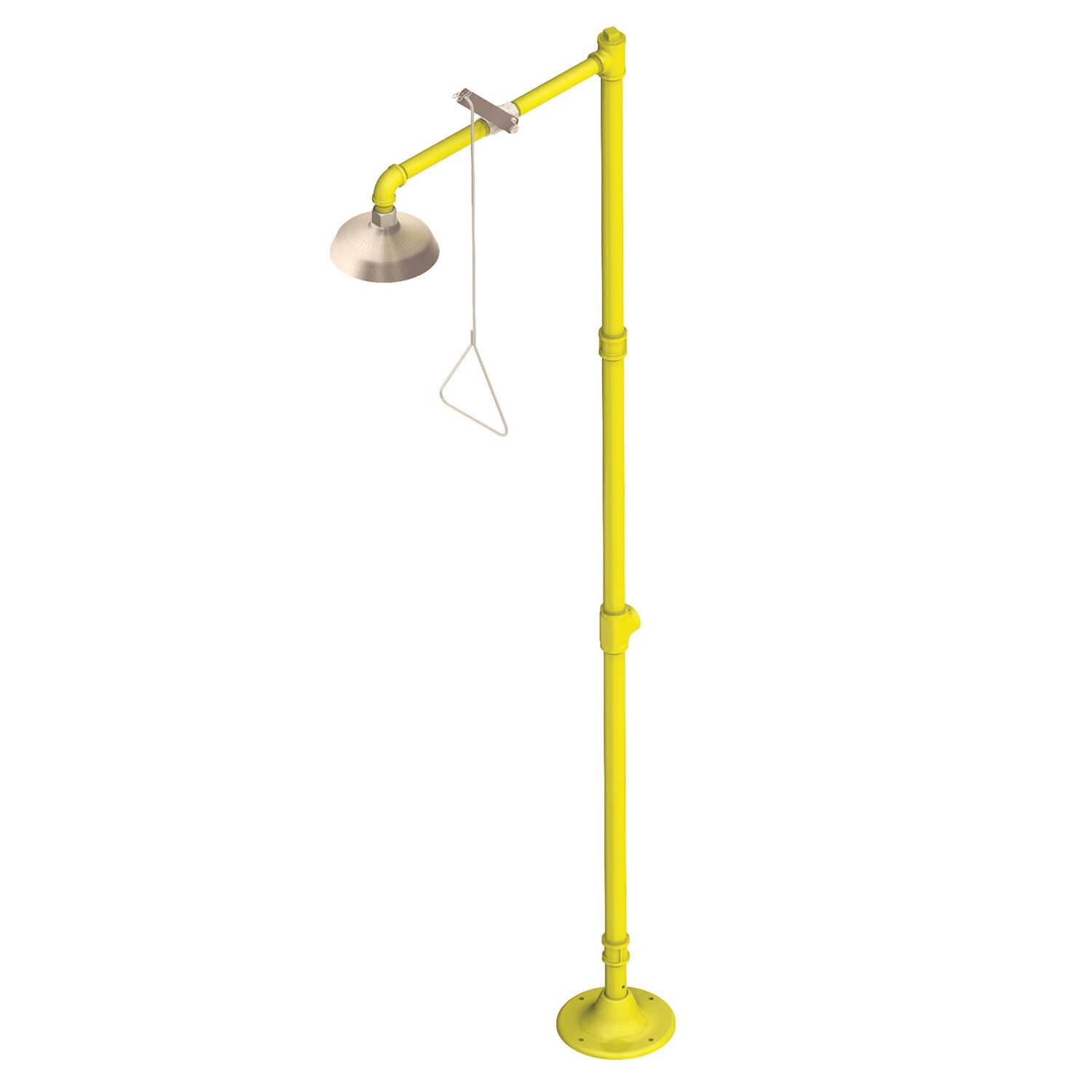

S2300 is a pedestal-mounted emergency shower with a stainless steel showerhead and a 1" (25.4 mm) stay-open ball valve with a pull rod.

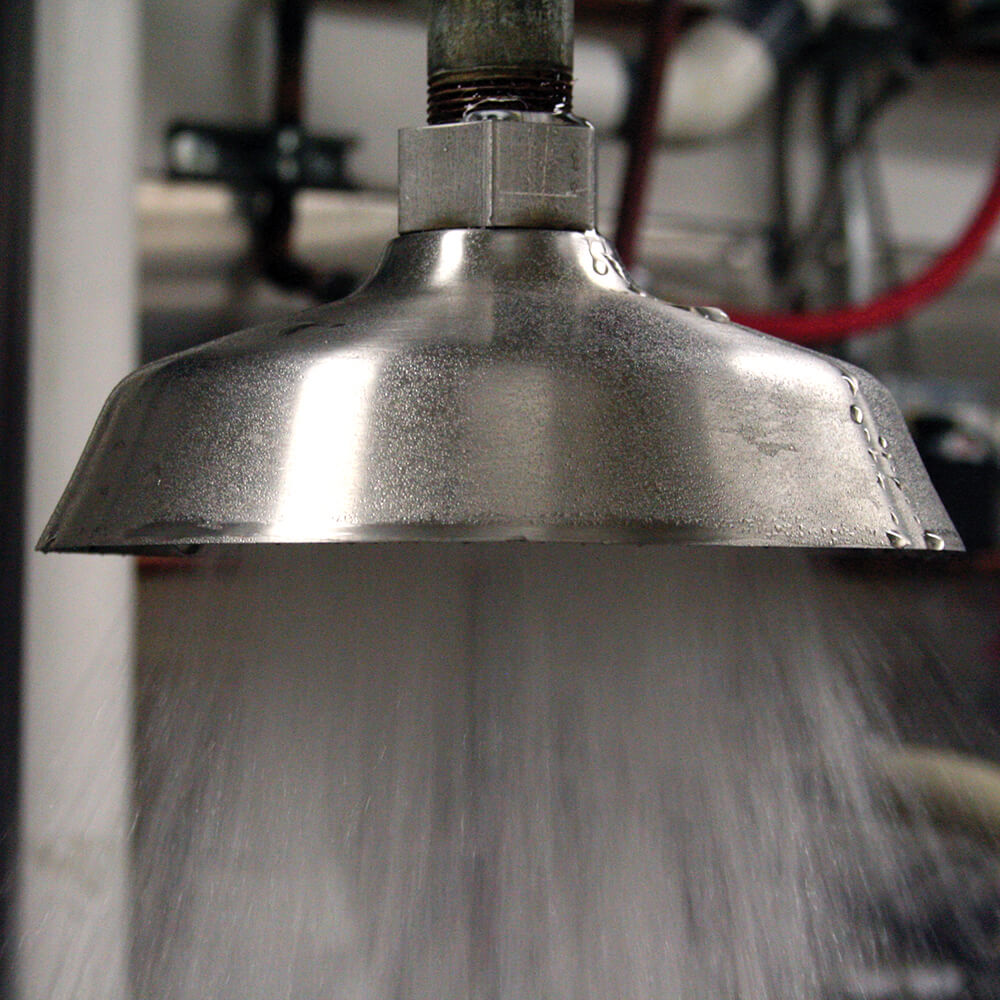

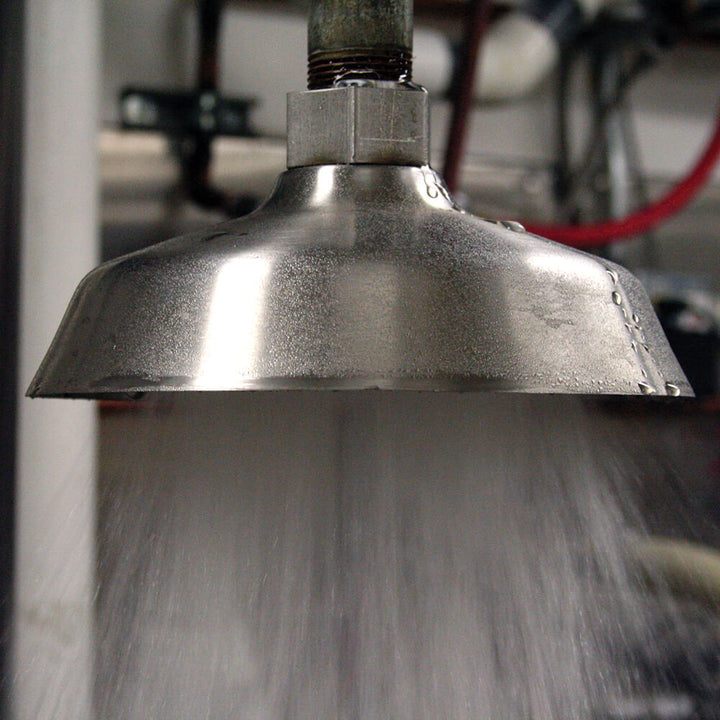

Showerhead: Stainless steel, 8" (203.2 mm) diameter showerhead with a 20 gallons (75.71 liters) per minute flow regulator.

Valve: 1" NPT rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 29"(736.6 mm)stainless steel pull rod.

Water Supply: 1-1/4" NPT female threaded side or top inlet.

Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8"(234.95 mm) diameter cast iron floor flange with a yellow powder-coated finish.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Shipping calculated at checkout.

Additional Info

ACTIVATION: Pull Rod
BRAND: Acorn Safety
COMPLIANCES: ANSI/ISEA Z358.1-2014
CSI DIVISIONS: 22 45 00 - Emergency Plumbing Fixtures
FLOW RATE: Exceeds minimum water flow of 20 GPM (75.7L) at 30 PSI (2.0 bar)
MATERIAL: Stainless Steel
MATERIAL DETAILS: Showerhead: Stainless Steel; Valve: Stainless Steel, Chrome-Plated Brass, Brass
TYPE OF MOUNT: Pedestal Mount
Submittal S2300 Drench Shower (pdf) Submittal S2300 Drench Shower
Manual S1300 and S2300 Drench Showers (pdf) Manual S1300 and S2300 Drench Showers
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
