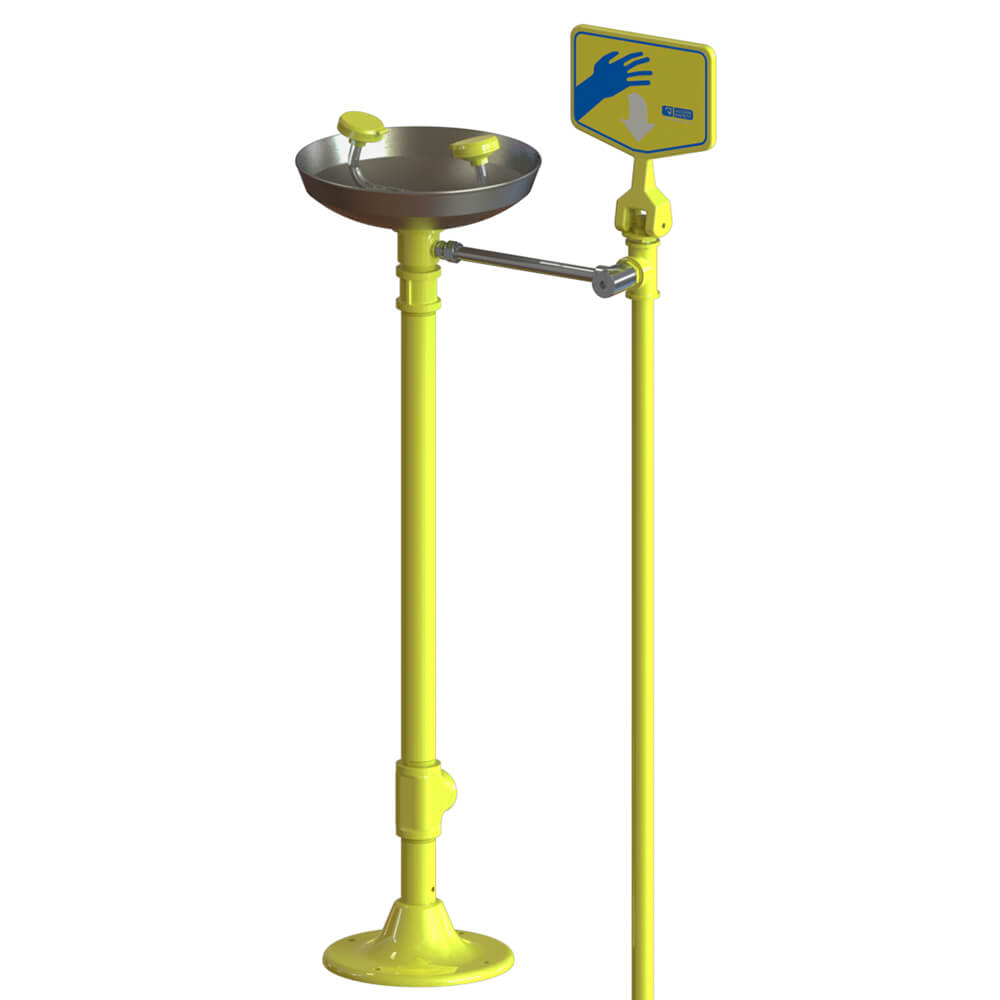

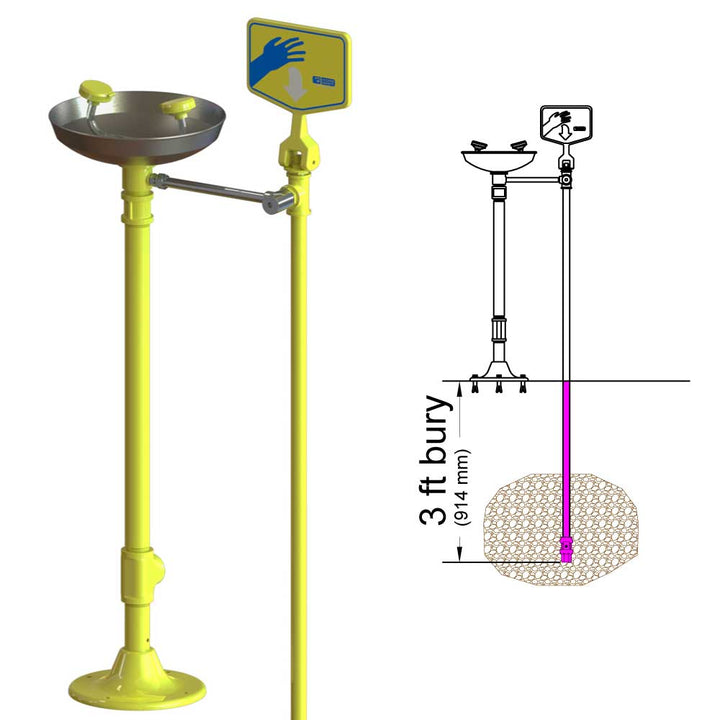

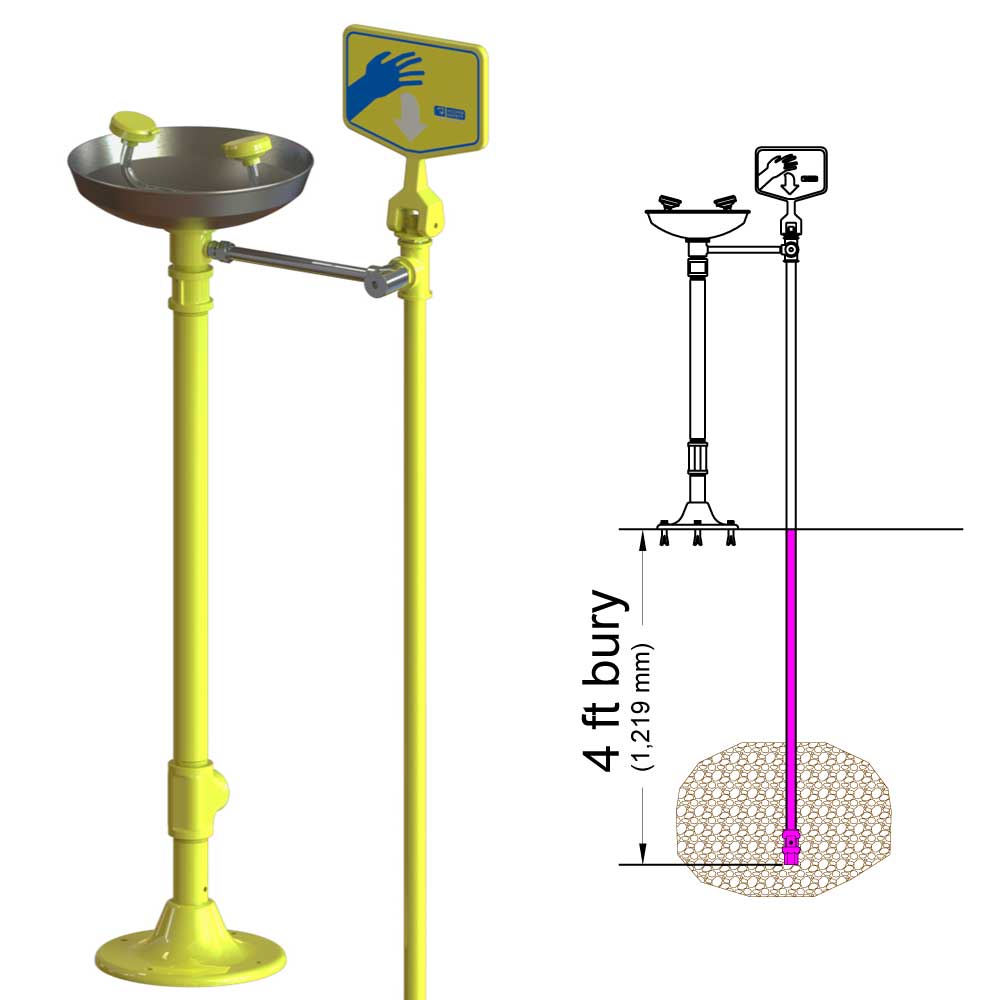

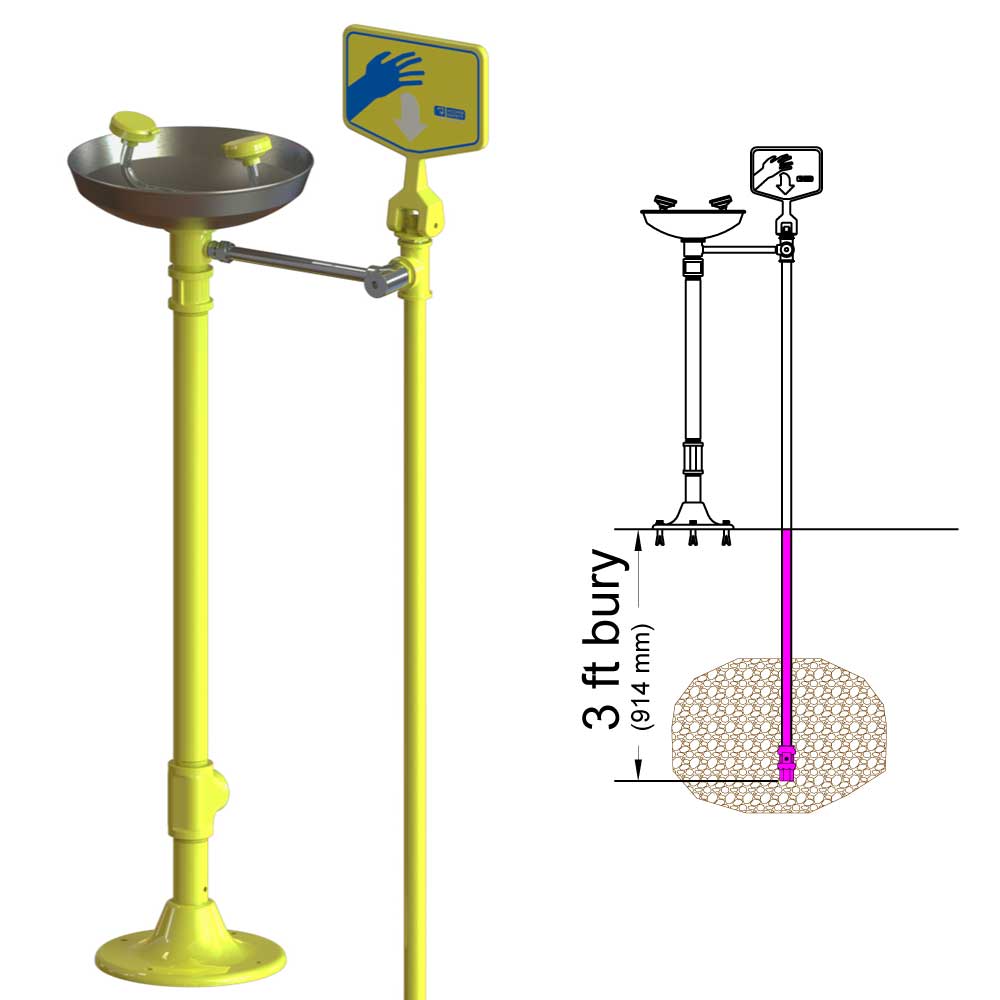

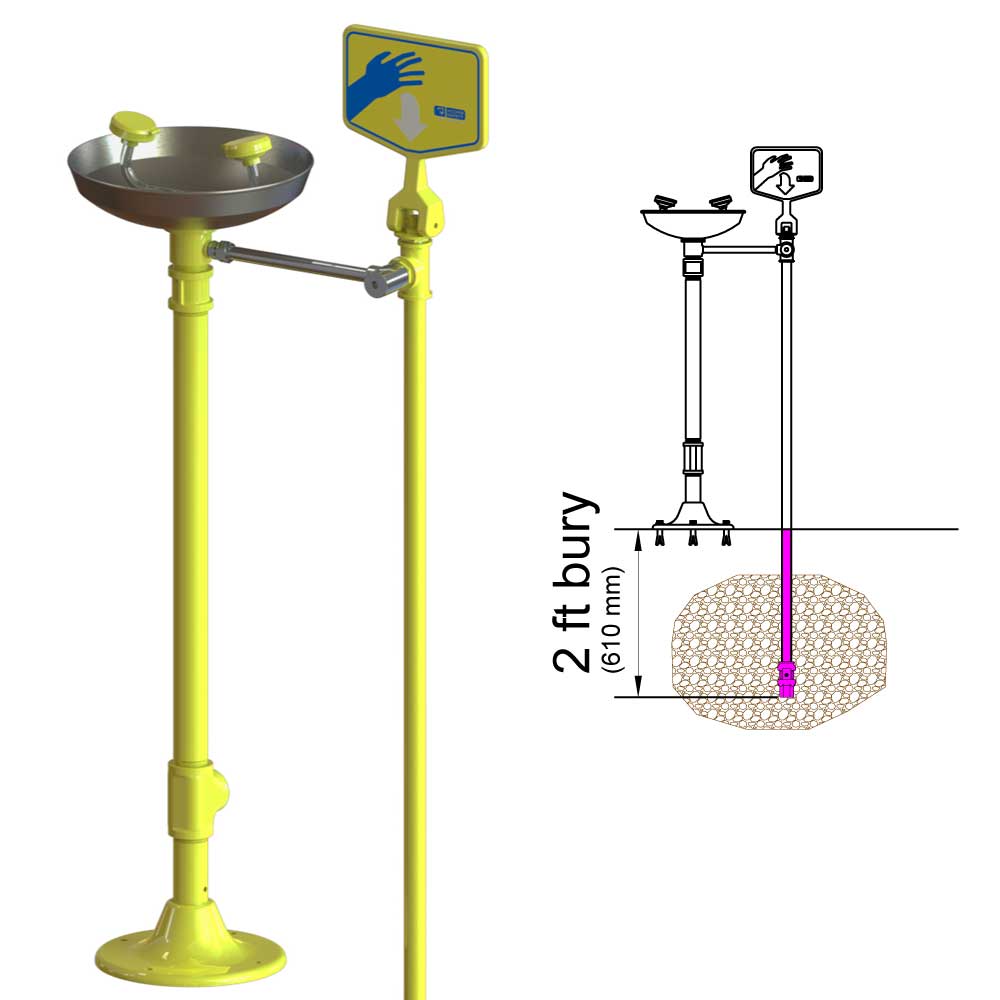

S0340-FPB is a pedestal-mounted eye-face wash station, with a stainless steel bowl, ABS plastic eye-face wash spray heads, and a frost-proof bury valve with a push handle. The valve and supply are buried below the frost line to protect the unit from freezing. The assembly is designed to drain completely, thus leaving no residual water in the unit and preventing it from freezing. Standard bury lengths are 24", 36", and 48". Specify the bury depth of the valve with the last two (2) digits of the model number (i.e. S0340-FPB24 for 24" bury).
Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An antimicrobial agent is molded into the ABS material, providing integrated protection.
Valve: 3/4" NPT freeze-resistant valve and push handle. The valve and supply are buried below the frost line to protect the unit from freezing. The valve has a bleed outlet to prevent the accumulation of water within the unit, thus permitting it to drain after each use.
Water Supply: 3/4" NPT male inlet
Waste: 1-1/4" NPT female outlet.
Bowl: Stainless steel, 11-3/4" diameter bowl.
Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder-coated finish.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
