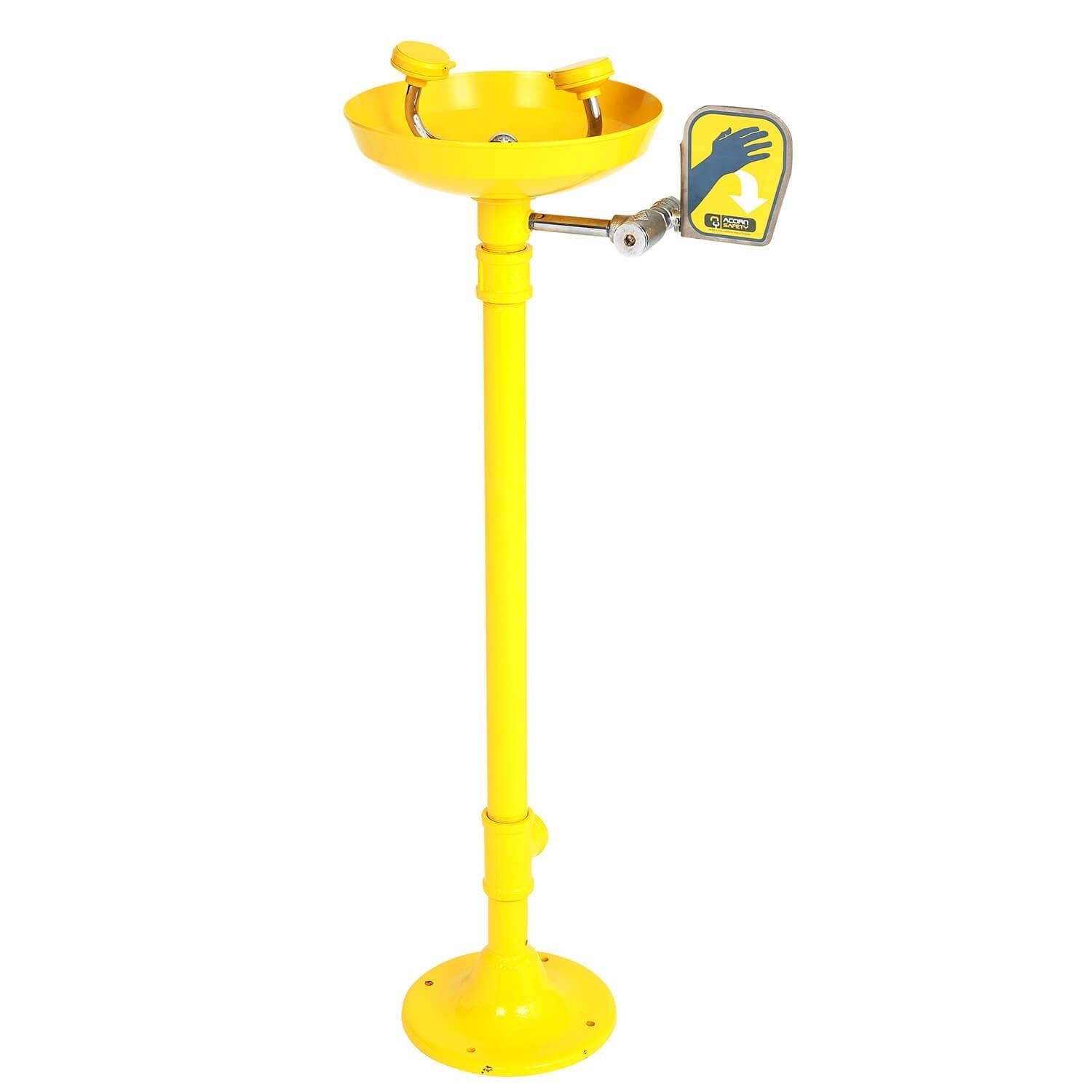

S0320 is a pedestal-mounted eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer and a stay-open 1/2" ball valve with a push handle.

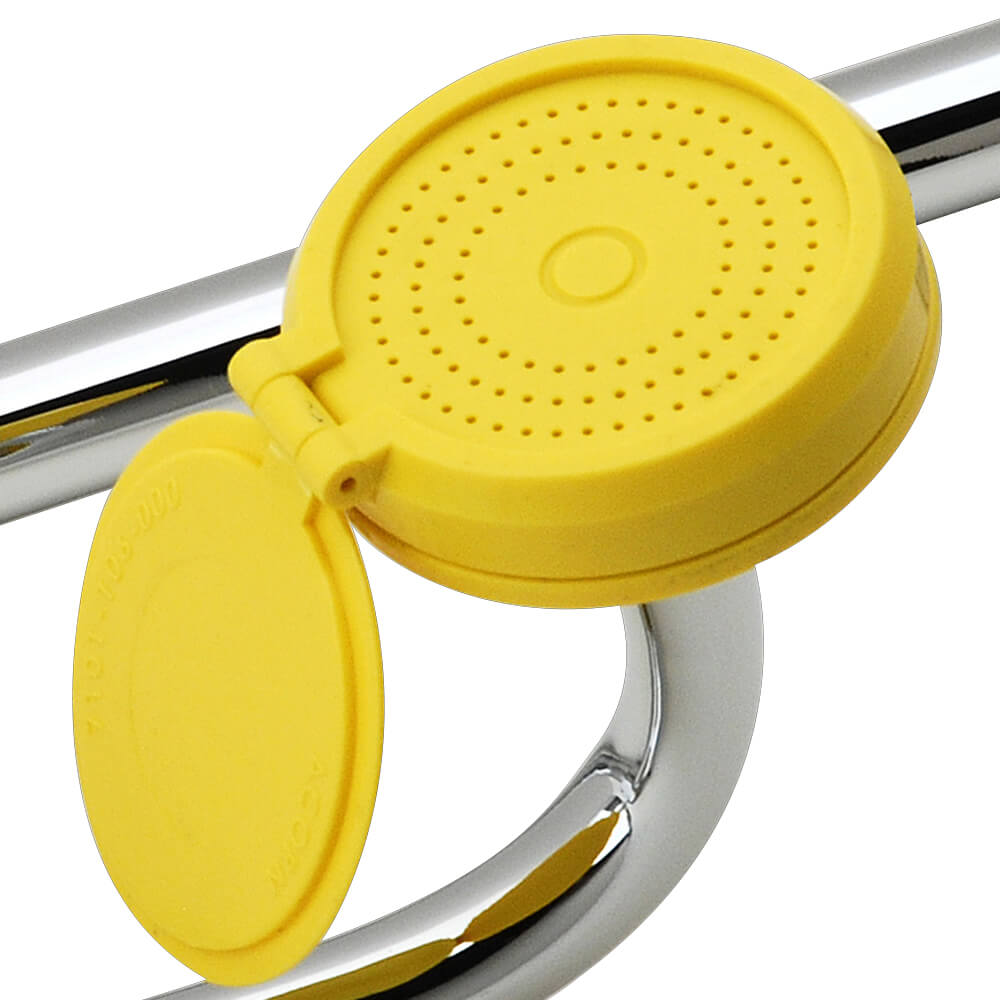

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

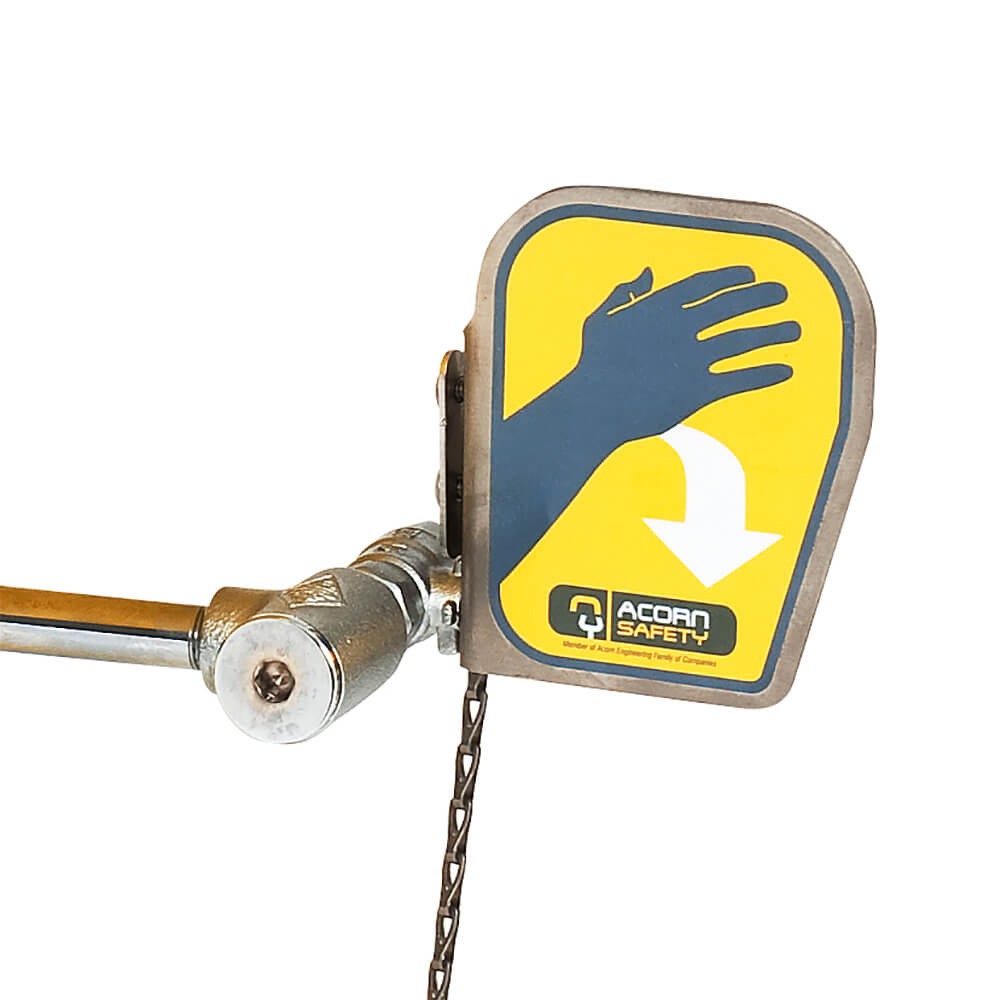

Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.
Water Supply: 1/2" NPT female threaded, chrome plated brass inlet.
Waste: 1-1/4" NPT female outlet.

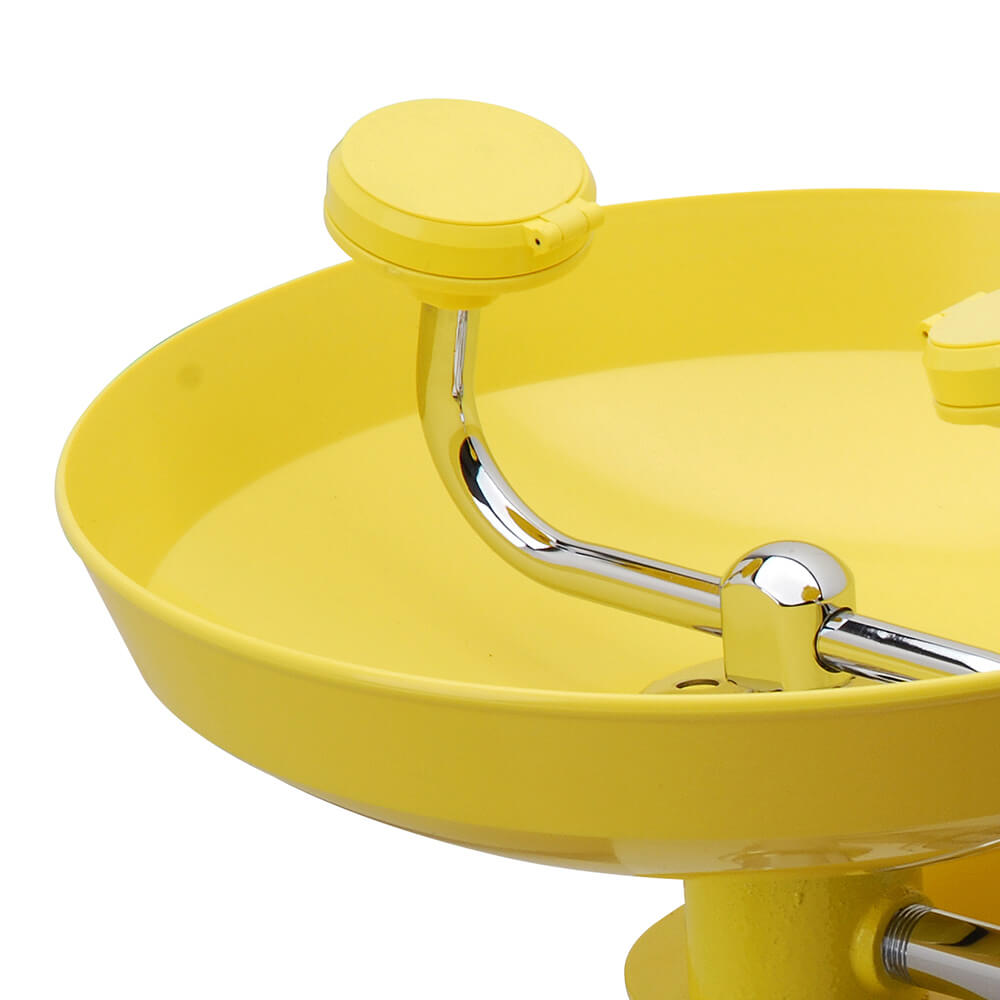

Bowl: Yellow, ABS plastic 11-3/4" diameter bowl.
Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder-coated finish.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.
