Deck-Mount, 90° Swivel Eye-Face Wash Station

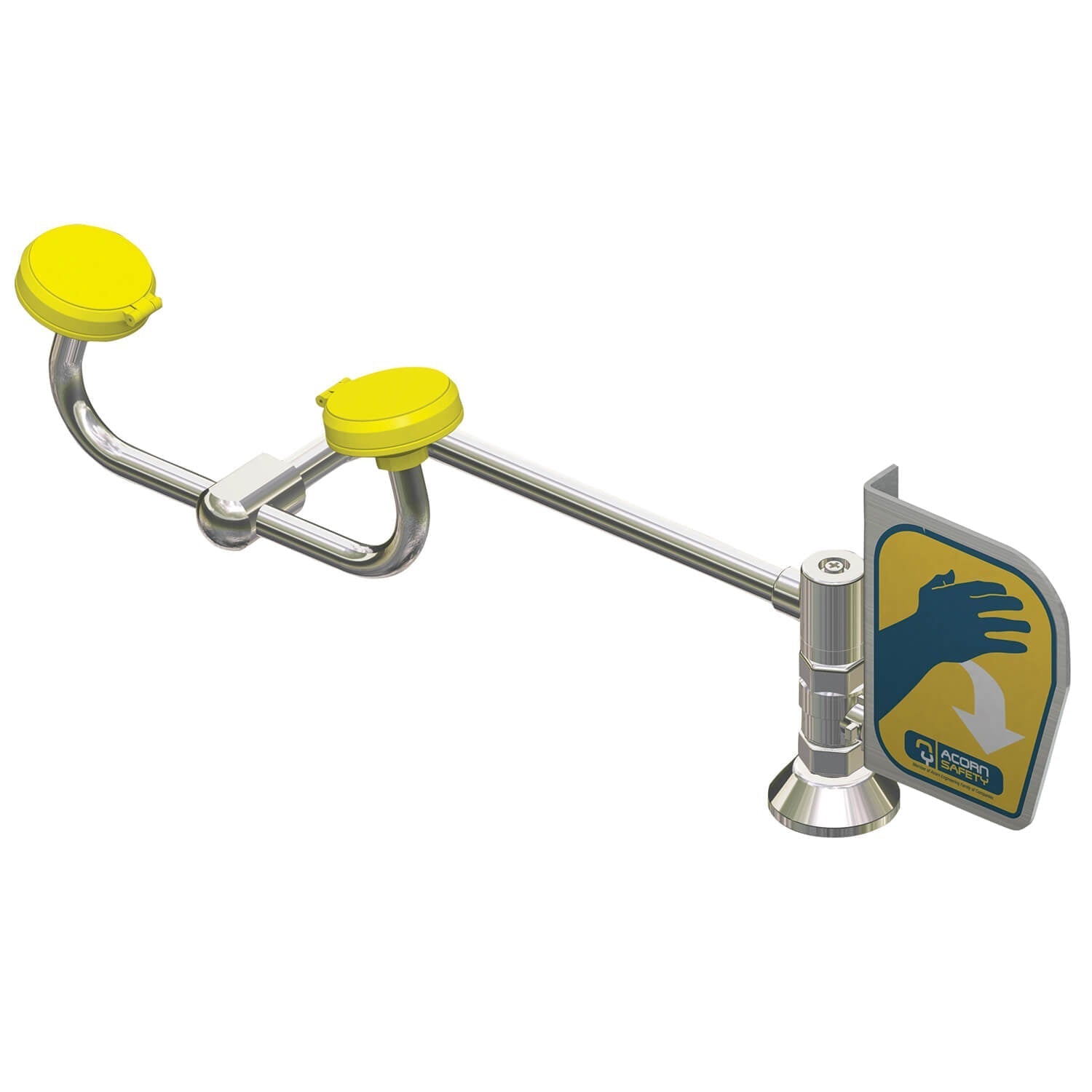

MODEL: S0A60-RH
Orientation
/

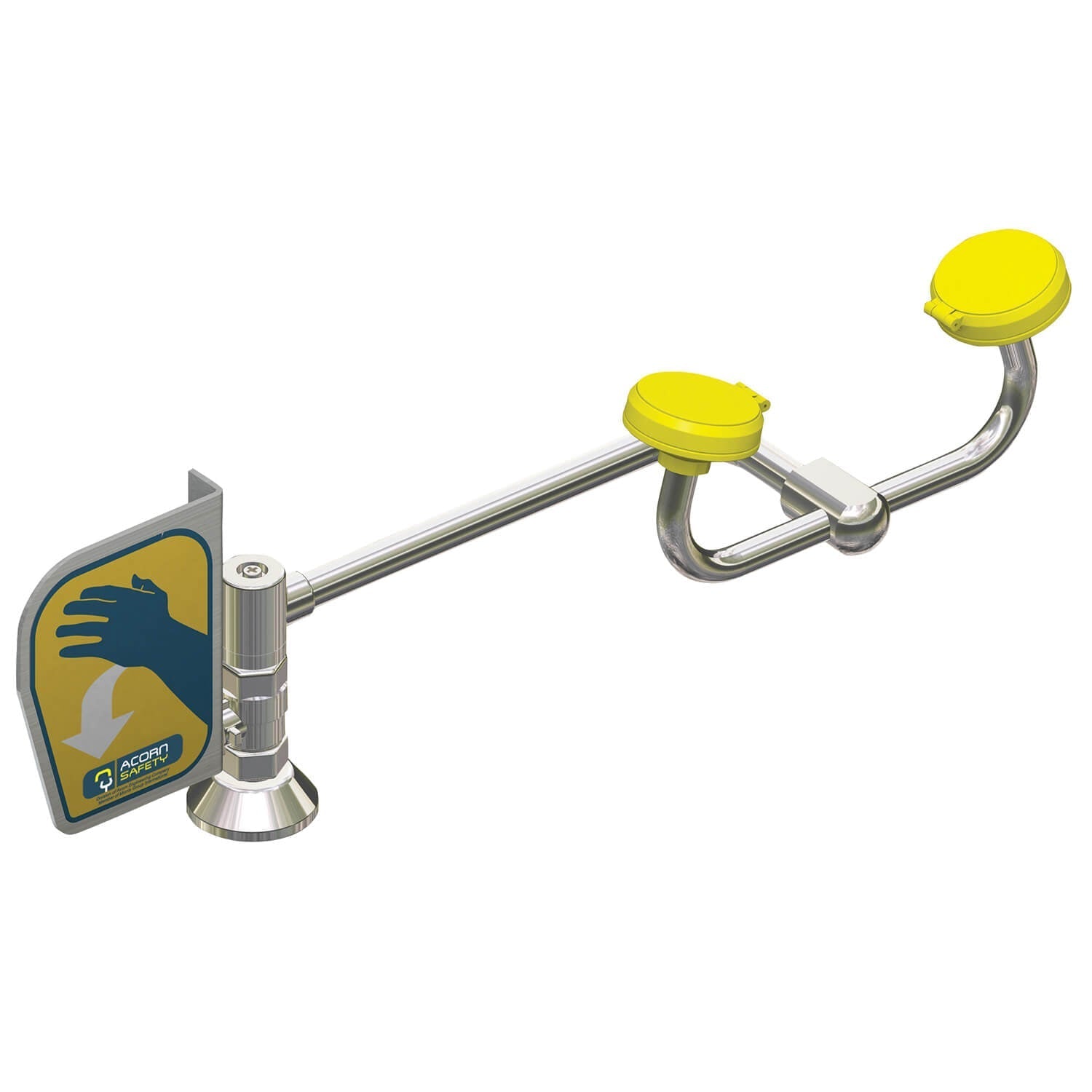

Model S0A60-LH is a deck-mounted, 90° swivel face and eyewash installed next to the sink (sink not provided). The eye-face wash features ABS plastic spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

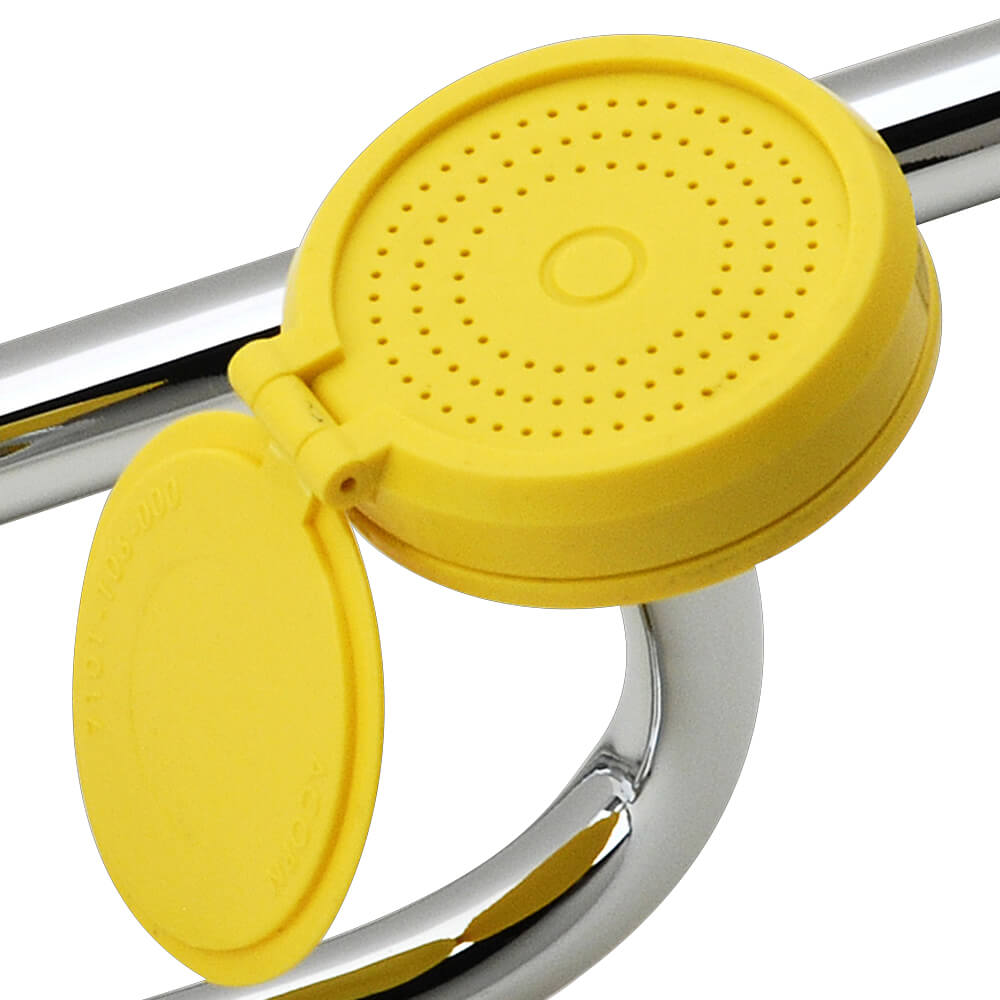

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1/2" NPT female threaded brass, chrome-plated inlet.

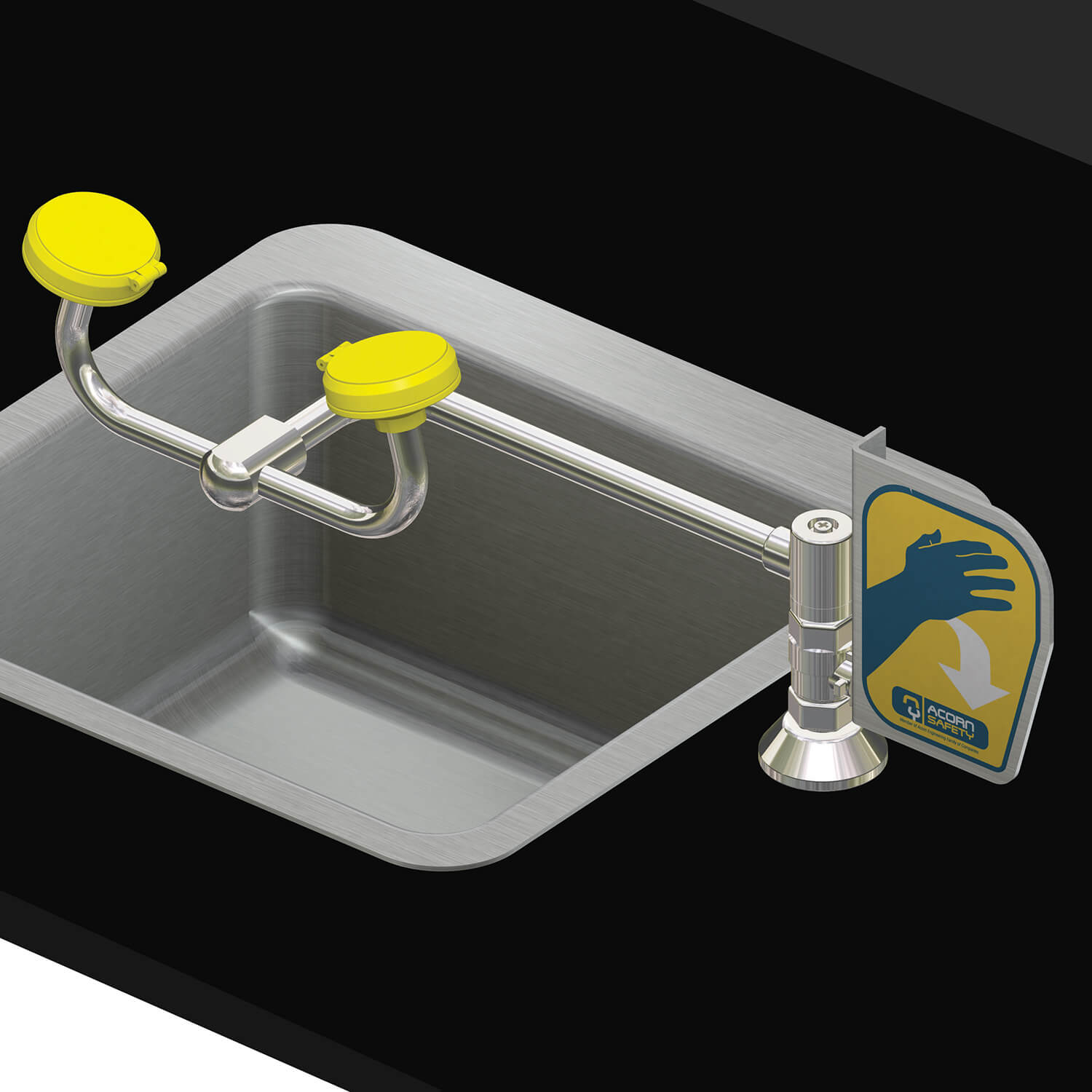

Mounting: Countertop mounting, furnished with all hardware necessary for installation into the counter. The sink and countertop ARE NOT provided.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Shipping calculated at checkout.

Additional Info

ACTIVATION: Push Handle
BRAND: Acorn Safety
COMPLIANCES: ANSI/ISEA Z358.1-2014
CSI DIVISIONS: 22 45 00 - Emergency Plumbing Fixtures
FLOW RATE: Exceeds minimum water flow of 3.0 GPM (11.4L) at 30 PSI (2.0 bar)
MATERIAL: ABS Plastic
MATERIAL DETAILS: ABS Plastic, Chrome-Plated Brass, Brass
TYPE OF MOUNT: Deck Mount
Submittal S0A60 Eye-Face Wash (pdf) Submittal S0A60 Eye-Face Wash
Manual S0A60 Eye-Face Wash (pdf) Manual S0A60 Eye-Face Wash
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
Acorn Safety Kwik Ship® Visual Competitive Cross Reference (pdf) Acorn Safety vs Guardian, Haws, Bradley [S1320, S1340, S1340-BF, S1340-CS1, S2340, S2340-BF, S2340-AS, S2340-AS-BF, SO706, S0406, S1200, S2100, S0P50, S0320, S0340, S0420, S0440, S0A60, S0660, S0960]
