Deck Mount, Swing-Down Eye-Face Wash Station

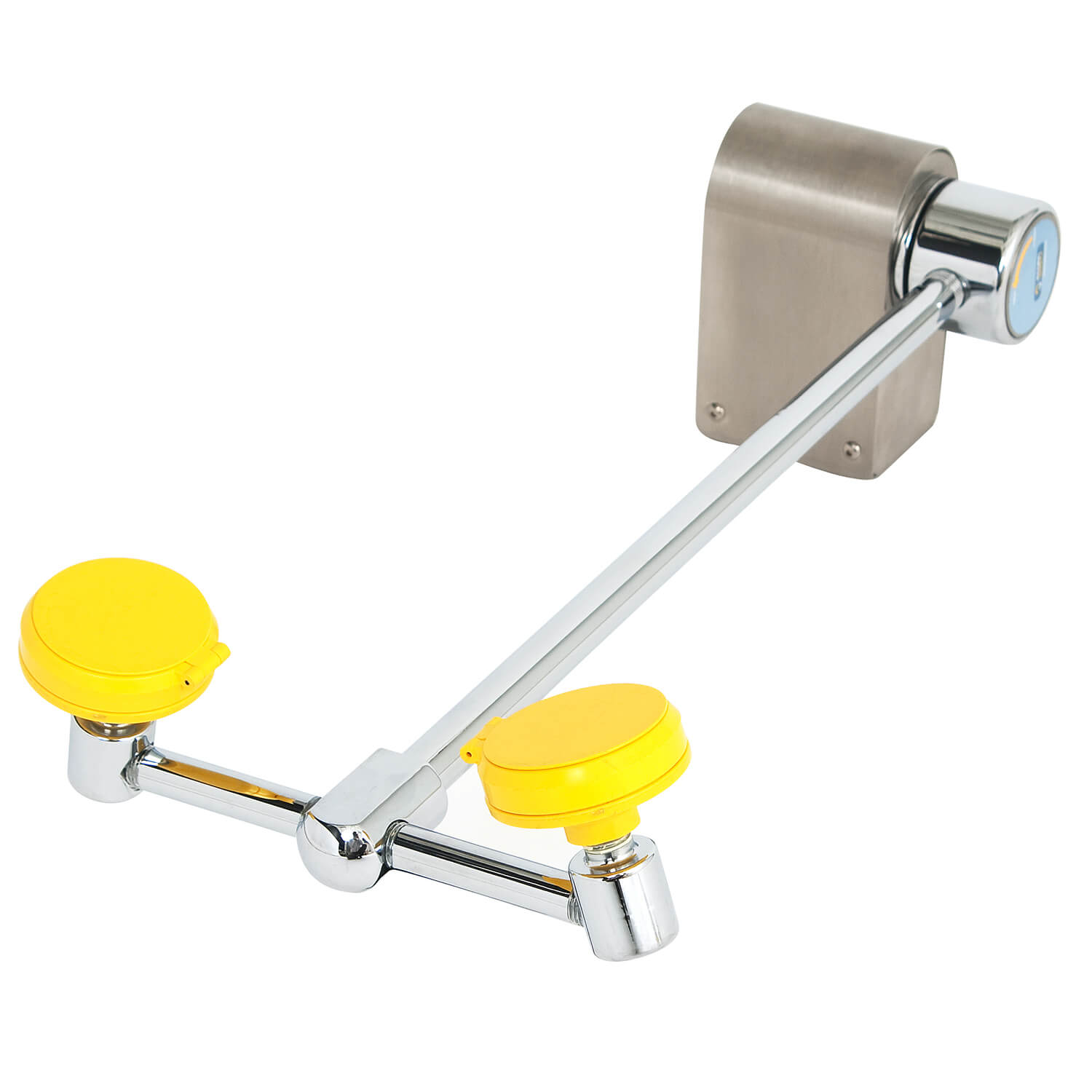

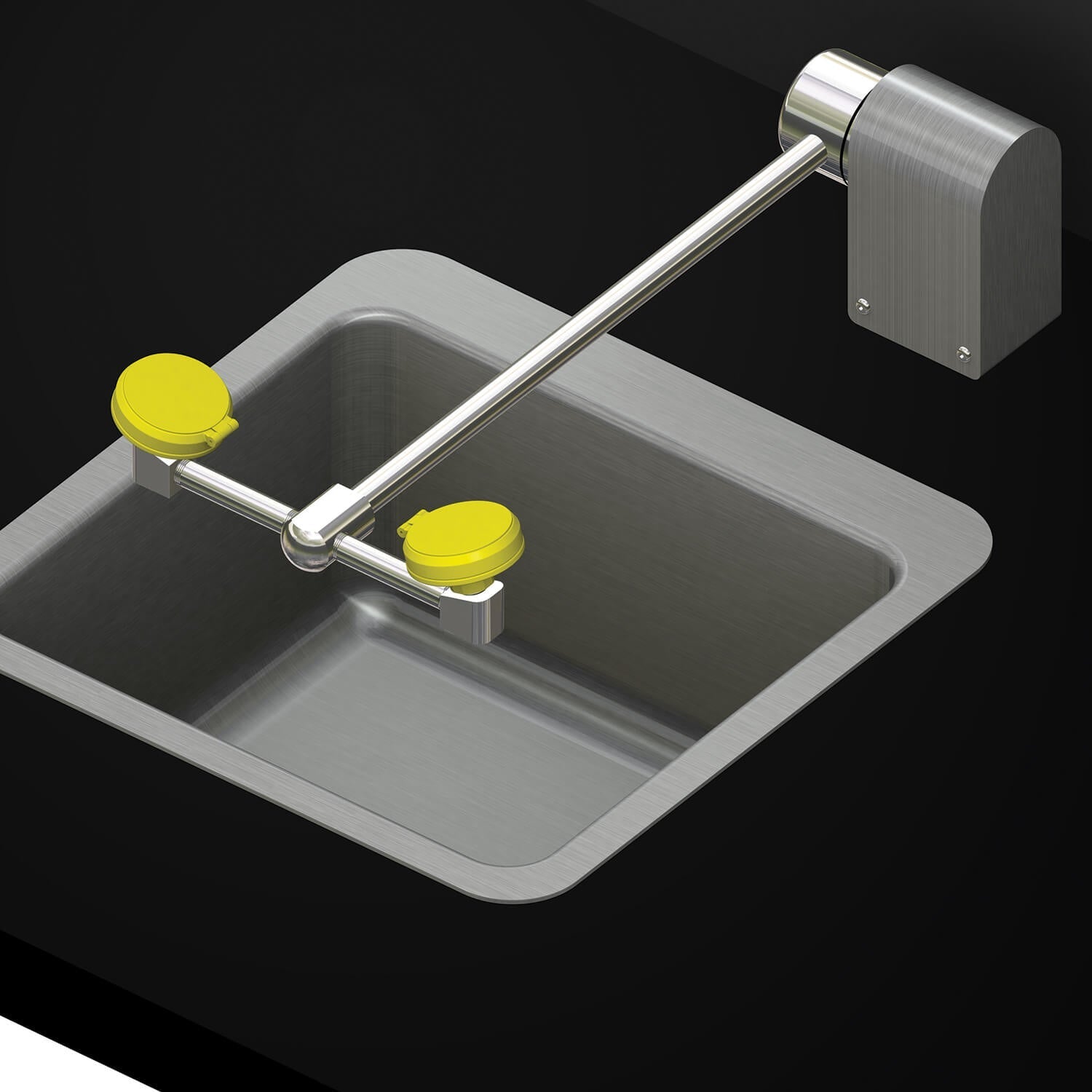

Model S0860 is a deck-mounted, swing-down face and eye wash installed behind the sink (sink not provided). The eye-face wash swings down over the sink from the rear and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

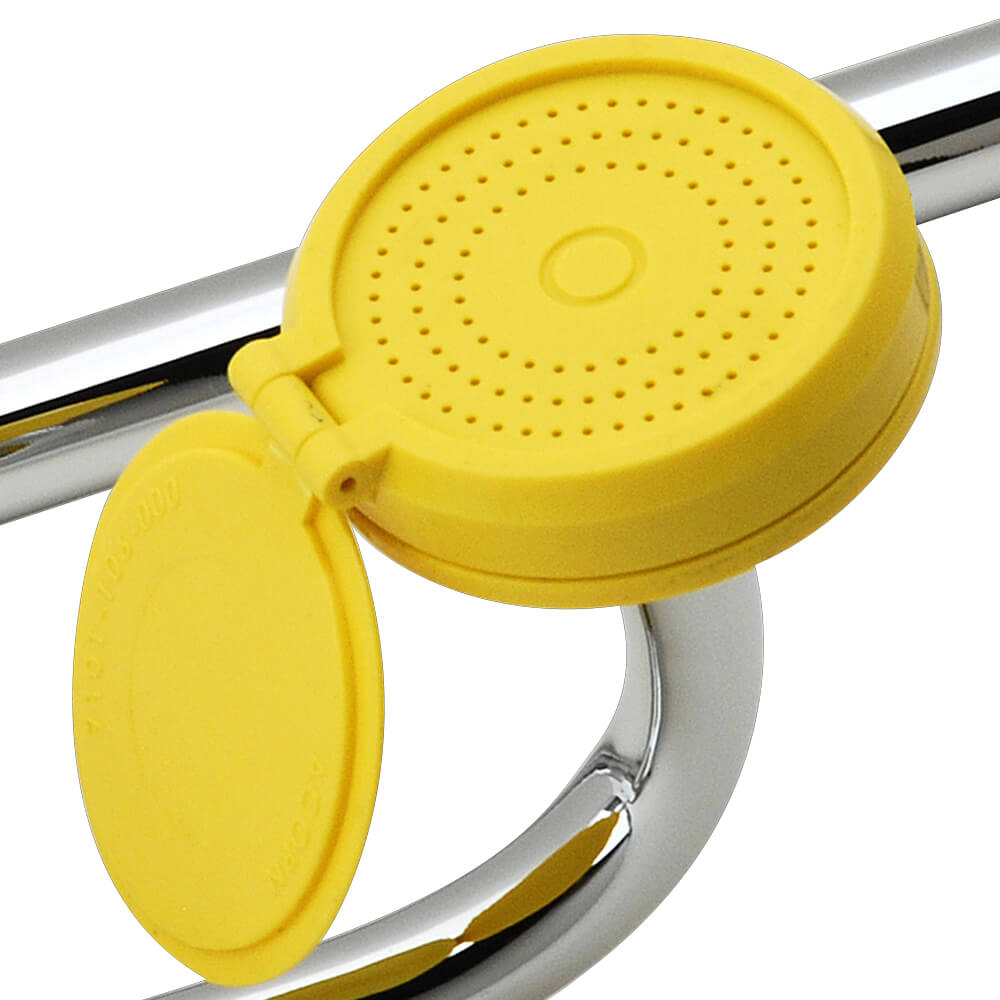

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection

Valve: Swing-down valve is mounted behind the sink on the countertop and has a 50-mesh inline strainer.

Water Supply: 1/2" NPT female threaded brass inlet

Mounting: Deck mounted, 304 stainless steel valve housing.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Sink and Counter: Sink and counter ARE NOT provided.
