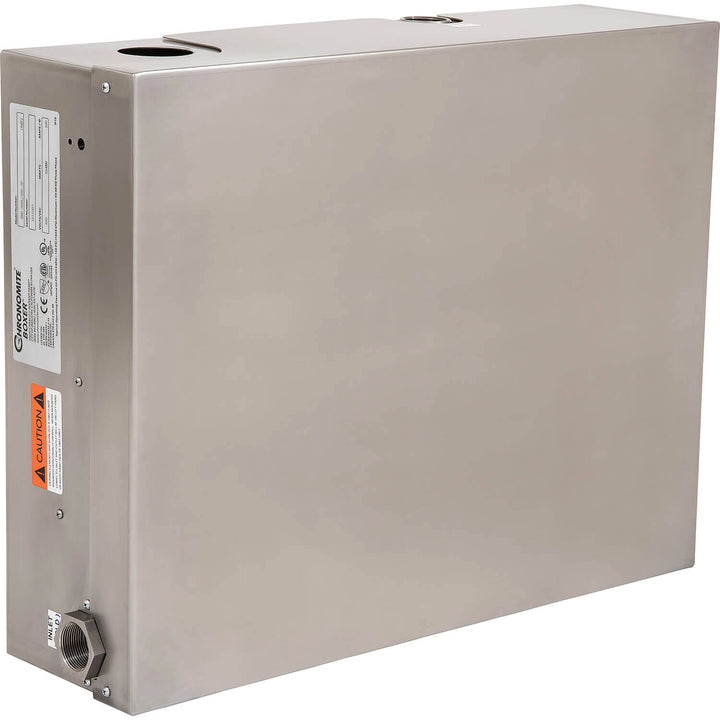

Chronomite - Boxer® Three-Phase - Low Activation - L9 models are manufactured to provide reliable tepid water with flow rates from 2.6 gallons (9.8 liters) to 30 gallon (114 liters) per minute. There is no pressure and temperature relief valve needed (unless required by code), saving time and money on installation.
Applications: For combination Drench Shower with Eye-Face wash, the optimum water temperature is 84°F (28.89°C) for ANSI Z358.1 compliance. The flow rate shall be 20 gallon (75.7 liters) per minute. Activation flow rate is 2.6 gallons (9.8 liters) per minute.
Housing is fabricated from rugged stainless steel.
Element assembly is fabricated from Celcon plastic.
Heating Coils are Nichrome.
Features:
- Uses a digital microprocessor for temperature control - Ultra quick response times for temperature variations- 120 times per second. Microprocessor use is the most energy efficient means of heating water
- Unlimited hot water
- Saves water and energy - 99% energy efficient

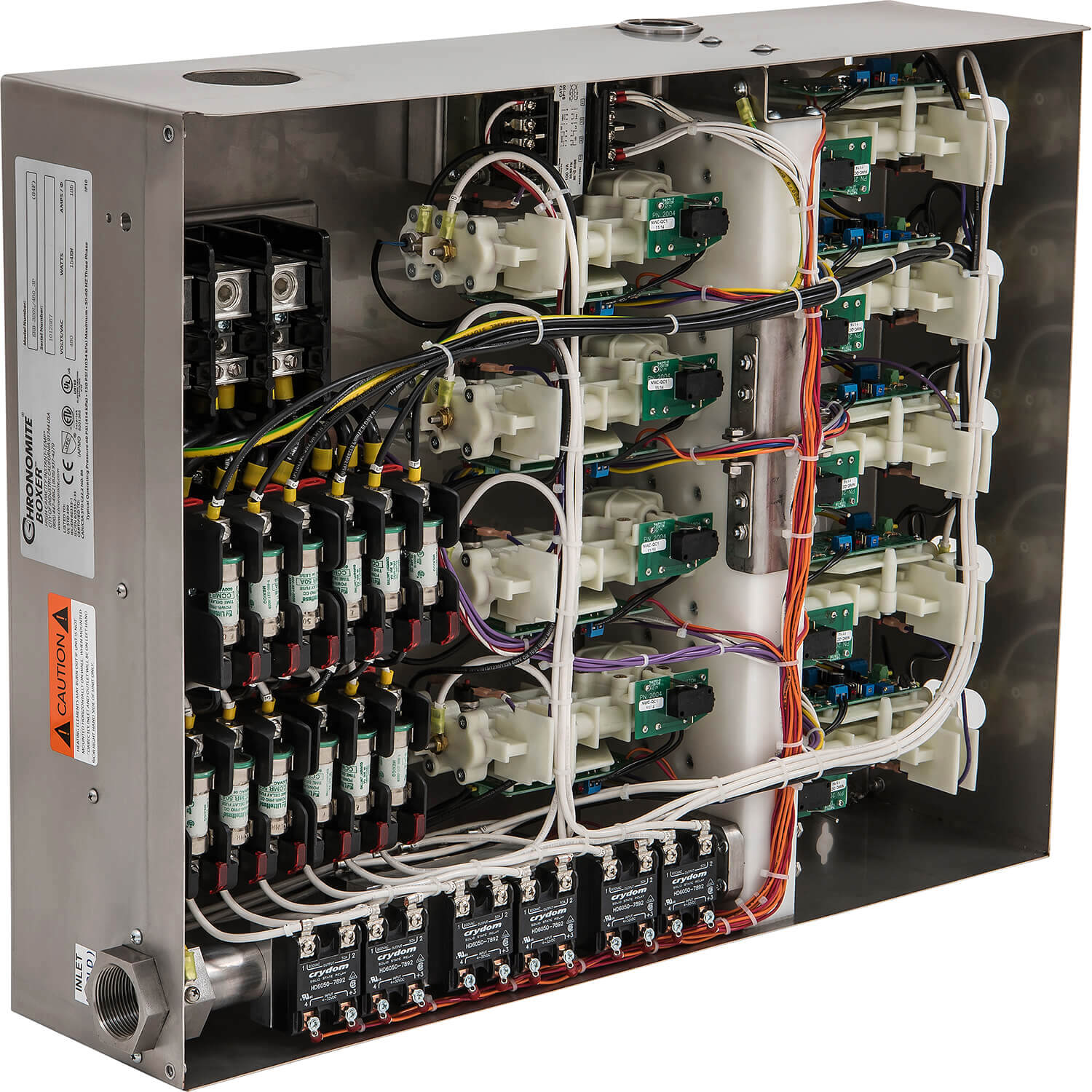

- Safety "“ Quantity 9 independent heater modules, each having a PID controller, flow switch, dual fuse protection, and high limit thermostat. 9 modules are divided into 3 main sections electrically and can be manually reset if the temperature limit is exceeded.
- No solenoids, loss of power = cold water bypass
- Meets applicable building codes including UL, UPC
- Environmentally friendly
