Deck Mount, Swivel Eye-Face Wash Station

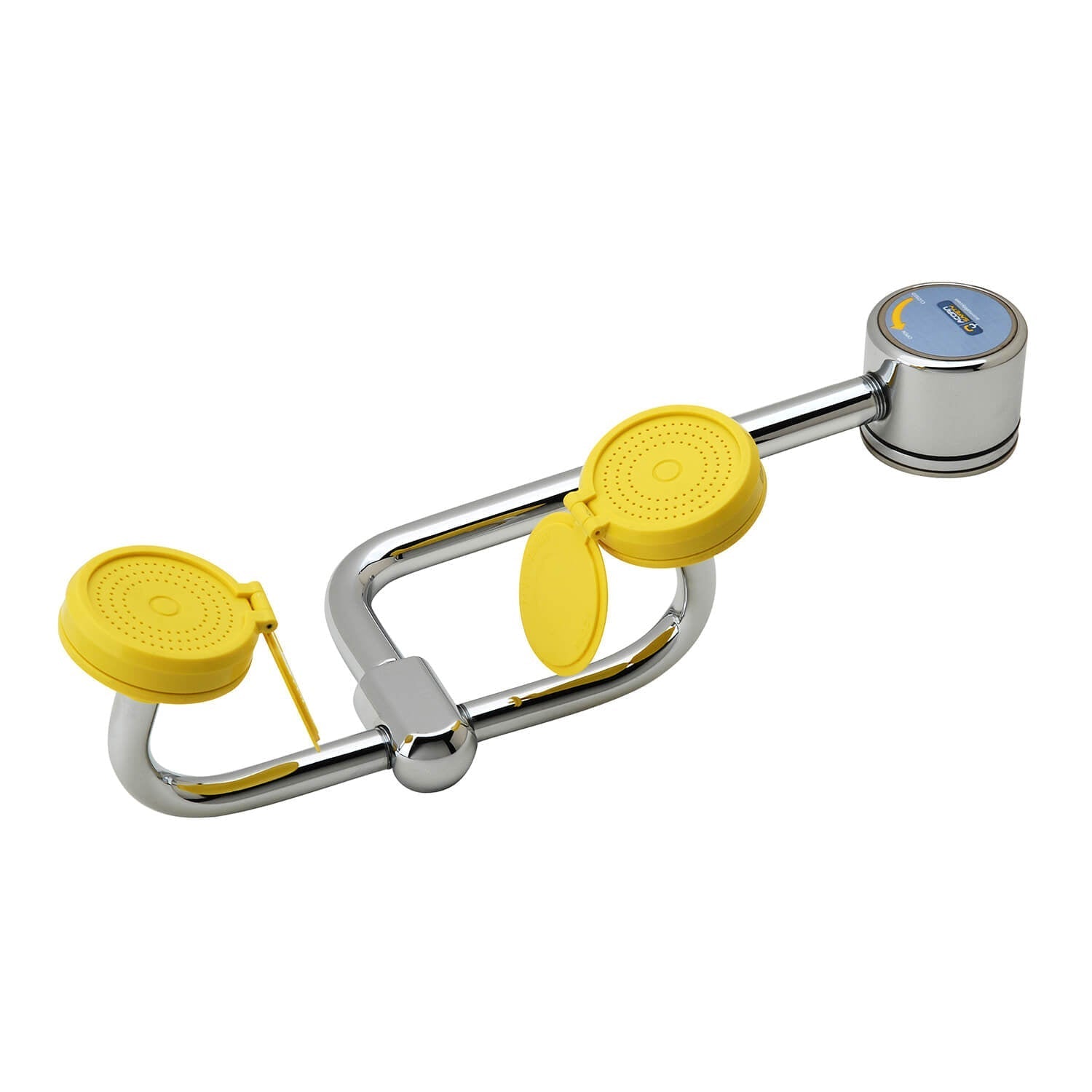

MODEL: S0960-RH
Orientation
/

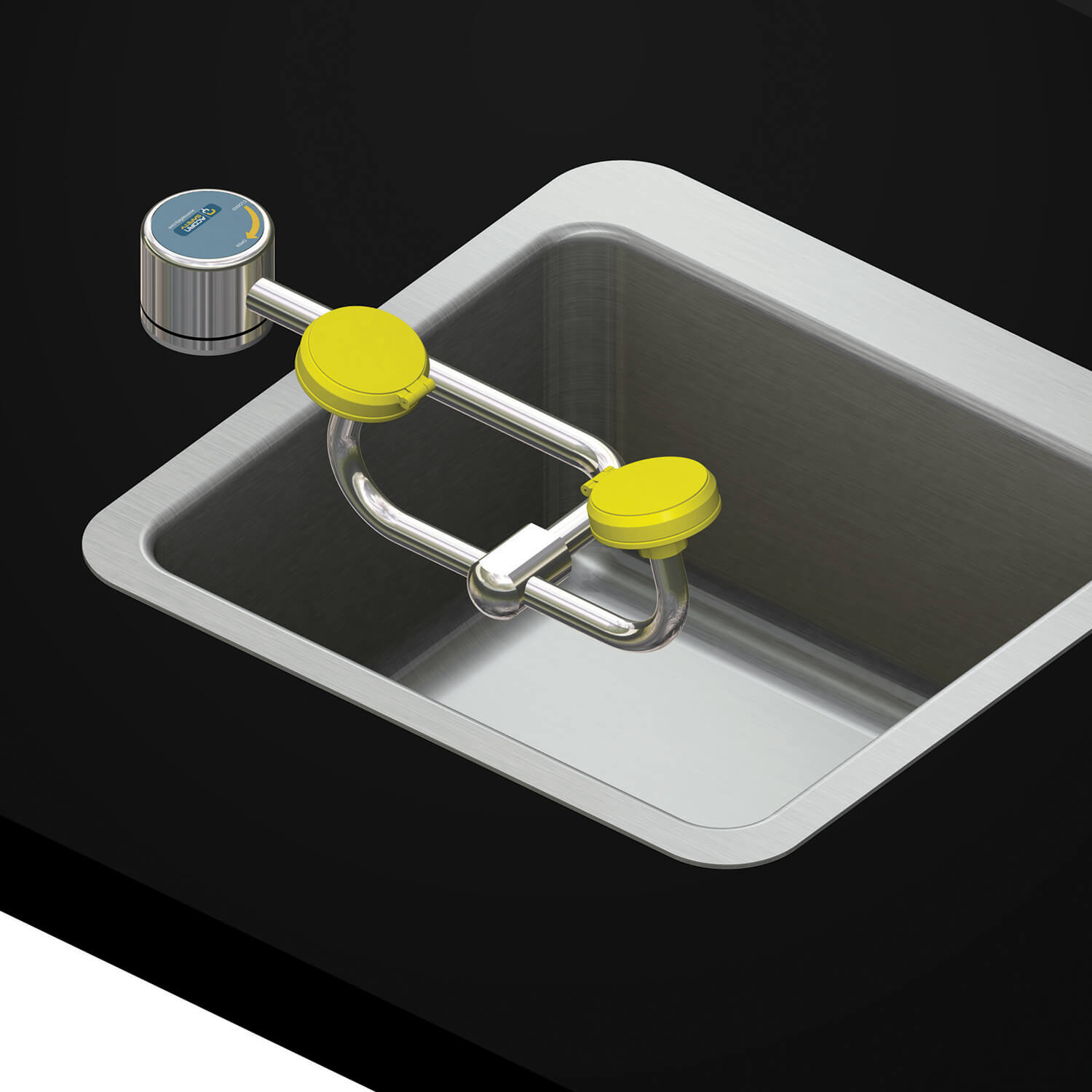

Model S0960 is a deck-mounted, swivel eye-face wash installed next to the sink (sink is not provided). The eye-face wash swings out horizontally over the sink from the specified side and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back into its original position for storage.

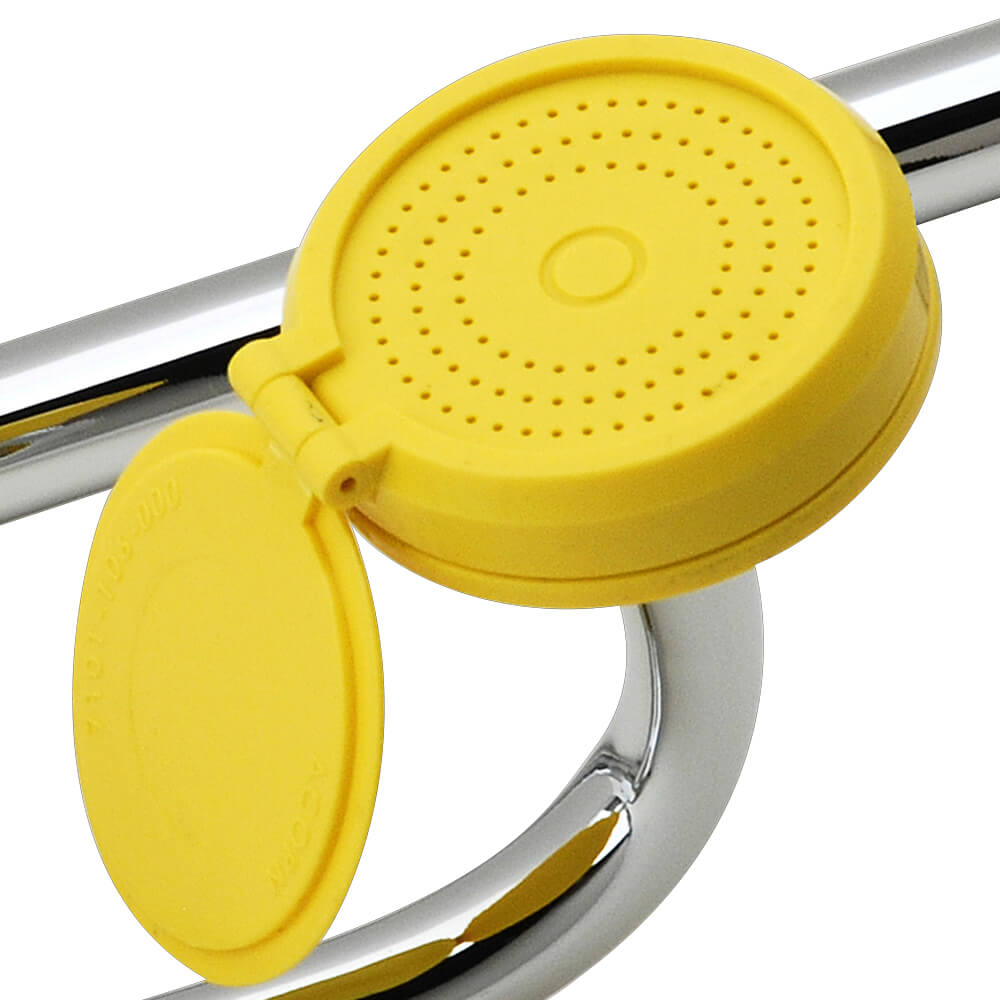

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: Swivel valve is mounted underneath of the deck and has a 50 mesh inline strainer

Water Supply: 1/2" NPT female threaded brass inlet.

Mounting: Countertop mounting, furnished with all hardware necessary for installation into the counter.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Sink and Counter: Sink and counter ARE NOT provided.

Shipping calculated at checkout.

Additional Info

ACTIVATION: Automatic (Swing-Activated)
BRAND: Acorn Safety
COMPLIANCES: ANSI/ISEA Z358.1-2014
CSI DIVISIONS: 22 45 00 - Emergency Plumbing Fixtures
FLOW RATE: Exceeds minimum water flow of 3.0 GPM (11.4L) at 30 PSI (2.0 bar)
MATERIAL: ABS Plastic
MATERIAL DETAILS: ABS Plastic, Brass
TYPE OF MOUNT: Deck Mount
Submittal S0960 Eye-Face Wash (pdf) Submittal S0960 Eye-Face Wash
Manual S0960 Eye-Face Wash (pdf) Manual S0960 Eye-Face Wash
Revit Drawings S0960-LH, S0960-RH Eye-Face Wash (zip) Revit Drawings S0960-LH, S0960-RH Eye-Face Wash
CAD Drawings S0960-LH, S0960-RH Eye-Face-Wash (zip) CAD Drawings S0960-LH, S0960-RH Eye-Face-Wash
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
Acorn Safety Kwik Ship® Visual Competitive Cross Reference (pdf) Acorn Safety vs Guardian, Haws, Bradley [S1320, S1340, S1340-BF, S1340-CS1, S2340, S2340-BF, S2340-AS, S2340-AS-BF, SO706, S0406, S1200, S2100, S0P50, S0320, S0340, S0420, S0440, S0A60, S0660, S0960]
