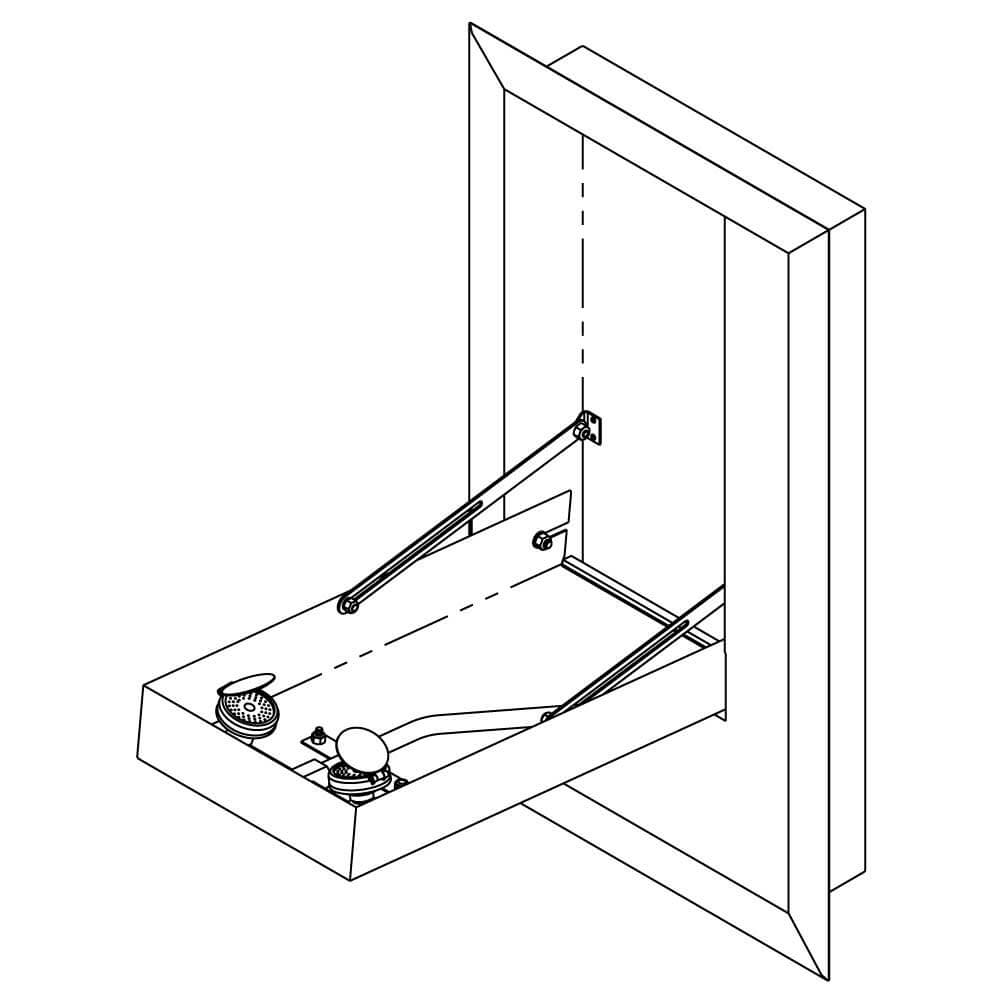

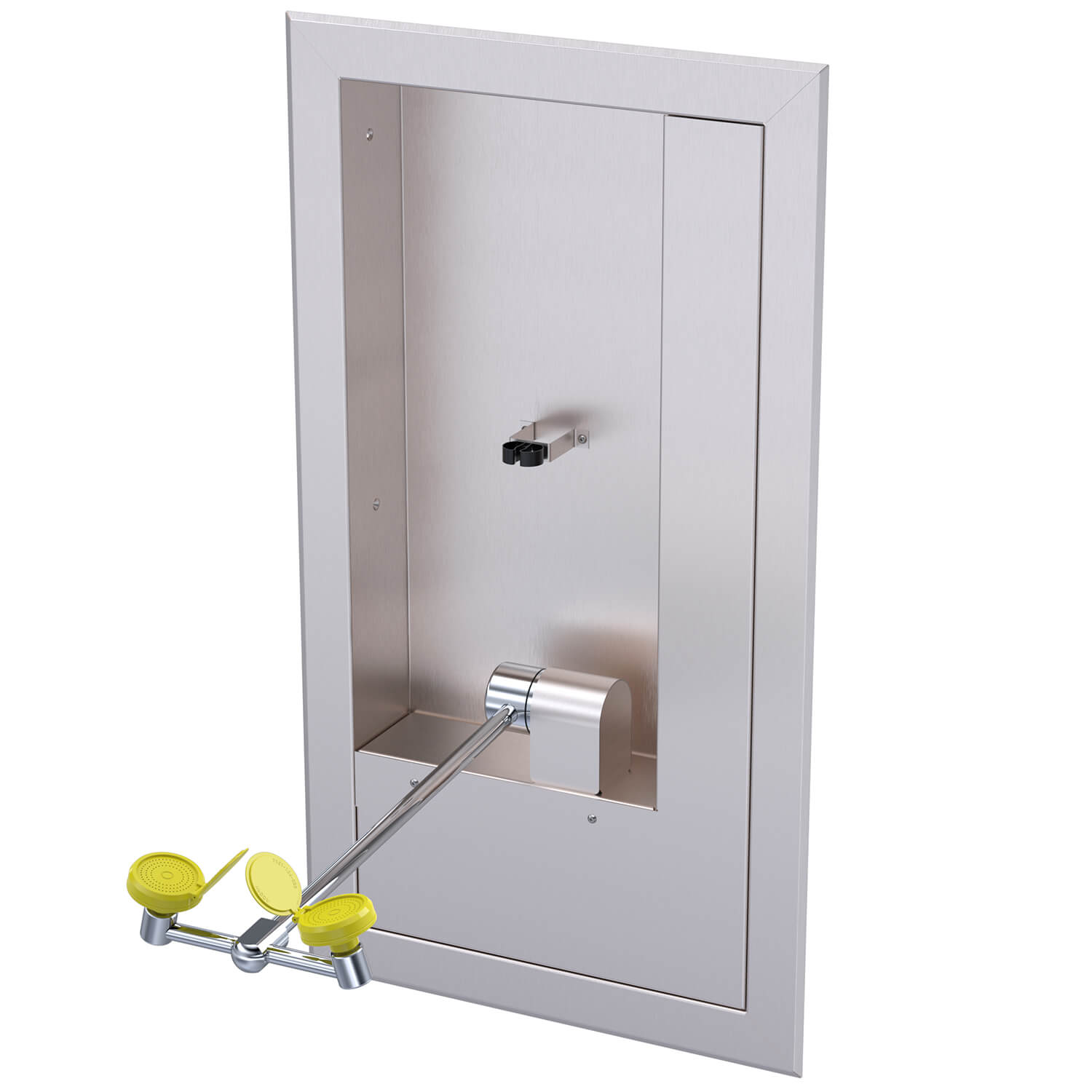

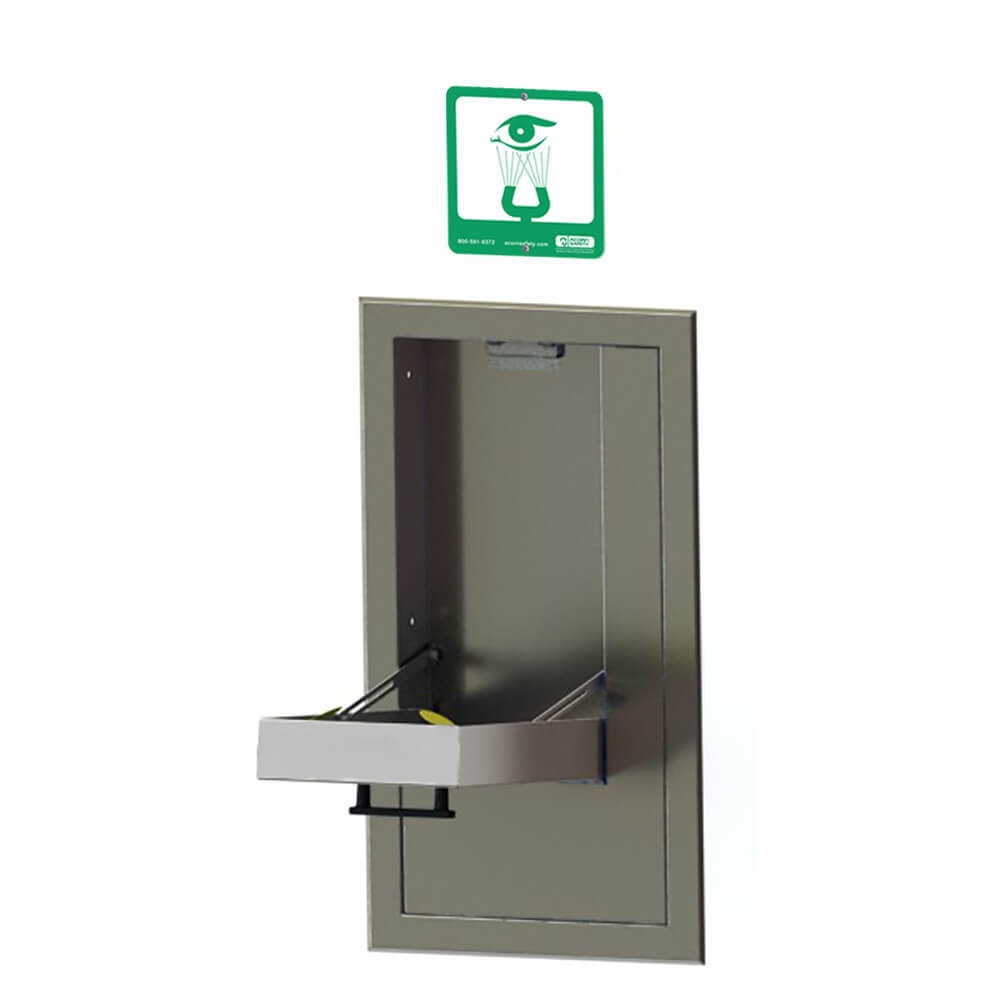

S0560 is a recessed, wall-mounted swing-down face and eye wash that is installed in the wall with a stainless steel cabinet and ABS plastic eye-face wash spray heads. The eye-face wash swings down horizontally and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into the cabinet for storage.

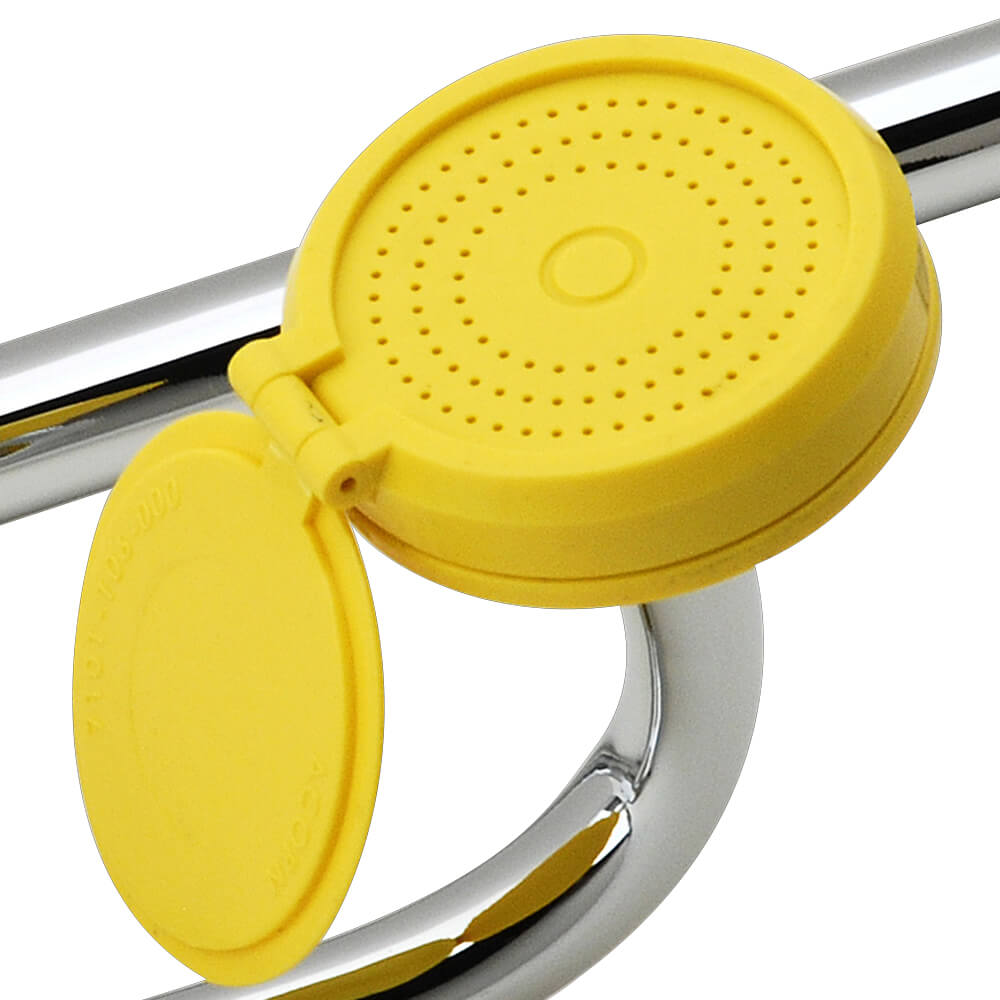

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.
Valve: Swing-down valve is mounted in the cabinet on the wall and has a 50 mesh inline strainer.
Water Supply: 1/2" NPT female threaded brass inlet.
Mounting: Wall mounted, 18 gauge stainless steel cabinet.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.
