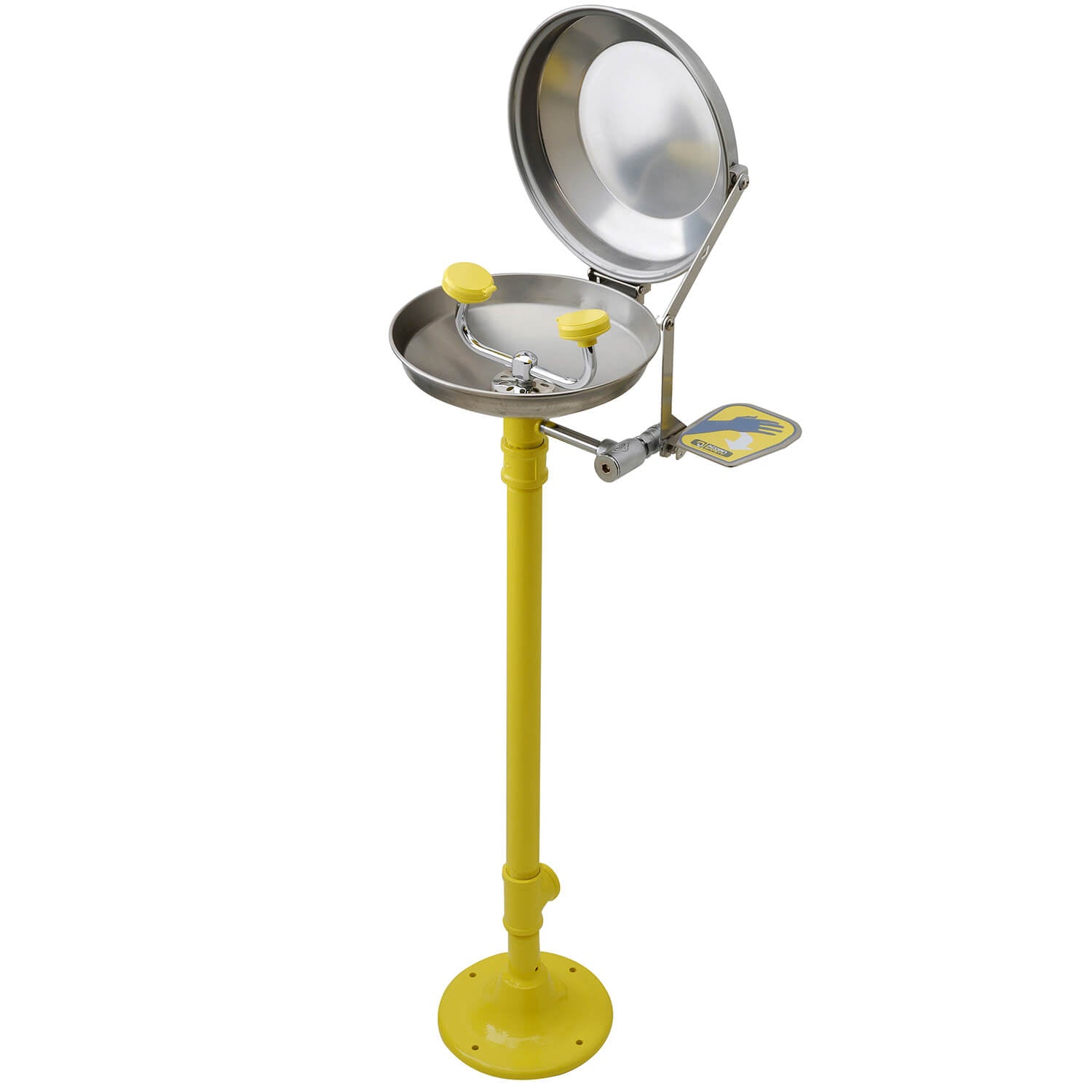

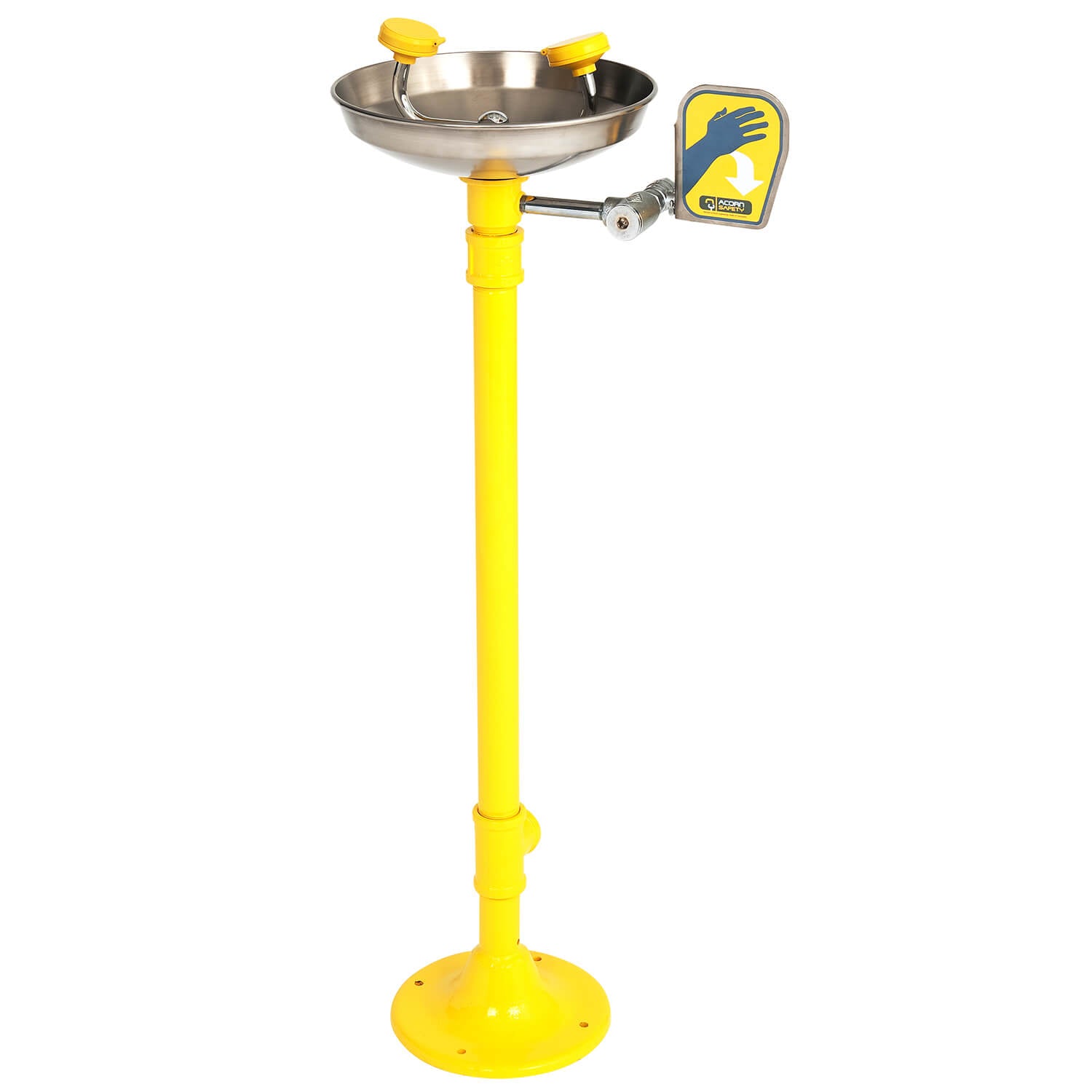

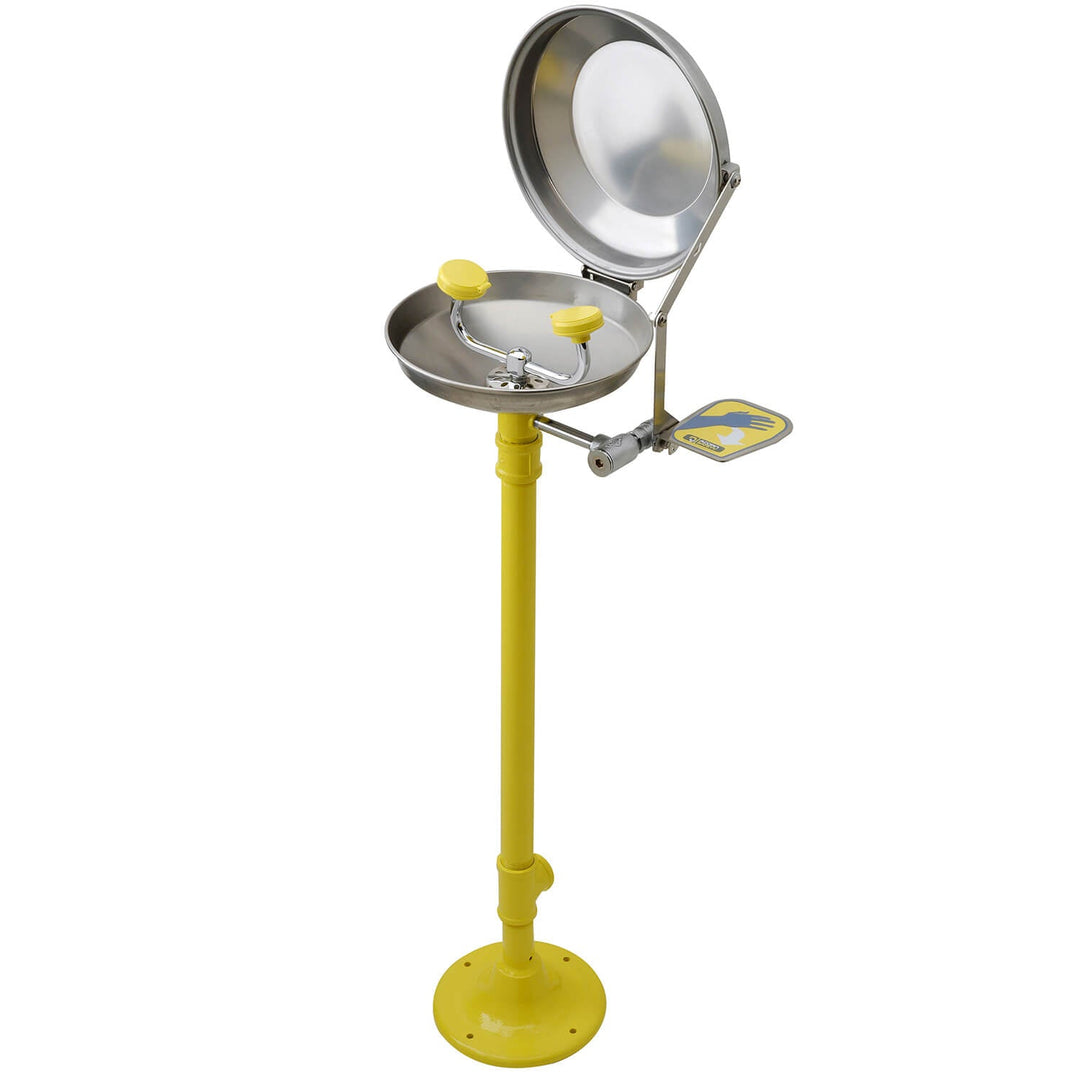

S0340 is a pedestal-mounted face and eye wash with a stainless steel bowl, ABS plastic face/eye wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.
Spray Head Assembly: ABS yellow plastic face/eye wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An antimicrobial agent is molded into the ABS material, providing integrated protection.
Valve: 1/2" NPT chrome-plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.
Water Supply: 1/2" NPT female threaded, chrome-plated brass inlet.
Waste: 1-1/4" NPT female outlet.

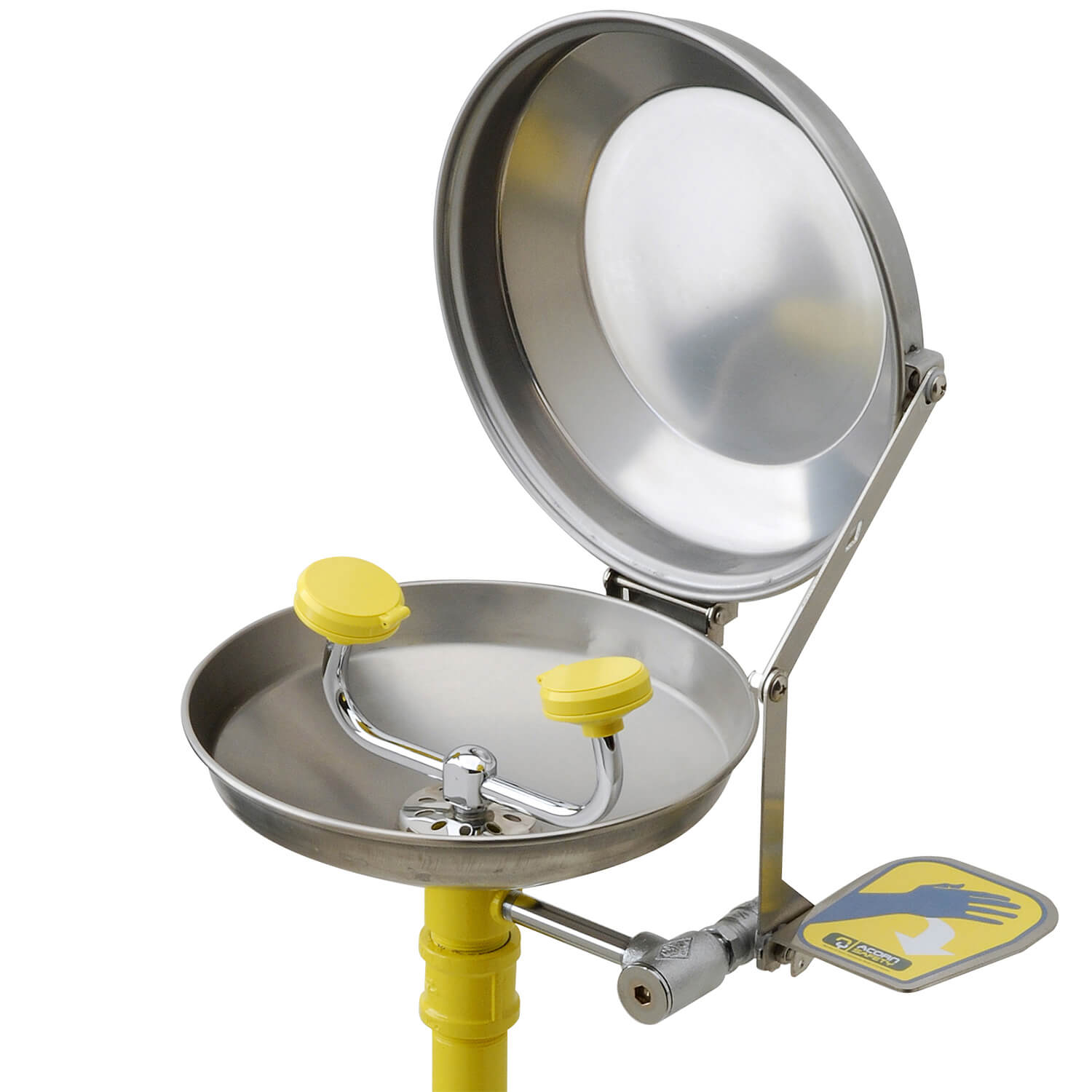

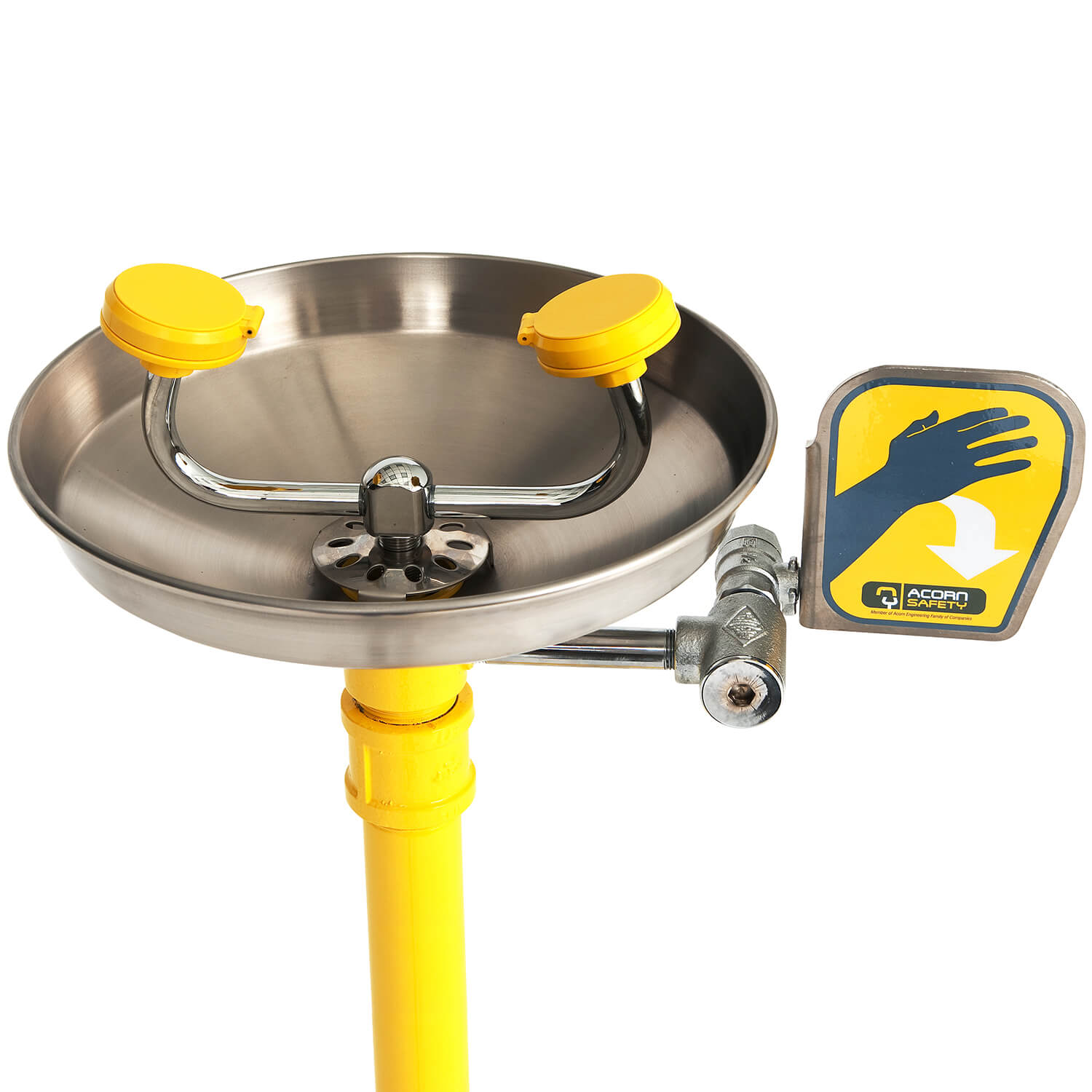

Bowl: Stainless steel, 11-3/4" diameter bowl.
Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder coated finish.
Universal Sign: ANSI-compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
