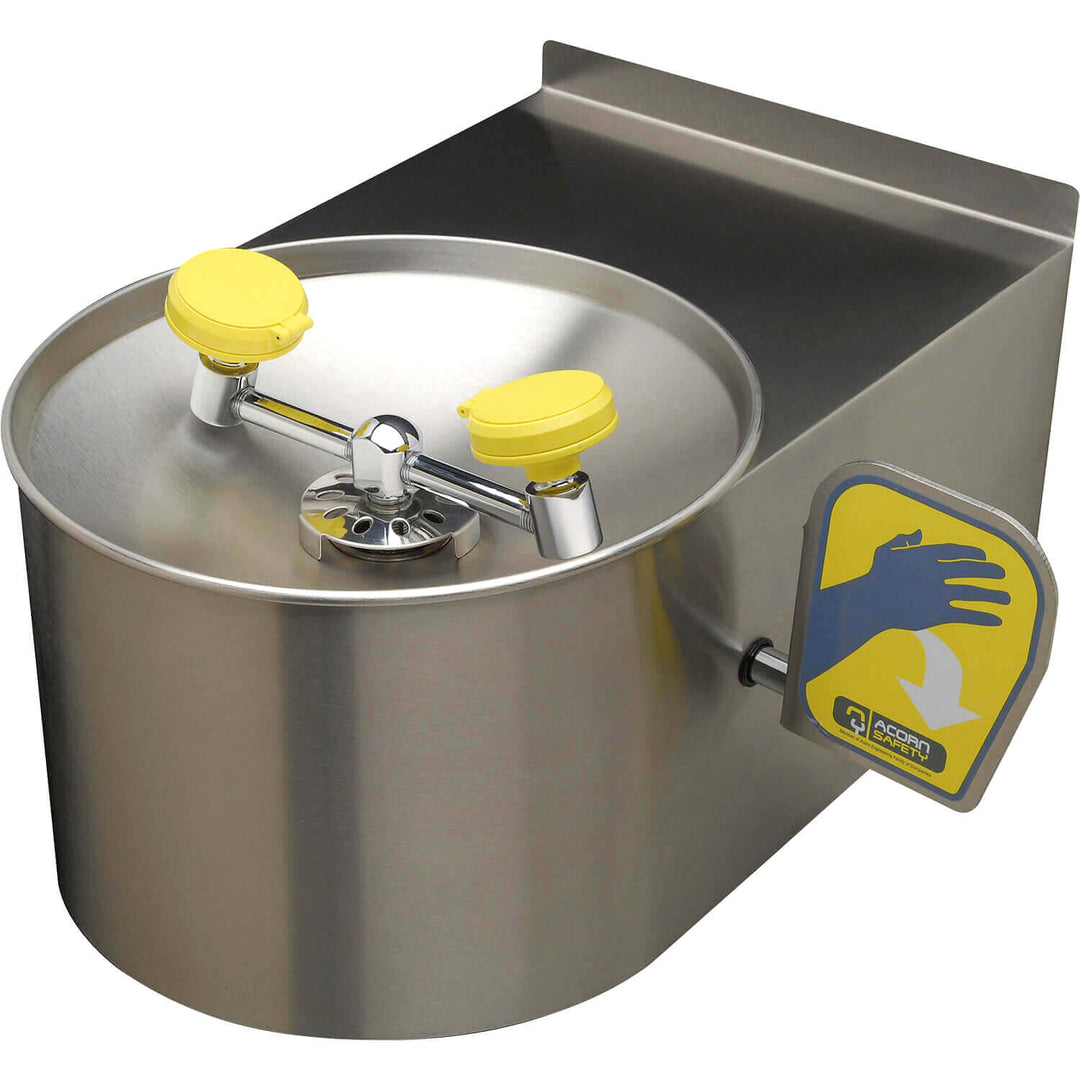

Barrier-Free Wall Mount Eye-Face Wash Station with Shrouded Stainless Steel Bowl
Barrier-Free Wall-Mounted Eye Wash with Shrouded Stainless Steel Bowl

Barrier-Free Wall Mount Eye-Face Wash Station with Shrouded Stainless Steel Bowl

MODEL: S0480-BF
/

Model S0480-BF is a barrier-free wall-mounted face and eye wash, with a stainless steel bowl and shrouded wrap-around skirt, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: 1/2" 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1/2" NPT female threaded, chrome-plated brass inlet.

Waste: Chrome-plated brass, 1-1/4" OD tailpiece.

Bowl: 18 gauge stainless steel, 11-3/4" diameter bowl with a shrouded wrap-around skirt.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Shipping calculated at checkout.

Additional Info

TYPE OF MOUNT: Wall Mount
Submittal S0480-BF Eye-Face Wash (pdf) Submittal S0480-BF Eye-Face Wash
Manual S0480 and S0480-BF Eye-Face Wash (pdf) Manual S0480 and S0480-BF Eye-Face Wash
S0480-BF Eye-Face Wash Revit Drawing (rfa) S0480-BF Eye-Face Wash Revit Drawing
S0480-BF Eye-Face Wash CAD Drawing (zip) S0480-BF Eye-Face Wash CAD Drawing
Acorn Safety Products Brochure (pdf) Acorn Safety Products Brochure
Acorn Safety Equipment Check List (pdf) Acorn Safety Equipment Check List
