Wall-Mounted, Pushbutton Drinking Fountain with All-Stainless Steel Water Bottle Filling Station - In-Unit Refrigeration (8 GPH), ADA

This indoor water bottle filling station is an eco-friendly alternative to single-use plastic. With a slimmer body and more inviting aesthetics than a traditional bottle filler, it ensures maximum style, functionality, and hydration.

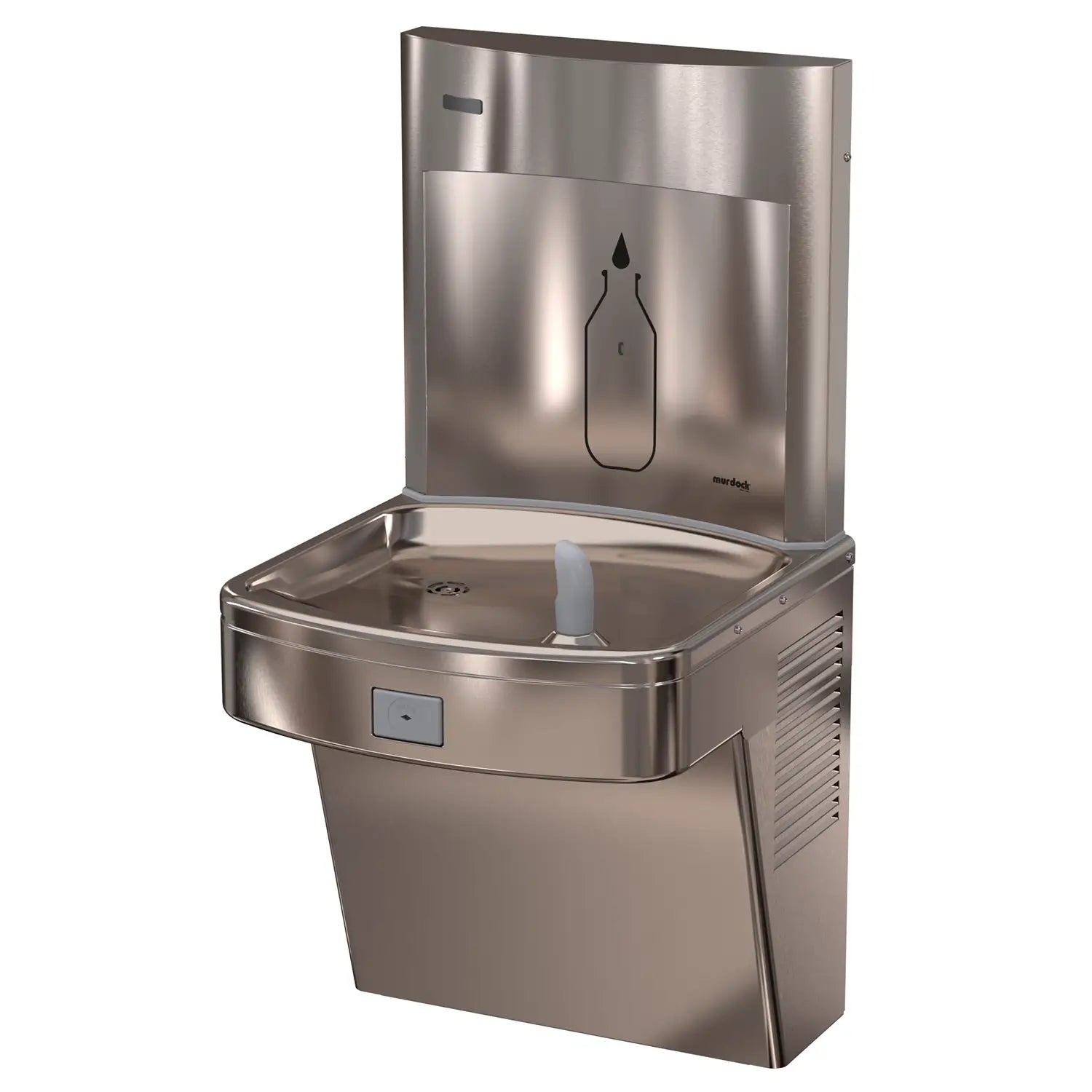

The A171408F-UG-BF12S-BCD-WF3EZ is an ADA-compliant combination drinking fountain and water bottle filling station with in-unit refrigeration. Rough-ins match other manufacturers’ water coolers for easy replacement, and its design makes access and service a breeze.

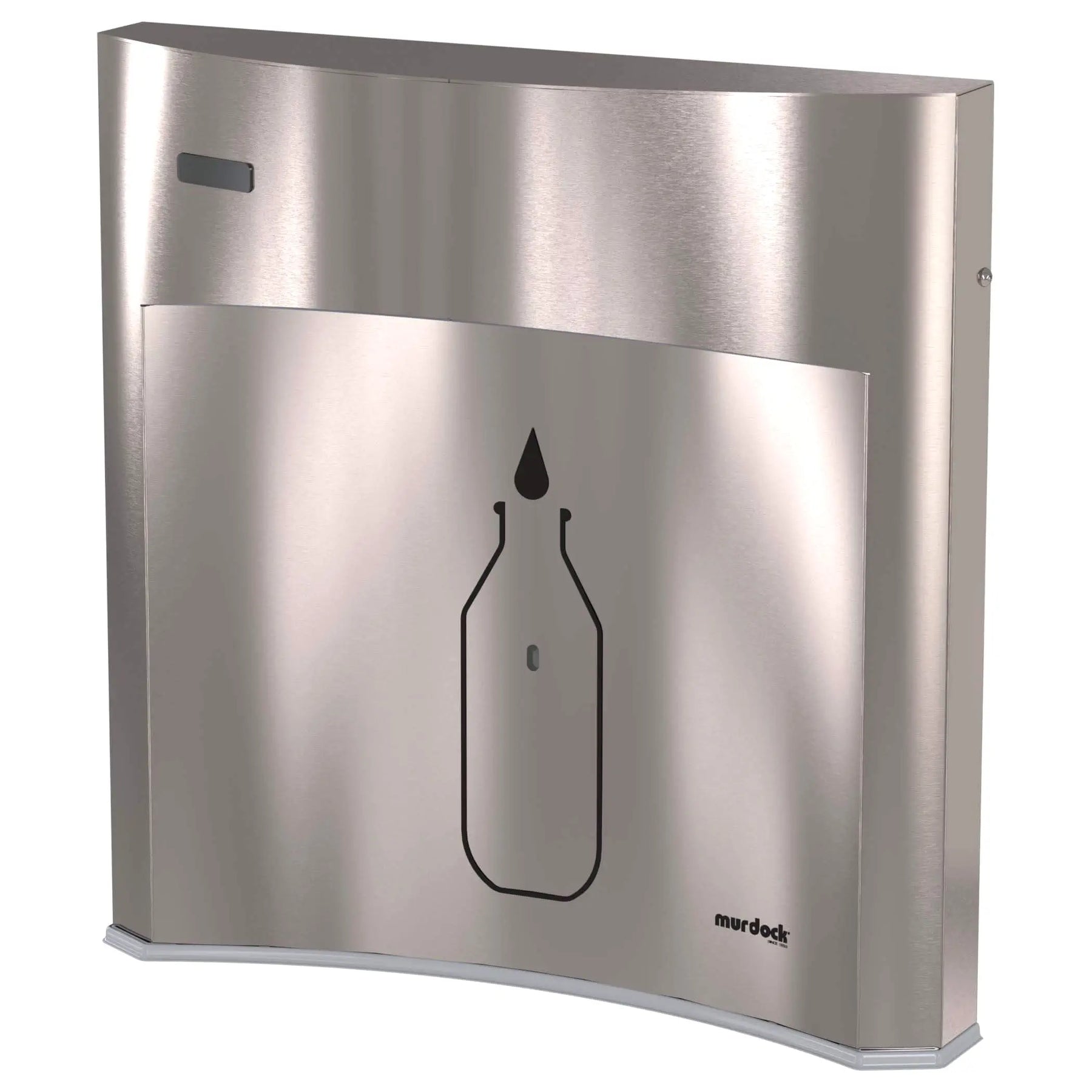

The Bottle Filler is stainless steel bottle filler that can be added to enhance any A17 series drinking fountain. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.

Bottle Filler Features

• Heavy-gauge type 304 stainless steel polished to #4 satin finish
• Vandal resistant, seamless alcove
• ADA compliant
• Touchless sensor operation
• 120V AC/9V DC plug-in transformer for sensor operation
• 1.2 Gallon (4.54 liter) per minute laminar flow nozzle
• 20 second maximum run time
• Bottle counter display with LED illumination and filter status lights (available option for sensor bottle filler)
• Auto-Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
• Rated for indoor and outdoor use

Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.

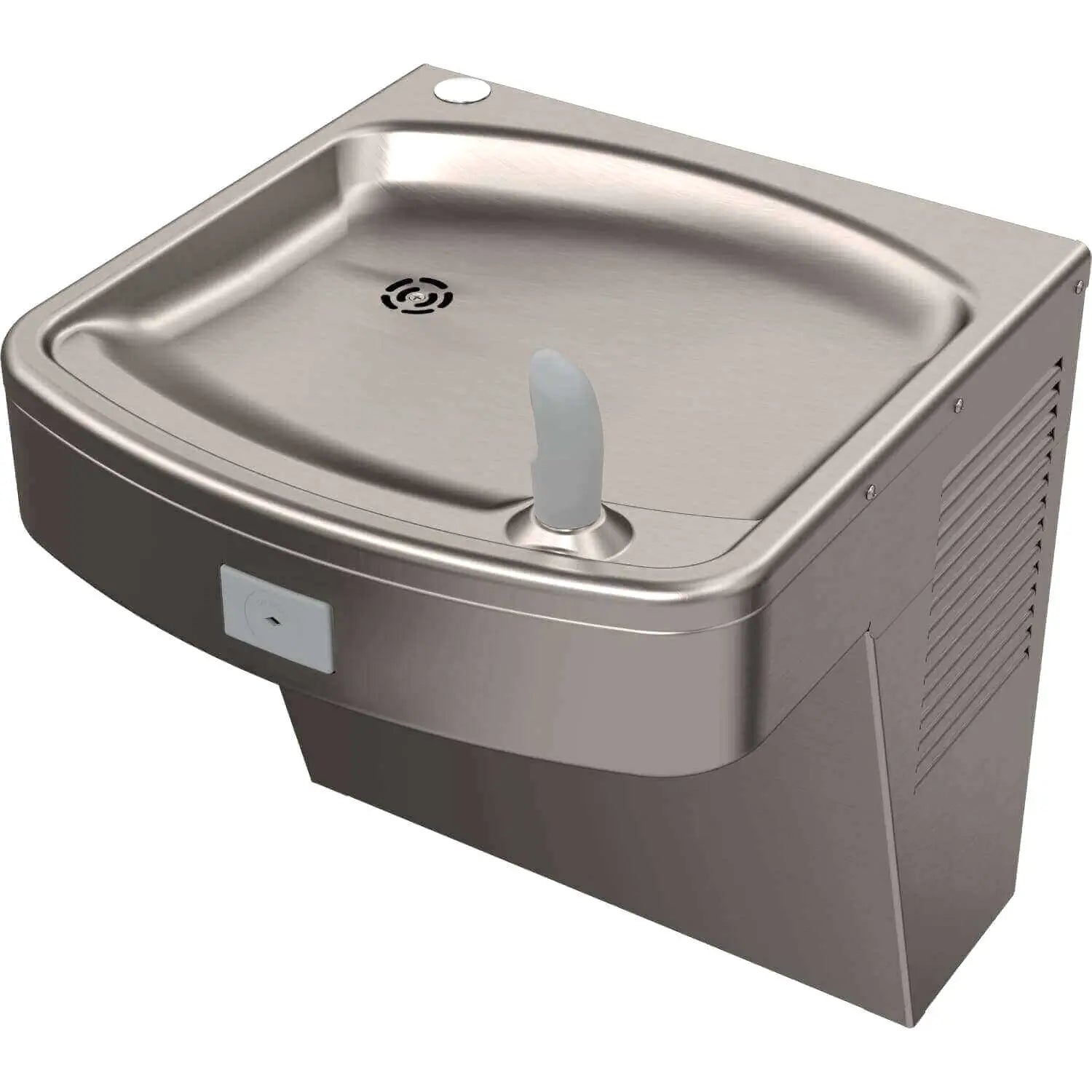

Electric Water Cooler Features

• Crisp, chilled water at 8 gallons (30.28 liter) per hour
• Single uncomplicated rectangular mechanical activation button
• Flexible, antimicrobial, non-squirt bubbler or stainless steel bubbler
• All-stainless steel
• Child or Adult ADA Compliant when properly installed

Water Filter

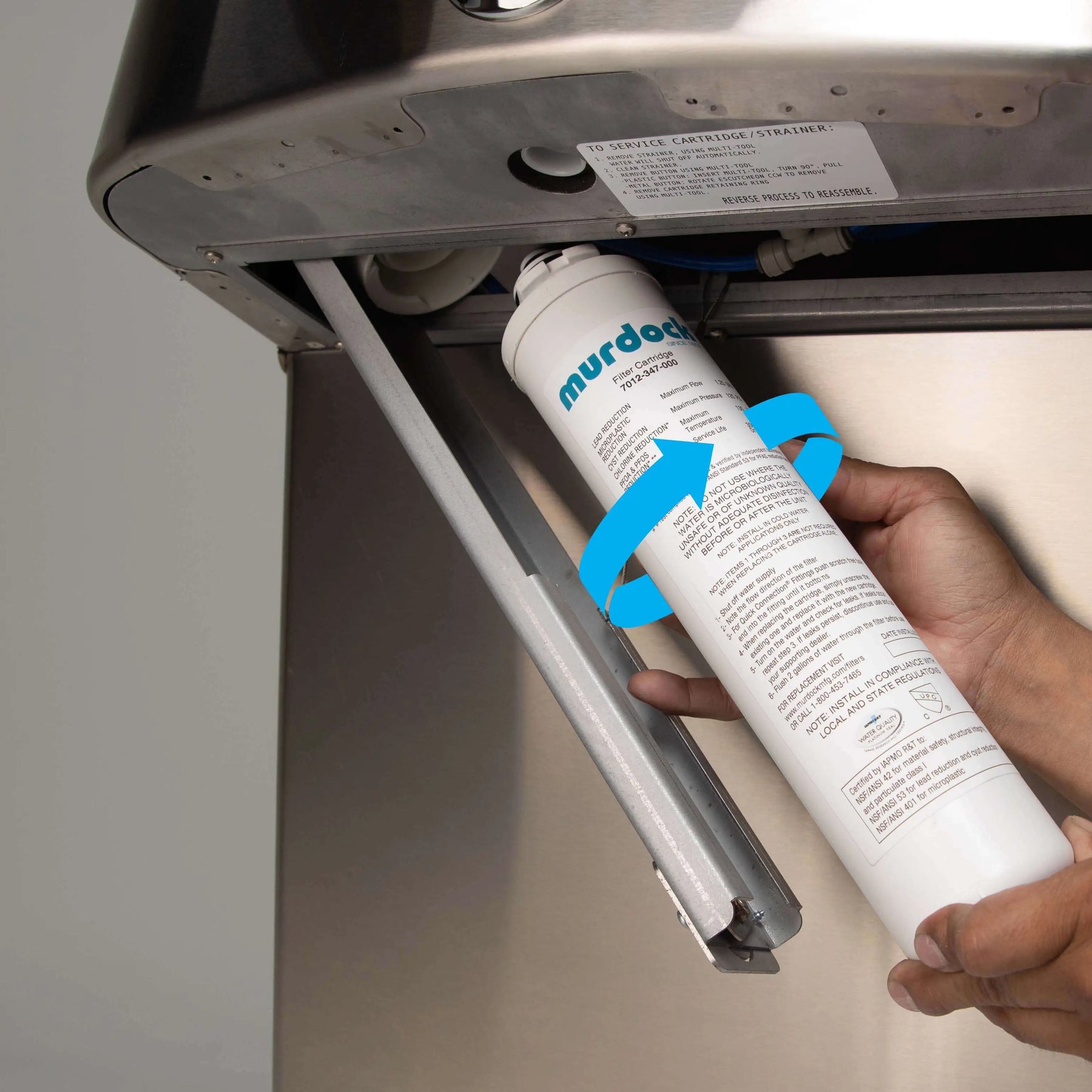

The Water Cooler provided features a filter assembly allowing for fast and easy water filter changes without removing the shroud. The filters used in the assembly is compliant to the following:

• NSF 42
  The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
• NSF 53
  NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
• NSF 401
  In addition to NSF 42 and 53, the WF3EZ Filter/Door Assembly provides PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
