MODEL: DSW4120
Regular price $1,720.40
/
  • Aesthetic, one-piece design.
  • 120" wide, 16 gauge type 304 stainless steel, hand wash trough sink is heavy-duty and has a satin finish, making it easy to clean.

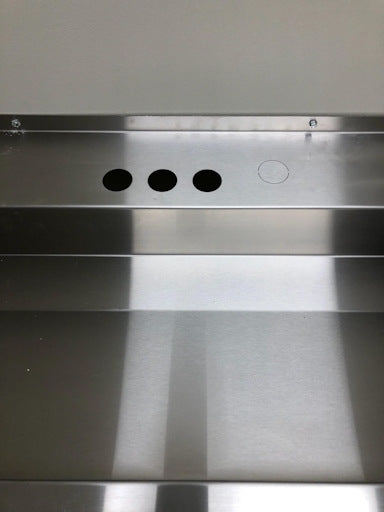

  • The unit comes standard on each station with pre-drilled holes (3) for 4" centerset faucets.
  • Faucet selection is optional - all faucets we offer meet NSF and Lead-Free Standards; all include a 0.5 GPM (1.9 LPM) Flow Control.
  • 1-3/8" knock-out for soap dispenser to be installed, if required.
  • Pre-drilled backsplash return provided for mounting unit to the reinforced wall.
  • Basin is formed to facilitate drainage and is punched to accept a 1-1/2" Drain Assembly.

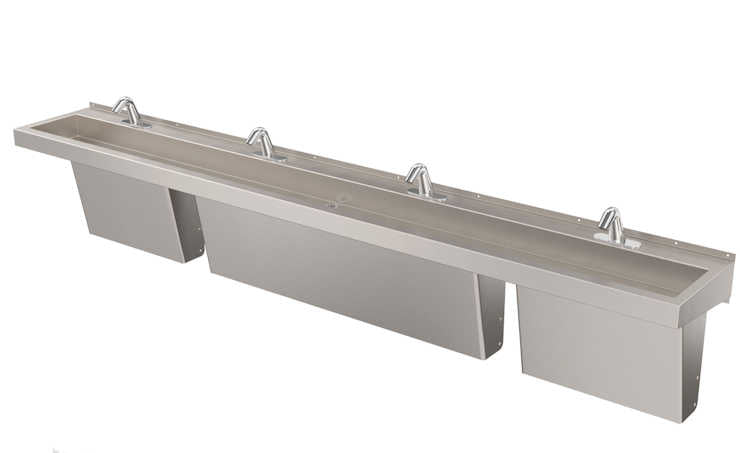

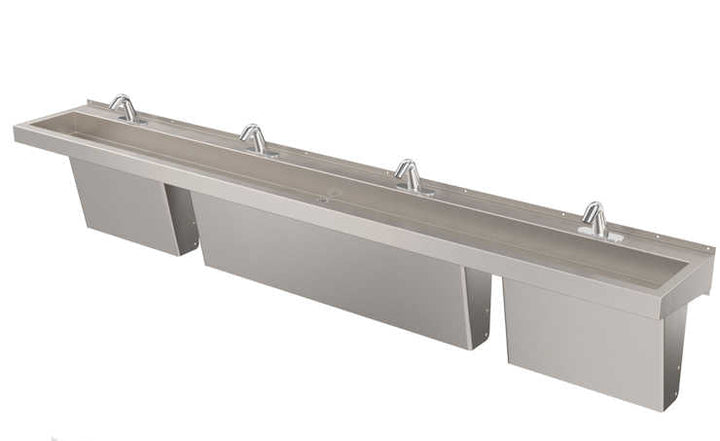

  • Trap cover enclosures are optional and are available in two sizes 24" and 54" to conceal plumbing/soap containers.
  • Complies with UPC/cUPC and ASME A112.19.3.
  • Patent Pending.

Features-

  • Sink Type: Permanent
  • Water Supply: Building Water/Hose Supply
  • Water Drainage: Building Drainage/Hose Waste
  • Sink Assembly: Ships flat in a box - Assembly Required
  • Quick Ship: Ships in 3 Days

Faucets available


Soap available





Shipping calculated at checkout.

Additional Info

Submittal DSW130, DSW260, DSW390, DSW4120 Trough Sink (pdf) The compact design allows for hand washing capabilities even in small spaces, and the units are suitable for both indoor and outdoor use.
Install Guide DSW4120 Sink (pdf) Deluxe Trough Wash-Ware® are convenient, space-saving stainless steel trough sinks that can be equipped with hand washing stations.
