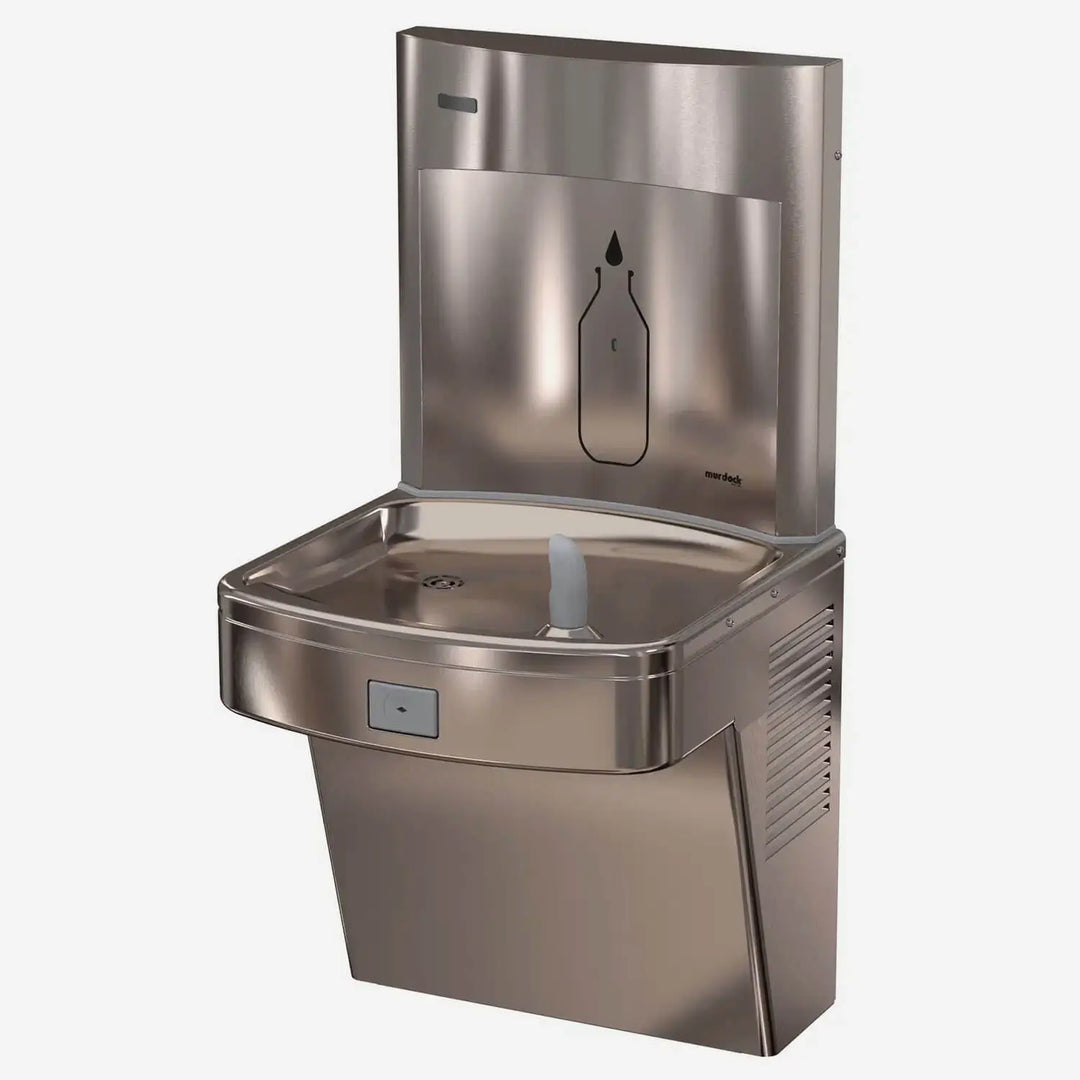

Wall-Mounted, Pushbutton Drinking Fountain with All-Stainless Steel Water Bottle Filling Station - In-Unit Refrigeration (8 GPH), ADA

This indoor water bottle filling station is an eco-friendly alternative to single-use plastic. With a slimmer body and more inviting aesthetics than a traditional bottle filler, it ensures maximum style, functionality, and hydration.

The A171408F-UG-BF12S-BCD-WF3EZ is an ADA-compliant combination drinking fountain and water bottle filling station with in-unit refrigeration. Rough-ins match other manufacturers’ water coolers for easy replacement, and its design makes access and service a breeze.

The Bottle Filler is a stainless steel bottle filler that can be added to enhance any A17 series drinking fountain. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.

Bottle Filler Features

• Heavy-gauge type 304 stainless steel polished to #4 satin finish
• Vandal-resistant, seamless alcove
• ADA compliant
• Touchless sensor operation
• 120V AC/9V DC plug-in transformer for sensor operation
• 1.2 Gallon (4.54 liter) per minute laminar flow nozzle
• 20-second maximum run time
• Bottle counter display with LED illumination and filter status lights (available option for sensor bottle filler)
• The Auto-Purge Sensor function shall activate the Bottle Filler for a 10-second duration 24 hours after the last activation, as standard, and allow for adjustment of the purge cycle. (Optional remote to change intervals available.)
• Rated for indoor use

Option -BCD provides a digital Bottle Counter Display, indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from landfills. The option also displays the Water Filter Status and includes an LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.

Electric Water Cooler Features

• Crisp, chilled water at 8 gallons (30.28 liters) per hour
• Single uncomplicated rectangular mechanical activation button
• Flexible, antimicrobial, non-squirt bubbler
• All-stainless steel
• Child or Adult ADA Compliant when properly installed
• Chiller includes water leak detection, an Auto Shut-off Valve

Water Filter

The Water Cooler features a filter assembly allowing for fast and easy water filter changes without removing the shroud. The filter used in the assembly is compliant with the following:

• NSF 42
  The NSF 42 standard regulates non-health-related contaminant reductions, including reductions in chlorine, taste and odor, chloramine, particulate matter, iron, manganese, zinc, and total dissolved solids (TDS).
• NSF 53
  NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs, and chromium.
• NSF 401
  In addition to NSF 42 and 53, the WF3EZ Filter/Door Assembly provides PFAS Reduction, including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
