Name: Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button
Brand: Murdock Hydration
SKU: M-OBR4
Price: 5045.67 USD
Availability: InStock

Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button

Color

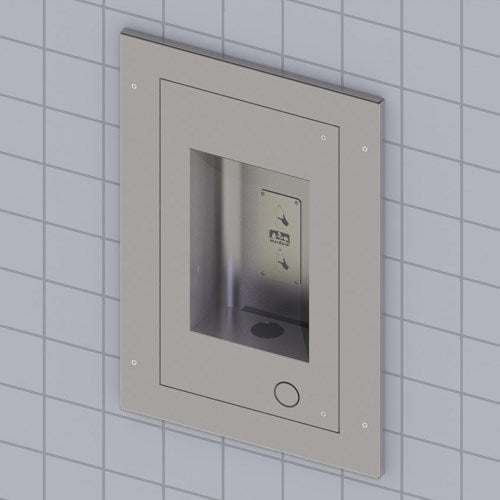

All-Stainless Steel

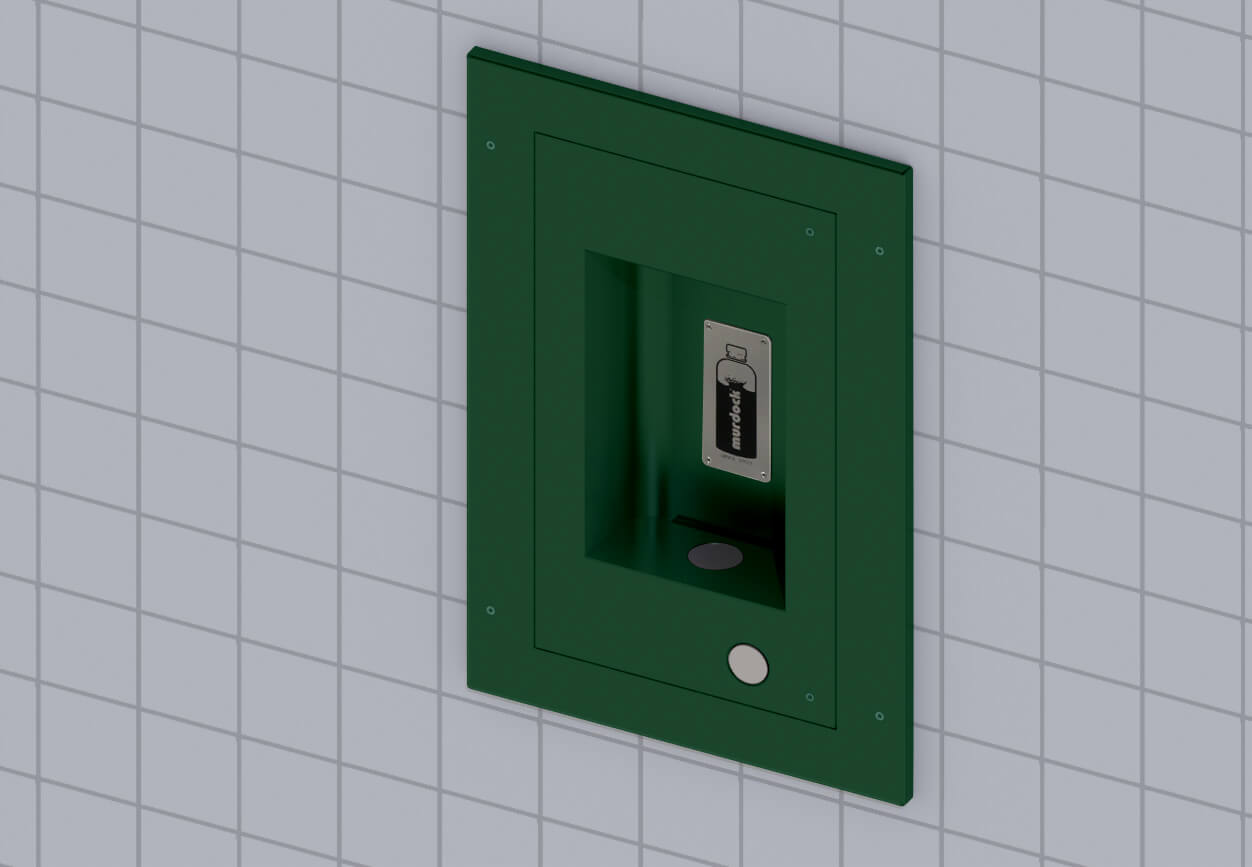

Textured Fairway Green Powder Coat

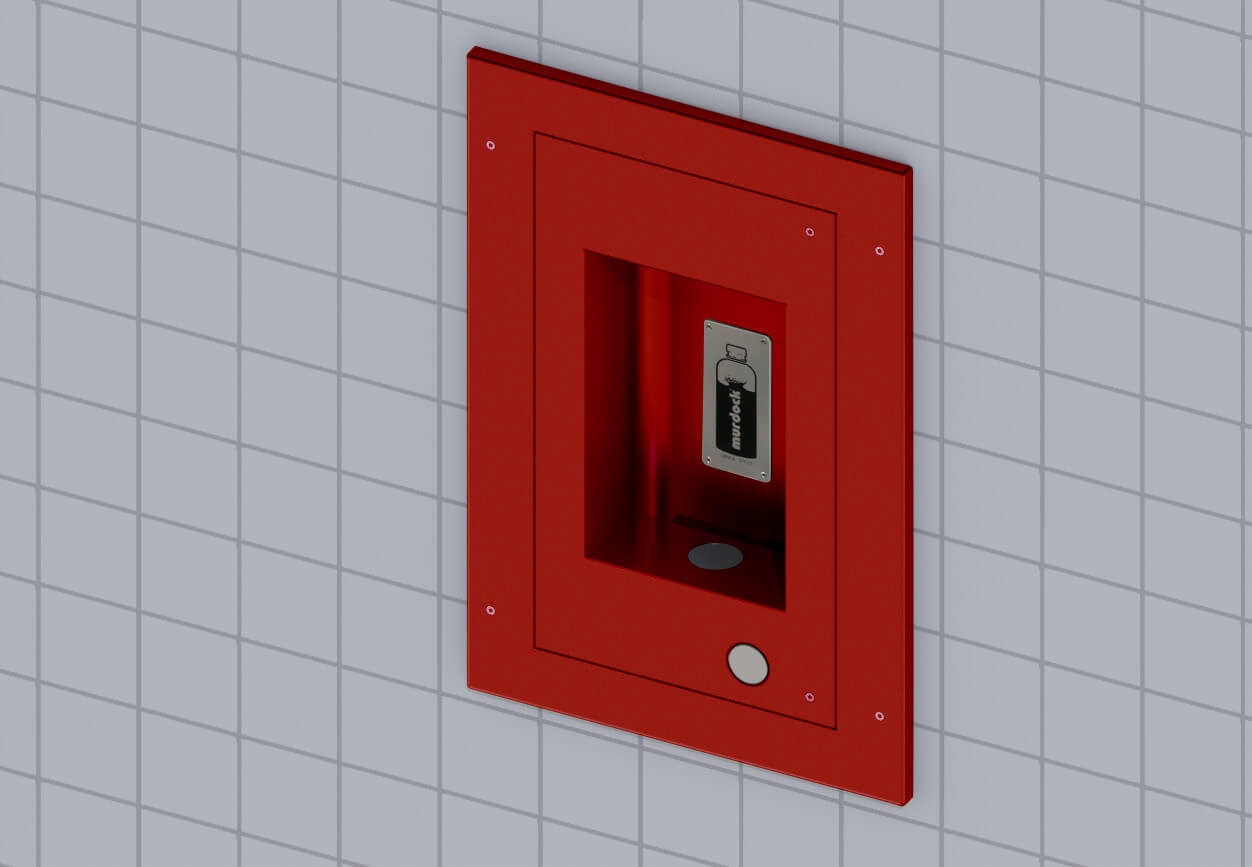

Textured Firehouse Red Powder Coat

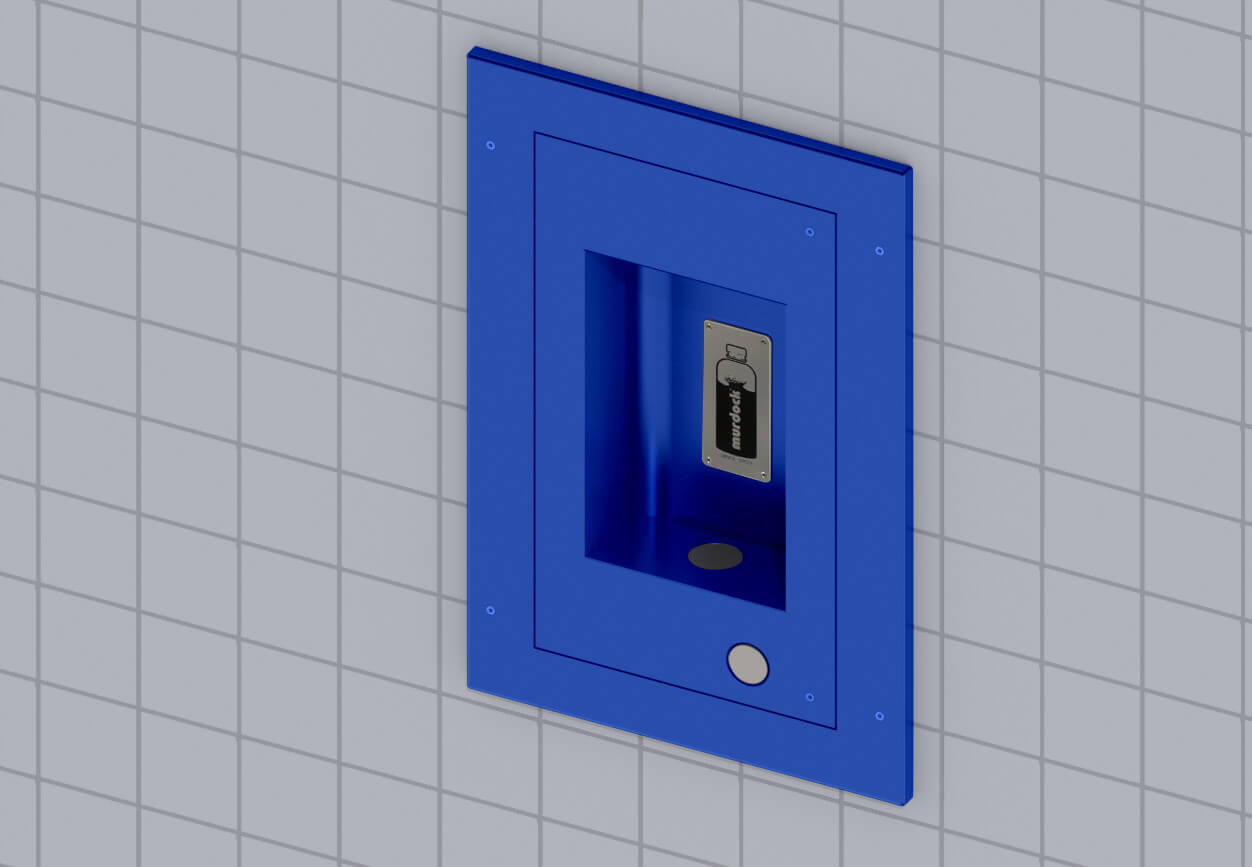

Textured Alpine Blue Powder Coat

Price

Model M-OBR4 is a recessed outdoor bottle filler. The housing has a sleek and trim look that blends into your environment. The unit also has a strong vandal-resistant design for years of trouble-free service. The bottle filler shall be activated by a 9-volt sensor or a pushbutton as standard.

The fixture has a self-closing pushbutton. The button requires less than 5 pounds of force to activate the internally mounted valve. When installed properly, the bottle filler complies with ADA forward and side reach requirements. The bottle filler is fabricated of type 304 stainless steel. Unit complies with ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875, and NSF/ANSI 61, Section 9.

Chilled water can be supplied to the bottle filler using remote chiller A9100080-A.

The chiller must be installed inside the building behind the unit, completely shielded from the elements.

[{"id":50306056159526,"title":"All-Stainless Steel","option1":"All-Stainless Steel","option2":null,"option3":null,"sku":"M-OBR4","requires_shipping":true,"taxable":true,"featured_image":{"id":50279615529254,"product_id":10063014625574,"position":1,"created_at":"2025-03-21T13:55:26-07:00","updated_at":"2025-05-15T11:24:01-07:00","alt":null,"width":500,"height":500,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4.jpg?v=1747333441","variant_ids":[50306056159526]},"available":true,"name":"Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button - All-Stainless Steel","public_title":"All-Stainless Steel","options":["All-Stainless Steel"],"price":504567,"weight":34050,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":41927335215398,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4.jpg?v=1747333441"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":50306056192294,"title":"Textured Fairway Green Powder Coat","option1":"Textured Fairway Green Powder Coat","option2":null,"option3":null,"sku":"M-OBR5","requires_shipping":true,"taxable":true,"featured_image":{"id":50279615594790,"product_id":10063014625574,"position":3,"created_at":"2025-03-21T13:55:26-07:00","updated_at":"2025-05-15T11:24:01-07:00","alt":null,"width":1252,"height":867,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Green.jpg?v=1747333441","variant_ids":[50306056192294]},"available":true,"name":"Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button - Textured Fairway Green Powder Coat","public_title":"Textured Fairway Green Powder Coat","options":["Textured Fairway Green Powder Coat"],"price":504567,"weight":34050,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":41927335280934,"position":3,"preview_image":{"aspect_ratio":1.444,"height":867,"width":1252,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Green.jpg?v=1747333441"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":50306056225062,"title":"Textured Firehouse Red Powder Coat","option1":"Textured Firehouse Red Powder Coat","option2":null,"option3":null,"sku":"M-OBR6","requires_shipping":true,"taxable":true,"featured_image":{"id":50279615660326,"product_id":10063014625574,"position":4,"created_at":"2025-03-21T13:55:26-07:00","updated_at":"2025-05-15T11:24:01-07:00","alt":null,"width":1252,"height":867,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Red.jpg?v=1747333441","variant_ids":[50306056225062]},"available":true,"name":"Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button - Textured Firehouse Red Powder Coat","public_title":"Textured Firehouse Red Powder Coat","options":["Textured Firehouse Red Powder Coat"],"price":504567,"weight":34050,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":41927335346470,"position":4,"preview_image":{"aspect_ratio":1.444,"height":867,"width":1252,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Red.jpg?v=1747333441"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":50306056257830,"title":"Textured Alpine Blue Powder Coat","option1":"Textured Alpine Blue Powder Coat","option2":null,"option3":null,"sku":"M-OBR7","requires_shipping":true,"taxable":true,"featured_image":{"id":50279615693094,"product_id":10063014625574,"position":5,"created_at":"2025-03-21T13:55:26-07:00","updated_at":"2025-05-15T11:24:01-07:00","alt":null,"width":1252,"height":867,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Blue.jpg?v=1747333441","variant_ids":[50306056257830]},"available":true,"name":"Wall Mounted Recessed Bottle Filler with Cover Plate, Sensor and Push Button - Textured Alpine Blue Powder Coat","public_title":"Textured Alpine Blue Powder Coat","options":["Textured Alpine Blue Powder Coat"],"price":504567,"weight":34050,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":41927335379238,"position":5,"preview_image":{"aspect_ratio":1.444,"height":867,"width":1252,"src":"\/\/plumbingspecialities.com\/cdn\/shop\/files\/M-OBR4-Blue.jpg?v=1747333441"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Additional Info

BRAND: Murdock Manufacturing

MATERIAL: Stainless Steel

TYPE OF MOUNT: Recessed

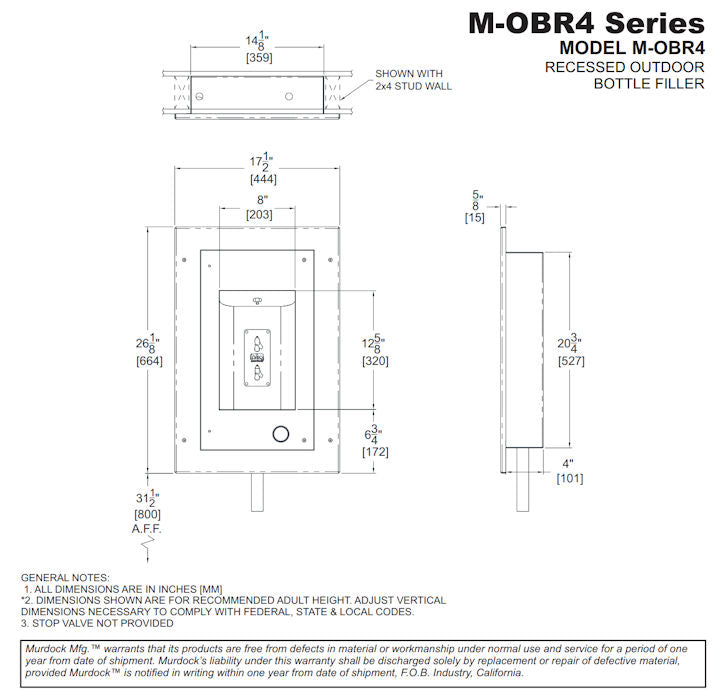

Submittal M-OBR4 Series Bottle Filler (pdf) Recessed Outdoor Bottle Filler [M-OBR4 | All-Stainless Steel; M-OBR5 | Green; M-OBR6 | Red; M-OBR7 | Blue]

Manual M-OBR4 Series Bottle Filler (pdf) Recessed Outdoor Bottle Filler [M-OBR4 | All-Stainless Steel; M-OBR5 | Green; M-OBR6 | Red; M-OBR7 | Blue]
